| Camera | SMD SMD 3.0 |
|---|
| 影像感測器 | 1/2.8" CMOS It triggers the IVS rule when a target is detected and |
|---|
| Auto Patrol | makes the camera link with the PTZ to rotate to the |
|---|
| Pixel | 2 MP position of the target and patrol based on its presets |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Video |
|---|
| ROM | 128 MB H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Video Compression Stream); Smart H.264+; H.264M |
|---|
| RAM | 256 MB |
|---|
| Streaming Capability | 3 streams |
|---|
| Electronic Shutter Speed | 1/1 s–1/30,000 s 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × |
|---|
| 解像度 | 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF |
|---|
| Scanning System | Progressive (352 × 288/352 × 240) |
|---|
| Color: 0.005 lux@F1.6 | Main stream: 1080p/960p/720p (1–25/30 fps) |
|---|
| 最低照度 | B/W: 0.0005 lux@F1.6 Video Frame Rate Sub stream 1: D1/VGA/CIF (1–25/30 fps) 0 lux (IR light on) Sub stream 2: 1080p/960p/720p (1–25/30 fps) |
|---|
| Illumination Distance | 100 m (328.08 ft) (IR) Bit Rate Control CBR; VBR |
|---|
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR H.264: 1792 kbps–8192 kbps Video Bit Rate H.265: 512 kbps–5632 kbps |
|---|
| Illuminator Number | 3 (IR) |
|---|
| Day/Night | Auto (ICR); Color; B/W |
|---|
| 鏡頭 | BLC Yes |
|---|
| 焦距 | 5.0 mm–80.0 mm |
|---|
| WDR | 120 dB |
|---|
| Max. Aperture | F1.6 |
|---|
| HLC | Yes |
|---|
| Field of View | H: 53.9°–4.6°; V: 30.3°–2.6°; D: 60°–5.3° Auto; indoor; outdoor; ATW; manual; sodium lamp; White Balance natural light; street lamp |
|---|
| Optical Zoom | 16× |
|---|
| Gain Control | Auto; manual |
|---|
| Focus Control | Auto; semi-auto; manual |
|---|
| Noise Reduction | 2D NR; 3D NR |
|---|
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
|---|
| Motion Detection | Yes |
|---|
| Iris Control | Fixed |
|---|
| 感興趣區域 ROI | Yes |
|---|
| Detect | Observe Recognize Identify |
|---|
| DORI Distance | Image Stabilization Electronic (EIS) 1,131 m 452 m 226 m 113 m (3,710.63 ft) (1,482.94 ft) (741.47 ft) (370.73 ft) Defog Electronic |
|---|
| PTZ | Digital Zoom 16× Pan: 0° to 360° endless |
|---|
| Pan/Tilt Range | Image Rotation 180° Tilt: –15° to +90°, auto flip 180° |
|---|
| Pan: 0.1°/s–80°/s | Up to 24 areas can be set, with up to 8 areas in the same |
|---|
| Manual Control Speed | Privacy Masking |
|---|
| Tilt: 0.1°/s–80°/s | view |
|---|
| Preset Speed | Pan: 80°/s; Tilt: 80°/s S/N Ratio ≥55 dB |
|---|
| Preset | 300 Audio |
|---|
| Tour | 8 (up to 32 presets per tour) Audio Compression G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
|---|
| Pattern | 5 Network |
|---|
| Scan | 5 Network Port RJ-45 (10/100 Base-T) TCP; FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; |
|---|
| 斷電記憶 | Yes NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; Network Protocol NFS; ICMP; UDP; IGMP; IP Filter; SMB; HTTP; SSL; DHCP; |
|---|
| Idle Motion | Pattern; Preset; Tour SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP |
|---|
| DH-SD | Interoperability CGI; Dahua SDK; API; SDK; ONVIF (Profile S&G&T) Pelco-P/D (auto recognition) |
|---|
| Streaming Method | Unicast; Multicast Tripwire; intrusion; climbing fences; loitering detection; User/Host 20 (total bandwidth: 64 M) abandoned/missing object; fast moving; parking |
|---|
| IVS (Perimeter Protection) | Storage FTP; Micro SD card (512 GB); NAS detection; people gathering; vehicle/human alarm classification www.dahuasecurity.com |
|---|
| IE 7 and later versions | Ordering Information Chrome |
|---|
| Firefox | Type Part Number Description Safari 2MP 16x Starlight IR Network PTZ |
|---|
| Management Software | DSS Pro DH-SD49216DB-HNY 2M Camera |
|---|
| Mobile Client | iPhone; iPad; iOS; Android 2MP 16x Starlight IR Network PTZ SD49216DB-HNY |
|---|
| PFB305W | Wall Mount Bracket CE: EN55032/EN55024/EN50130-4 |
|---|
| FCC: Part15 subpartB, ANSI C63.4-2014 | DC12V/3A Power Adapter |
|---|
| Port | PFA120 Mount Adapter |
|---|
| 音訊輸入 | 1 channel (LINE IN, bare wire) PFA111 Mount Adapter |
|---|
| 音訊輸出 | 1 channel (LINE OUT, bare wire) PFB300C Ceiling Mount Bracket Accessories |
|---|
| Alarm I/O | 2/1 |
|---|
| PFB301C | Ceiling Mount Bracket |
|---|
| Audio I/O | 1/1 |
|---|
| PFA151 | Corner �ount Bracket Capture; preset; tour; pattern; recording; alarm digital |
|---|
| Alarm Linkage | PFB303S Parapet Mount Bracket input; audio; send email Motion/Tampering detection; audio detection; network PFB301S-E Plane Mount Bracket disconnection detection; IP conflict detection; memory card state detection; memory space detection; power PFA150 Pole Mount Bracket exception detection Accessories 12 VDC, 3 A (± 10%) PoE (802.3at) Included: Basic: 12 W Max.: 20 W (IR light) |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 工作濕度 | ≤95% PFB305W IP66; TVS 6000 V lightning proof; surge protection; Wall Mount Bracket voltage transient protection |
|---|
| Structure | Optional: |
|---|

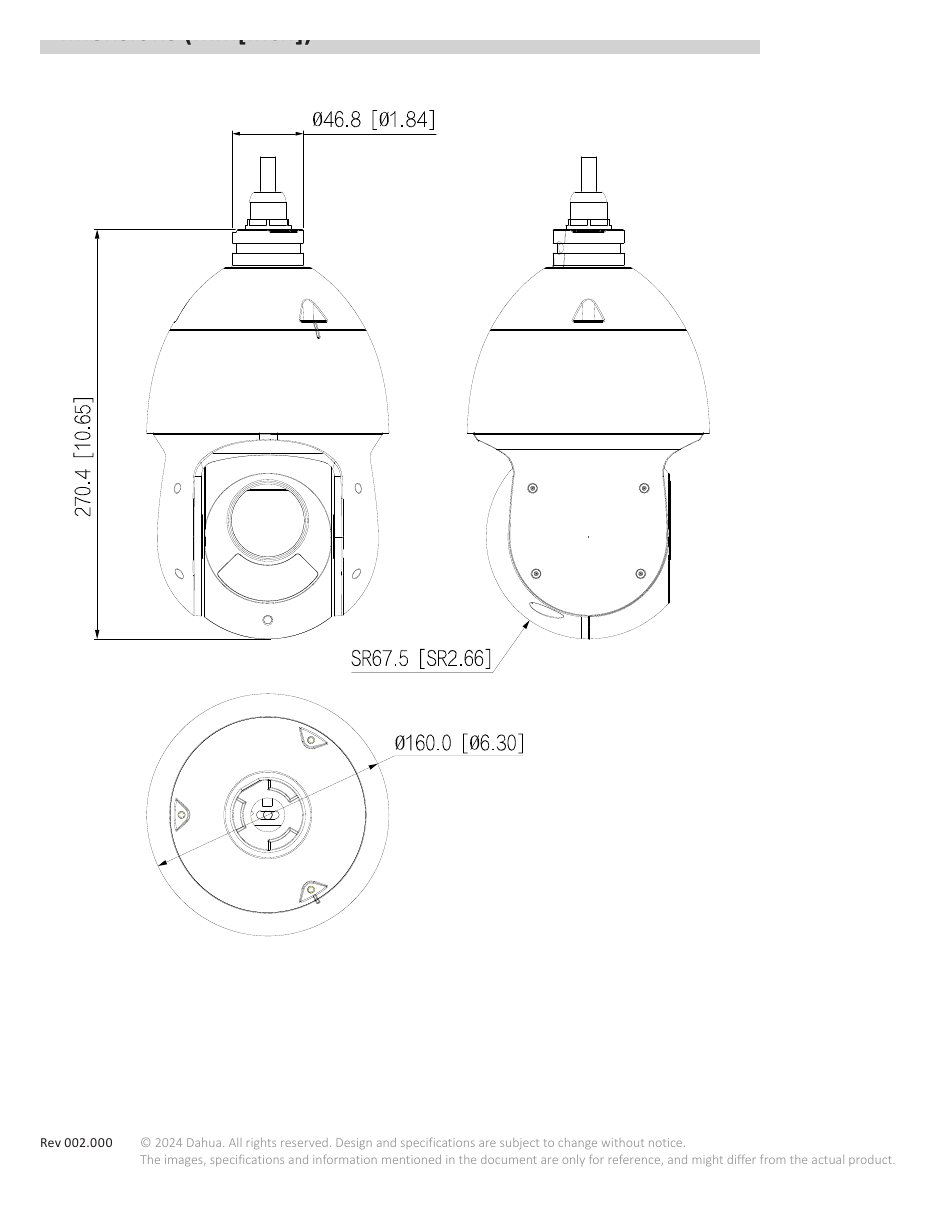

| Product Dimensions | 270.4 mm × Φ160.0 mm (10.65" × Φ6.30") |
|---|
| 淨重 | 2.4 kg (5.29 lb) |
|---|
| 毛重 | 3.9 kg (8.60 lb) |
|---|
| DC12V/3A | PFA120 PFA111 |
|---|
| Power Adapter | Mount Adapter Mount Adapter |
|---|
| PFB300C | PFB301C PFA151 |
|---|
| Ceiling Mount Bracket | Ceiling Mount Bracket Corner mount Bracket |
|---|
| PFB303S | PFB301S-E PFA150 |
|---|
| Parapet Mount Bracket | Plane Mount Bracket Pole Mount Bracket www.dahuasecurity.com |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
