DAHUA SD49225XA-HNR-S2-S0 CCTV攝影機安裝・保養

Name: DAHUA SD49225XA-HNR-S2-S0 DH-SD49225XA-HNR-S2
Brand: dahua
SKU: SD49225XA-HNR-S2-S0

產品簡介

dahua SD49225XA-HNR-S2-S0 為DH-SD49225XA-HNR-S2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SD49225XA-HNR-S2-S0 香港價格連安裝報價。

Technical Speciﬁcation：Face Detection Yes
Camera：SMD PLUS Yes
影像感測器：1/2.8" CMOS Video
Pixel：2 MP Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; Comp
最大解像度：1920 (H) × 1080 (V)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SD49225XA-HNR-S2-S0 dahua DH-SD49225XA-HNR-S2 產品圖片

詳細規格

Technical Speciﬁcation	Face Detection Yes
Camera	SMD PLUS Yes
影像感測器	1/2.8" CMOS Video
Pixel	2 MP Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; Compression H.264H; MJPEG (Sub Stream)
最大解像度	1920 (H) × 1080 (V)
Streaming Capability	3 streams
ROM	256 MB 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×
解像度	720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 ×
RAM	1 GB 240)
Electronic Shutter Speed	1/1 s–1/30000 s Main stream: 1080p/1.3 M/720p (1–50/60 fps)
Frame Rate	Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1.3M/720p/D1/CIF (1–25/30 fps)
Scanning System	Progressive
Color: 0.005 lux@F1.6	Bit Rate Control CBR; VBR
最低照度	B/W: 0.0005 lux@F1.6 Default resolution of the main stream: 0 lux (IR light on)
Bit Rate	H.264: 32 Kbps–8192 Kbps H.265: 32 Kbps–8192 Kbps
Illumination Distance	100 m (328.08 ft)
Day/Night	Auto (ICR); Color; B/W
Illuminator On/Off Control	Zoom Prio; Manual; Smart IR; Off
BLC	Yes
Illuminator Number	6 (IR light)
WDR	120 dB
HLC	Yes
焦距	4.8 mm–120 mm Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp;
Max. Aperture	F1.6–F3.5 White Balance Natural Light; Street Lamp
Field of View	H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9° Gain Control Auto; Manual
Optical Zoom	25x Noise Reduction 2D NR; 3D NR
Focus Control	Auto; Semi-Auto; Manual Motion Detection Yes
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft) Region of Interest (RoI) Yes
Iris Control	Auto; Manual Defog Electronic
Detect	Observe Recognize Identify Flip 180° 1655 m 654 m 331 m 165 m Privacy Masking Up to 24 areas, and up to 8 areas in the same view (5429.79 ft) (2145.67 ft) (1085.96 ft) (541.34 ft)
S/N Ratio	≥ 55 dB
Pan: 0° to 360° endless	Audio Tilt: –15° to +90°, auto flip 180°
Compression	G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1
Manual Control Speed	Pan: 0.1°–200°/sTilt: 0.1°–120°/s
Preset Speed	Pan: 240°/s; Tilt: 200°/s
Ethernet	RJ-45 (10/100 Base-T)
Preset	300 HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMP
Tour	8 (up to 32 presets per tour) Protocol v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Pattern	5
Interoperability	ONVIF (Profile S&G&T); CGI
Scan	5
Streaming Method	Unicast; Multicast
Speed Adjustment	Yes
用戶管理	20 (total bandwidth: 64 MB)
斷電記憶	Yes
Storage	Imou Cloud; FTP; Micro SD card (max. 512 GB); NAS
Idle Motion	Preset; Pattern; Tour; Scan
Browser	IE7 and later versions; Chrome; Firefox; Safari
Protocol	DH-SDPelco-P/D (auto recognition)
Management Software	DMSS; DSS Pro
Mobile Phone	IOS; Android Tripwire and intrusion. Support alarm triggering by target
IVS (Perimeter Protection)	types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. www.dahuasecurity.com
Certification	Ordering Information CE: EN55032/EN55024/EN50130-4
Certifications	FCC: Part15 subpartB, ANSI C63.4-2014 Type Part Number Description UL: UL60950-1+CAN/CSA C22.2, No. 60950-1 2MP 25x Starlight IR WizSense DH-SD49225XA-HNR-S2
Port	Network PTZ Camera, PAL
音訊輸入	1 2MP 25x Starlight IR WizSense DH-SD49225XAN-HNR-S2 Network PTZ Camera, NTSC 2MP PTZ
音訊輸出	1 Camera 2MP 25x Starlight IR WizSense SD49225XA-HNR-S2 Network PTZ Camera, PAL
警報輸入	2 (on-off value input: 0–5 VDC) 2MP 25x Starlight IR WizSense SD49225XAN-HNR-S2
警報輸出	1 Network PTZ Camera, NTSC Capture; preset; tour; pattern; recording; triggering on- PFB305W Wall Mount Bracket off value output; audio; sending email
PFA111	Mount Adapter Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder
Alarm Event	DC12V/3A Power Adapter state detection; memory card state detection; memory space detection; power exception detection
PFA140	Power Box
供電	Accessories PFB300C Ceiling Mount Bracket 12 VDC/3A±10%
Basic: 9W	PFA150 Pole Mount Bracket Max.: 23W
PFA151	Corner Mount Bracket
PFB303S	Parapet Mount Bracket
工作溫度	–40°C to +70°C (–40°F to +158°F)
工作濕度	≤ 95% IP66; TVS 6000V lightning proof; surge protection; Accessories voltage transient protection Included:
Casing	Aluminum alloy ADC12
尺寸	269.9mm × Φ160 mm (11.61" × Φ6.30")
淨重	3 kg (6.61 lb)
毛重	4.2 kg (9.26 lb) PFB305W Wall Mount Bracket Optional:
Mount Adapter	Power Adapter Power Box
PFB300C	PFA120 PFA150
Ceiling Mount	Water-proof Pole Mount
Bracket	Junction Box Bracket www.dahuasecurity.com Dimensions (mm[inch])
Corner Mount	Parapet Mount
Rev 002.000	© 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

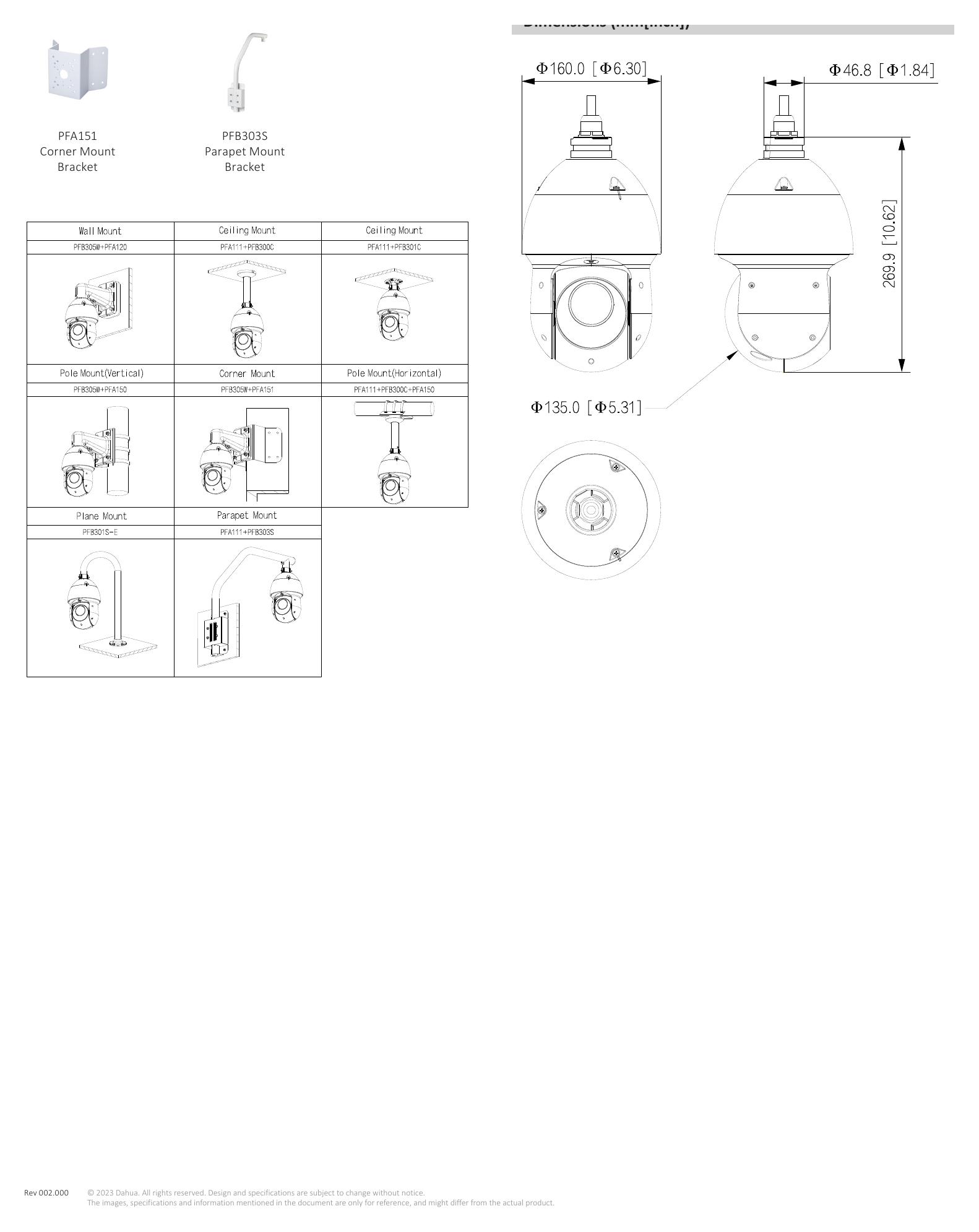

外形尺寸

269.9mm × Φ160 mm (11.61" × Φ6.30")｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，SD49225XA-HNR-S2-S0 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

SD49225XA-HNR-S2-S0 dahua DH-SD49225XA-HNR-S2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

常見問題

SD49225XA-HNR-S2-S0 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，SD49225XA-HNR-S2-S0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

SD49225XA-HNR-S2-S0 定 PFR4K-E120 邊個好？

兩者主要規格分別：淨重方面，SD49225XA-HNR-S2-S0 係 3 kg (6.61 lb)，PFR4K-E120 係 1.7 kg (2.20 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PFR4K-E120 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
