| Camera | Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Sub stream2: 1080P/1.3M/720P (1 ~ 25/30fps) |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Bit Rate Control CBR/VBR |
|---|
| Scanning System | Progressive Bit Rate H.265/H.264: 256K ~ 8192Kbps |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Day/Night Auto(ICR) / Color / B/W |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Backlight Compensation BLC / HLC / WDR(120dB) |
|---|
| S/N Ratio | More than 55dB White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| IR Distance | N/A Gain Control Auto / Manual |
|---|
| IR On/Off Control | N/A Noise Reduction Ultra DNR (2D/3D) |
|---|
| IR LEDs | N/A Motion Detection Support |
|---|
| 鏡頭 | Region of Interest Support |
|---|
| 焦距 | 4.5mm~135mm Electronic Image Stabilization Support (EIS) |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| 除霧 | Support |
|---|
| Angle of View | H: 67.8° ~ 2.4° |
|---|
| Digital Zoom | 16x |
|---|
| Optical Zoom | 30x |
|---|
| Flip | 180° |
|---|
| Focus Control | Auto/Manual |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Compression | G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2 |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -35° ~ 90°,auto flip 180° |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
|---|
| Wifi | Support |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Interoperability ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after Streaming Method Unicast / Multicast Power up Action power failure |
|---|
| Max. User Access | 20 users Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, DMSS Motion detection, Video tampering , Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address Smart Phone IOS, Android conflict, Illegal Access, Storage anomaly Certifications |
|---|
| Education Auto Tracking | Support CE: EN55032/EN55024/EN50130-4 |
|---|
| IVS | Tripwire, Intrusion, Abandoned/Missing Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|---|
| Advanced Intelligent Functions | Face Detection, Heat Map |
|---|
| Video Interface | HD-SDI, HD-CVI, DVI, HDMI, VGA, CVBS, RJ45 |
|---|
| Audio Interface | 1/1 line in/line out, Built-in Mic |
|---|
| Streaming Capability | 3 Streams |
|---|
| RS485 | 1 1080P(1920×1080)/1.3M(1280x960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) Alarm I/O 2/1 www.dahuasecurity.com |
|---|
| Electrical | Dimensions (mm) |
|---|
| 供電 | DC12V/2A(±10%), PoE+(802.3at) |
|---|
| 功耗 | 14W Environmental |
|---|
| Operating Conditions | -20°C ~ 60°C (-4°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ164(mm)×216(mm) |
|---|

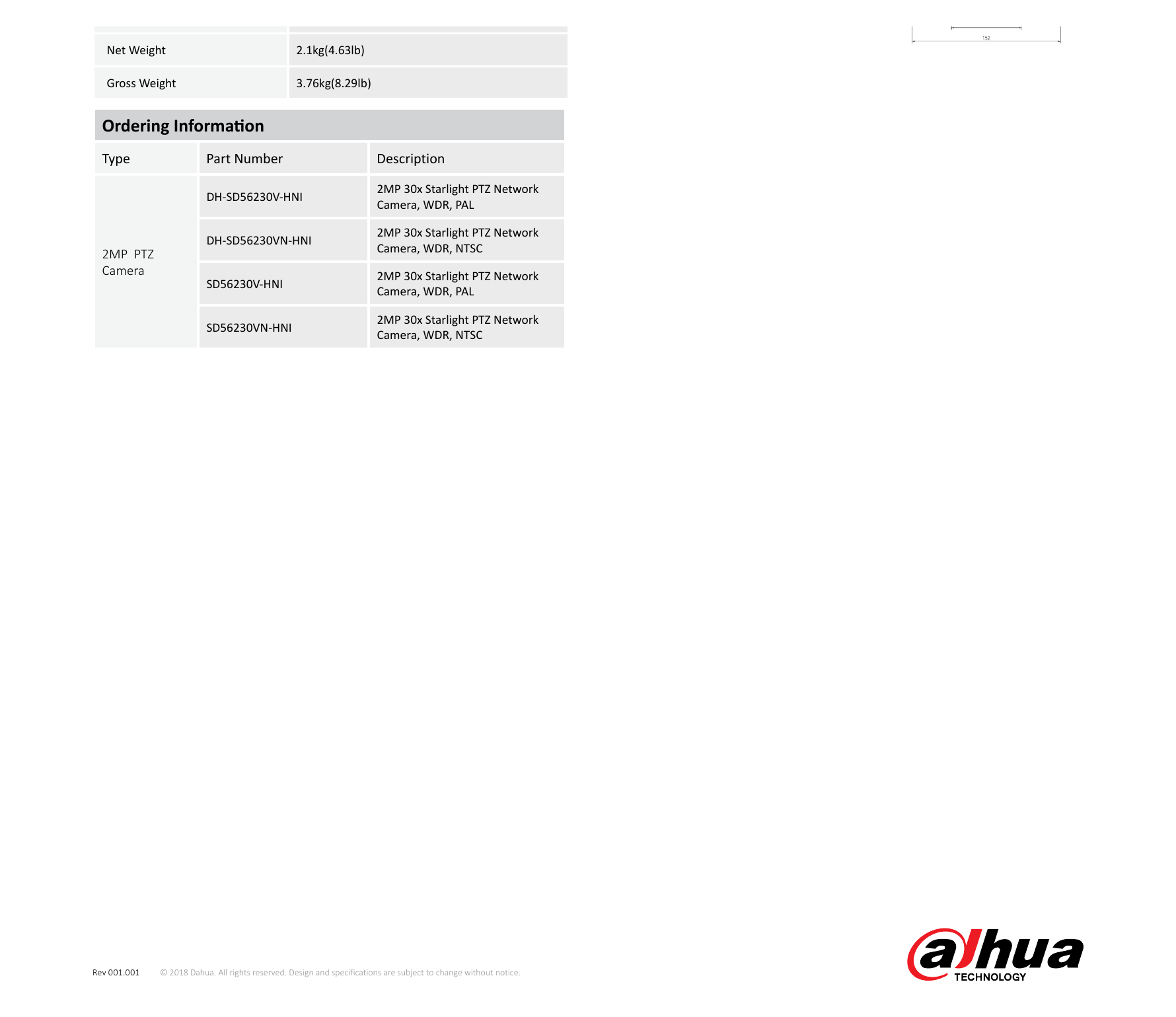

| 淨重 | 2.1kg(4.63lb) |
|---|
| 毛重 | 3.76kg(8.29lb) Ordering Information |
|---|
| 類型 | Part Number Description 2MP 30x Starlight PTZ Network DH-SD56230V-HNI Camera, WDR, PAL 2MP 30x Starlight PTZ Network DH-SD56230VN-HNI 2MP PTZ Camera, WDR, NTSC |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
