dahua SD5A232XB-HNR 為DH-SD5A232XB-HNR，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SD5A232XB-HNR 香港價格連安裝報價。
| Camera | lights, etc. |
|---|---|
| 影像感測器 | 1/2.8" CMOS Face Detection Yes |
| Pixel | 2 MP Auto Tracking Yes |
| 最大解像度 | 1920 (H) × 1080 (V) SMD PLUS Yes |
| ROM | 4 GB Video |
| RAM | 1 GB Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; Video Compression H.264H; MJPEG (Sub Stream) |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Streaming Capability | 3 streams |
| Scanning System | Progressive 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × Resolution |
| Color: 0.005 lux@F1.6 | 720); D1 (704 × 576); CIF (352 × 288) |
| 最低照度 | B/W: 0.0005 lux@F1.6 0 lux (IR light on) Main stream: 2M/1.3M/720p (1–50/60 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF (1–25/30 fps) |
| Illumination Distance | 150 m (492.13 ft) (IR) Sub stream 2: 2M/1.3M/720p (1–25/30 fps) |
| Illuminator On/Off Control | Zoom Prio; Manual; SmartIR Bit Rate Control CBR; VBR H.264: 3 kbps–20480 kbps |
| Illuminator Number | 4 (IR) Video Bit Rate H.265: 3 kbps–20480 kbps |
| 鏡頭 | Day/Night Auto (ICR); Color; B/W |
| 焦距 | 4.8 mm–154 mm BLC Yes |
| Max. Aperture | F1.6–F4.0 WDR 120 dB |
| Field of View | H: 58.44°–3.04°; V: 33.45°–1.71°; D: 66.45°–3.49° HLC Yes |
| Optical Zoom | 32× Auto; indoor; outdoor; tracking; manual; sodium lamp; White Balance natural light; street lamp |
| Focus Control | Auto; Semi-auto; Manual |
| Gain Control | Auto; Manual |
| Close Focus Distance | 0.8 m–5.0 m (2.62 ft–16.40 ft) |
| Noise Reduction | 2D NR; 3D NR |
| Iris Control | Auto; Manual |
| Motion Detection | Yes |
| Detect | Observe Recognize Identify |
| 感興趣區域 ROI | Yes 2,124 m 839 m 425 m 212 m (6,968.50 ft) (2,752.62 ft) (1,394.36 ft) (695.54 ft) Image Stabilization EIS |
| PTZ | Defog Electronic Pan: 0° to 360° endless |
| Pan/Tilt Range | Digital Zoom 16× Tilt: –15° to +90°, auto flip 180° |
| Pan: 0.1°–300°/s | Image Rotation 180° Tilt: 0.1°–200°/s Up to 24 areas can be set, with up to 8 areas in the Privacy Masking |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s same view |
| Preset | 300 S/N Ratio ≥ 55 dB |
| Tour | 8 (up to 32 presets per tour) Audio G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; |
| Pattern | 5 Audio Compression G729; G723 |
| Scan | 5 |
| 斷電記憶 | Yes Network Port RJ-45 (10/100 Base-T) |
| Idle Motion | Preset; Pattern; Tour; Scan HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; |
| DH-SD | Network Protocol |
| PTZ Protocol | SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; |
| Pelco-P/D (auto recognition) | PPPoE; RTMP; TCP |
| Intelligence | Interoperability ONVIF Profile S&G&T; CGI Support human, motor vehicle and non-motor vehicle |
| Smart Capture | Streaming Method Unicast; Multicast image capture. www.dahuasecurity.com |
| 用戶管理 | 20 (total bandwidth: 64 M) Ordering Information |
| Storage | FTP; Micro SD card (512 GB); NAS Type Model Description |
| IE: IE7 and later | 2M 2MP 32x Starlight IR WizSense Network PTZ |
| Chrome: 42 and earlier | DH-SD5A232XB-HNR |
| Browser | WizSense Camera Firefox: 52 and earlier |
| Safari | 2MP 32x Starlight IR WizSense Network PTZ |
| PTZ Camera | SD5A232XB-HNR |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| PFB305W | Wall Mount Bracket |
| Mobile Client | iOS; Android |
| DC24V/2.5A | Power Adapter |
| PFA111 | Mount Adapter CE-LVD: EN 62368-1 CE-EMC: EN55032: 2015/EN61000-3-2; 2019/ |
| PFA140 | Power Box EN61000-3-3: 2013+A1: 2019 |
| Certifications | /EN50130-4: 2011/A1: 2014/EN55024: 2010/A1: 2015/ Accessories |
| EN55035: 2017 | PFB300C Ceiling Mount Bracket FCC: CFR 47 FCC Part15, Subpart B |
| UL: UL60950-1+CAN/CSA C22.2, No.60950-1 | PFA120 Junction Box |
| Port | PFA150 Pole Mount Bracket |
| 雙向語音 | Yes PFA151 Corner Mount Bracket Capture; preset; tour; pattern; recording; triggering PFB303S Parapet Mount Bracket on-off value output; audio; sending email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space Accessories detection; power exception detection |
| Alarm I/O | 2/1 Included: |
| Audio I/O | 1/1 24 VDC, 2.5 A (± 25%) PFB305W DC24V/2.5A |
| PoE+ (802.3at) | Wall Mount Bracket Power Adapter Basic: 13 W Max.: 22 W (illuminator + PTZ working) Optional: |
| 工作溫度 | –40 °C to +70 °C (–40 °F to +158 °F) |
| 工作濕度 | ≤ 95% IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Mount Adapter | Power Box Ceiling Mount Bracket |
| Product Dimensions | 331.9 mm × Φ190.4 mm (13.07" × Φ7.50") |
| 淨重 | 4.7 kg (10.36 lb) |
| 毛重 | 8 kg (17.64 lb) |
| PFA120 | PFA150 PFA151 |
| Junction Box | Pole Mount Bracket Corner Mount Bracket PFB303S Parapet Mount Bracket www.dahuasecurity.com |
| Wall Mount | Ceiling Mount Ceiling Mount |
| PFB305W+PFA120 | PFA111+PFB300C PFA111+PFB301C |
| Pole Mount(Vertical) | Corner Mount Pole Mount(Horizontal) |
| PFB305W+PFA150 | PFB305W+PFA151 PFA111+PFB300C+PFA150 Dimensions (mm[inch]) Φ46.8 [Φ1.84] Φ190.4 [Φ7.50] SR77.0 [SR3.03] |
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

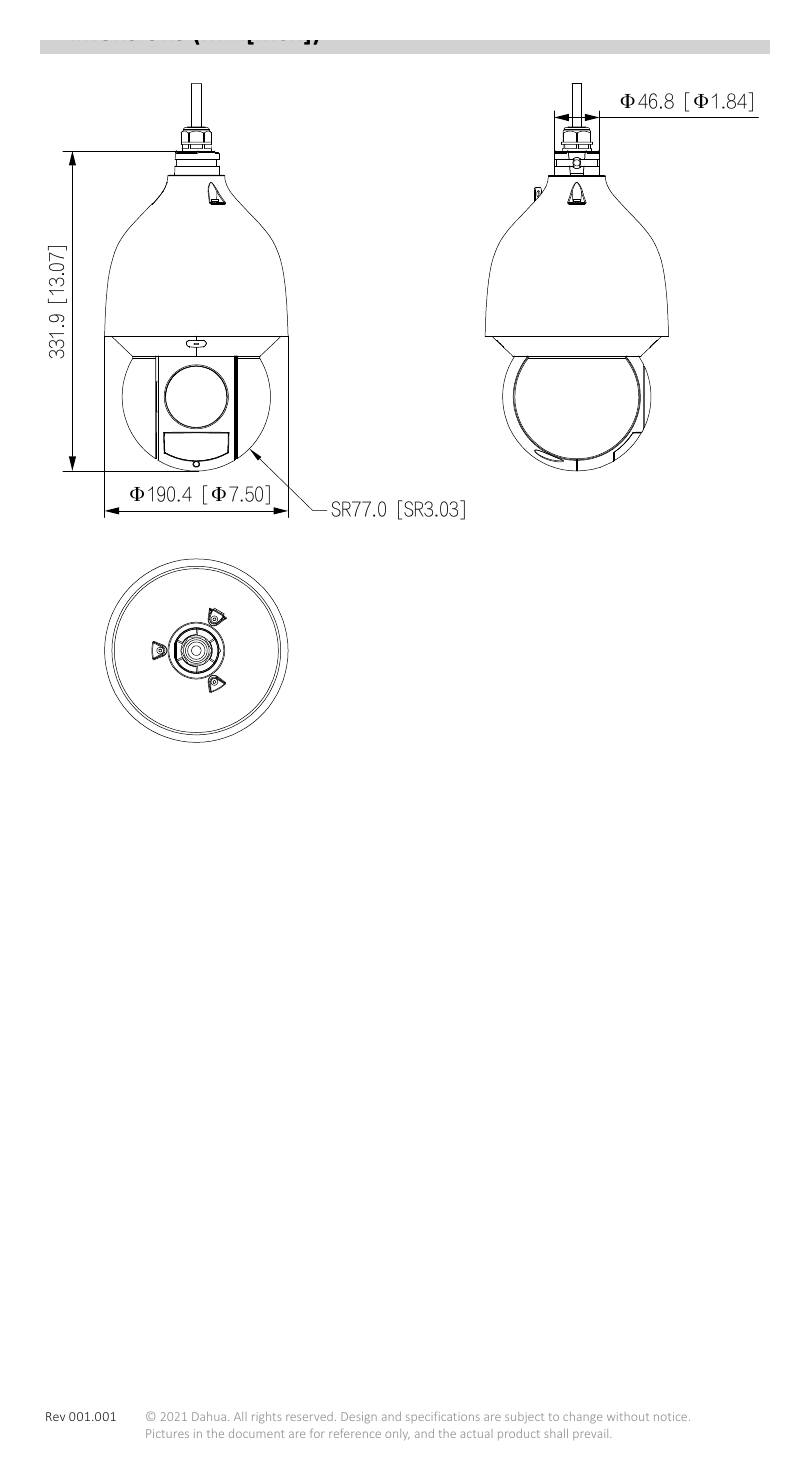

詳見圖示｜Unit: mm
SD5A232XB-HNR dahua DH-SD5A232XB-HNR亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，SD5A232XB-HNR 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：工作溫度方面，SD5A232XB-HNR 係 –40 °C to +70 °C (–40 °F to +158 °F)，PFR4K-E120 係 –40°C to +70°C (–40°F to +158°F)；淨重方面，SD5A232XB-HNR 係 4.7 kg (10.36 lb)，PFR4K-E120 係 1.7 kg (2.20 lb)；毛重方面，SD5A232XB-HNR 係 8 kg (17.64 lb)，PFR4K-E120 係 2.2 kg (4.85 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PFR4K-E120 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
