| Camera | Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| RAM/ROM | 512M/128M Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/1.3M(1280×960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/1.3M/720P(1~50/60fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 55dB Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps) |
|---|
| IR Distance | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 4.5mm~135mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 67.8° ~ 2.4° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 30x |
|---|
| Motion Detection | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization Support (EIS) DORI Distance |
|---|
| 除霧 | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Digital Zoom 16x sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 1862m(6109ft) 744m(2441ft) 372m(1220ft) 186m(610ft) Audio |
|---|
| PTZ | Compression G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Preset Speed | Pan: 600° /s; Tilt: 500° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, |
|---|
| 預置位 | 300 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Interoperability ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Streaming Method Unicast / Multicast Auto restore to previous PTZ and lens status after Max. User Access 20 users Power up Action power failure NAS (Network Attached Storage),Local PC for Edge Storage Activate Preset/ Scan/ Tour/ Pattern if there is no instant recording, Micro SD card 256GB Idle Motion command in the specified period |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Management Software | Smart PSS, DSS, DMSS Intelligence |
|---|
| Smart Phone | IOS, Android Motion detection, Video tampering , Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address Certifications conflict, Illegal Access, Storage anomaly CE: EN55032/EN55024/EN50130-4 |
|---|
| Auto Tracking | Support Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 www.dahuasecurity.com Wall Mount |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) PFB303W-SL+PFA120-SL |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 Electrical |
|---|
| 供電 | AC24V/3A(±25%), PoE+(802.3at) |
|---|
| 功耗 | 13W, 20W (Heater on) Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP68 |
|---|
| Vandal Resistance | IK10 Construction Dimensions (mm) |
|---|
| Casing | 316L stainless steel |
|---|

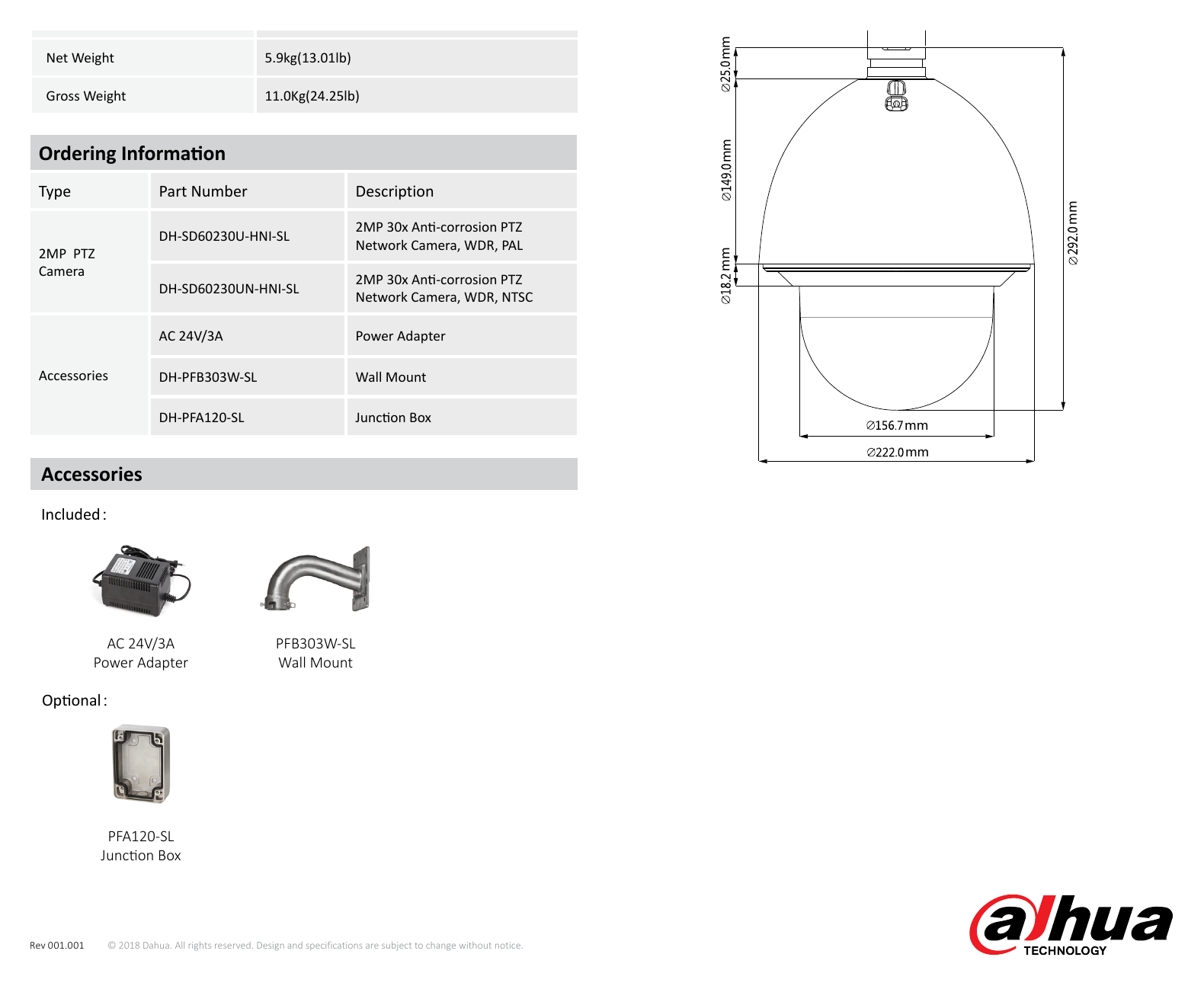

| 尺寸 | Φ222(mm) x 292(mm) mm |
|---|
| 淨重 | 5.9kg(13.01lb) |
|---|
| 毛重 | 11.0Kg(24.25lb) Ordering Information |
|---|
| 類型 | Part Number Description 2MP 30x Anti-corrosion PTZ DH-SD60230U-HNI-SL Network Camera, WDR, PAL 2MP PTZ 2MP 30x Anti-corrosion PTZ DH-SD60230UN-HNI-SL Network Camera, WDR, NTSC |
|---|
| AC 24V/3A | Power Adapter |
|---|
| Accessories | DH-PFB303W-SL Wall Mount |
|---|
| DH-PFA120-SL | Junction Box Accessories Included： |
|---|
| Power Adapter | Wall Mount Optional： PFA120-SL Junction Box |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
