| Camera | IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| 影像感測器 | 1/1.8" CMOS Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Video |
|---|
| RAM/ROM | 1024M/64M Compression H.264 / MJPEG |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) |
|---|
| Minimum Illumination | Color: 0.002Lux@F1.5; B/W:0.0002Lux@F1.5 Main stream: 1080P(1~25/30fps), 720P(1~50/60fps) |
|---|
| IR Distance | N/A |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR On/Off Control | N/A Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps) |
|---|
| IR LEDs | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Bit Rate | H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| 焦距 | 6mm~180mm |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Max. Aperture | F1.5~ F4.3 |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| Angle of View | H: 61.2° ~ 2.1° |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Optical Zoom | 30x |
|---|
| Gain Control | Auto / Manual |
|---|
| Focus Control | Auto/Manual |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Motion Detection | Support DORI Distance |
|---|
| Region of Interest | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Electronic Image Stabilization sensor specification and lab test result according to EN 62676-4 which defines the Support (EIS) criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 除霧 | Support |
|---|
| Detect | Observe Recognize Identify |
|---|
| Digital Zoom | 16x 1920m(6299ft） 768m（2520ft) 384m(1260ft) 192m(630ft) |
|---|
| Flip | 180° |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s |
|---|
| Compression | G.711a/G.711mu/G.726/AAC |
|---|
| Preset Speed | Pan: 600° /s; Tilt: 500° /s |
|---|
| 預置位 | 300 Network |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Ethernet RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x Auto restore to previous PTZ and lens status after Power up Action power failure |
|---|
| Interoperability | ONVIF Profile S&G, API Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | Streaming Method Unicast / Multicast command in the specified period |
|---|
| Intelligence | Edge Storage Local PC for instant recording, Micro SD card 128GB |
|---|
| Motion detection, Video tampering , Scene | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| conflict, Illegal Access, Storage anomaly | Management Software Smart PSS, DSS, DMSS |
|---|
| Smart Phone | IOS, Android www.dahuasecurity.com |
|---|
| Certifications | Accessories |
|---|
| CE: EN55032/EN55024/EN50130-4 | Included: |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| RS485 | 1 PFB303W PFA111 AC24V/3A |
|---|
| Wall Mount | Mount Adapter Power Adapter |
|---|
| Audio I/O | 1/1 Optional： |
|---|
| Alarm I/O | 7/2 Electrical |
|---|
| 供電 | AC24V/3A(±25%), PoE+(802.3at) AC24V: 22W/ Max.43W (Heater on) Power Consumption |
|---|
| PoE+(802.3at): 20W | PFA140 PFB300C PFA120 |
|---|
| Power Box | Ceiling Mount Junction Box Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 |
|---|
| Construction | PFA150 PFA151 PFB303S |
|---|
| Pole Mount | Corner Mount Parapet Mount |
|---|
| Casing | Metal |
|---|
| Ceiling Mount | Juncon Mount |
|---|

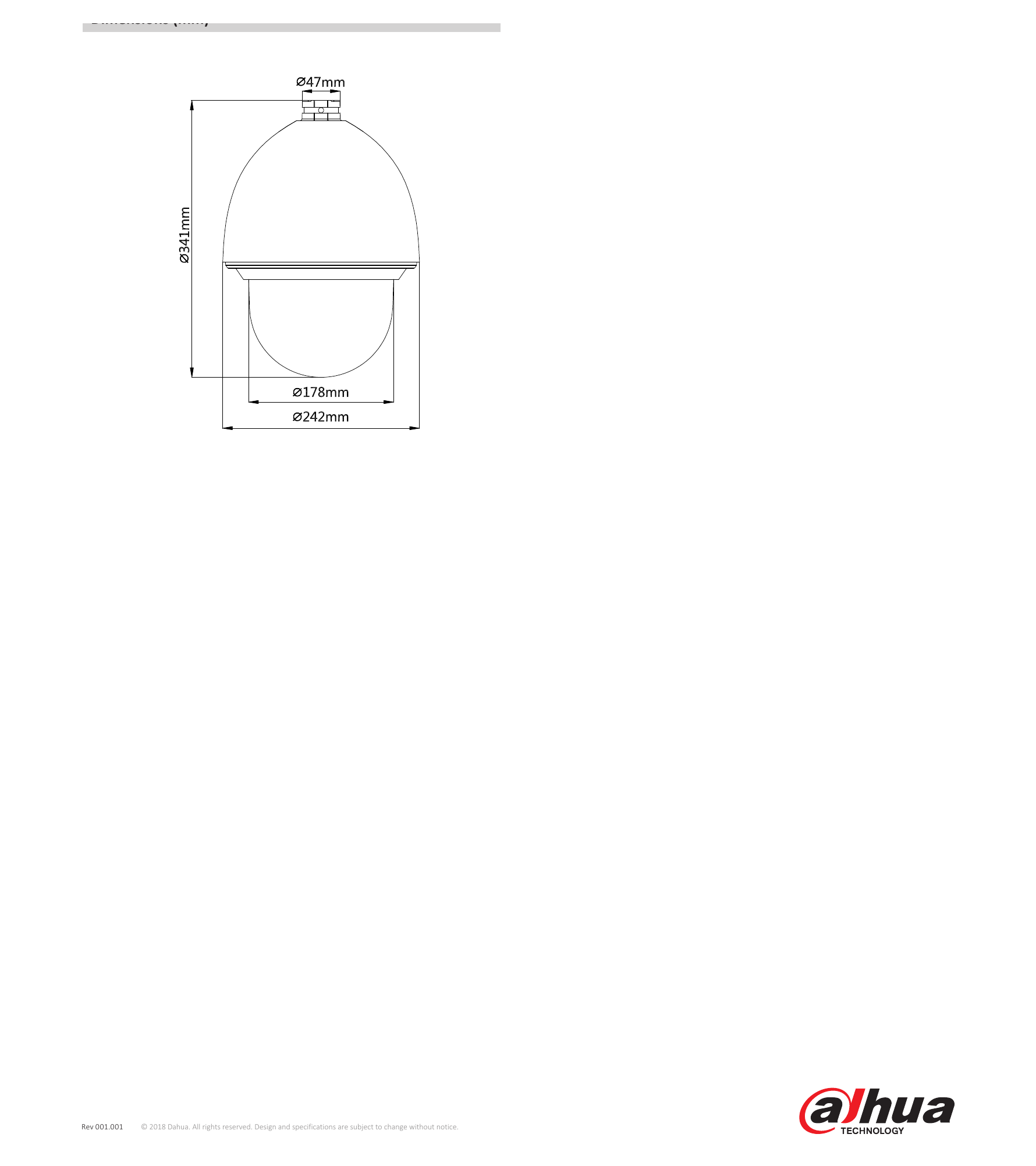

| 尺寸 | Φ242(mm) x 341 (mm) PFA111 + PFB300C PFA111 + PFB303W + PFA120 |
|---|
| 淨重 | 4.5kg(9.92lb) |
|---|
| 類型 | Part Number Description 2MP 30x Starlight PTZ Network DH-SD65F230F-HNI Camera, WDR, PAL |
|---|
| Power Box Mount | Pole Mount 2MP 30x Starlight PTZ Network |
|---|
| DH-SD65F230FN-HNI | PFA111 + PFB303W + PFA140 PFA111 + PFB303W + PFA150 |
|---|
| PFB303W | Wall Mount |
|---|
| PFA111 | Mount Adapter |
|---|
| AC24V/3A | Power Adapter |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFA140 | Power Box PFA111 + PFB303W + PFA151 PFA111+ PFB303S |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Junction Box |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount |
|---|
| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
