| Camera | Video |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Compression H.265+/H.265/H.264+/H.264 |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/1.3M(1280x960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/1.3M/720P((1~50/60fps) Color: 0.005Lux@F1.2; B/W: 0.0005Lux@F1.2; |
|---|
| Minimum Illumination | Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) 0Lux@F1.2 (IR on) |
|---|
| S/N Ratio | More than 56dB Sub stream2: 1080P/720P/D1/(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 200m (656ft) Bit Rate Control CBR/VBR |
|---|
| IR On/Off Control | Auto/Manual Bit Rate H.265/H.264: 256K ~ 8192Kbps |
|---|
| IR LEDs | 10 Day/Night Auto(ICR) / Color / B/W |
|---|
| 鏡頭 | Backlight Compensation BLC / HLC / WDR(140dB) |
|---|
| 焦距 | 4.5mm~180mm White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.2 ~ F3.5 Gain Control Auto / Manual |
|---|
| Angle of View | H: 67.5° ~ 1.7° Noise Reduction Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 40x Motion Detection Support |
|---|
| Focus Control | Auto/Manual Region of Interest Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization Support (EIS) DORI Distance |
|---|
| Optical Defog | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Digital Zoom 16x sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 2469m(8100ft) 988m(3241ft) 494m(1621ft) 247m(810ft) Audio |
|---|
| PTZ | G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ Compression MPEG2-Layer2 |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 200° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| 預置位 | 300 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Interoperability ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Streaming Method Unicast / Multicast Auto restore to previous PTZ and lens status after Max. User Access 20 users Power up Action power failure NAS (Network Attached Storage),Local PC for Activate Preset/ Scan/ Tour/ Pattern if there is no Edge Storage |
|---|
| Idle Motion | instant recording, Micro SD card 256GB command in the specified period |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Management Software | Smart PSS, DSS, DMSS Intelligence |
|---|
| Motion detection, Video tampering , Scene | Smart Phone IOS, Android |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| conflict, Illegal Access, Storage anomaly | Certifications |
|---|
| Auto Tracking | Support CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| IVS | Tripwire, Intrusion, Abandoned/Missing UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) Included: |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 |
|---|
| Electrical | PFB303W PFA111 AC24V/3A |
|---|
| Wall Mount | Mount Adapter Power Adapter |
|---|
| 供電 | AC24V/3A(±25%), Hi-PoE Optional： |
|---|
| 功耗 | 24W, 38W (IR on) Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| PFA140 | PFB300C PFA120 |
|---|
| Power Box | Ceiling Mount Junction Box |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ240(mm) x 382 (mm) |
|---|
| PFA150 | PFA151 PFB303S |
|---|
| 淨重 | 6.75kg(14.88lb) |
|---|
| Pole Mount | Corner Mount Parapet Mount |
|---|
| 毛重 | 10.1kg(22.27lb) |
|---|
| Ceiling Mount | Juncon Mount |
|---|
| PFA111 + PFB300C | PFA111 + PFB303W + PFA120 |
|---|
| 類型 | Part Number Description 2MP 40x Starlight IR PTZ Network DH-SD6AE240V-HNI Camera, WDR, PAL 2MP 40x Starlight IR PTZ Network DH-SD6AE240VN-HNI |
|---|
| Camera, WDR, PAL | Power Box Mount Pole Mount 2MP 40x Starlight IR PTZ Network PFA111 + PFB303W + PFA140 PFA111 + PFB303W + PFA150 SD6AE240VN-HNI Camera, WDR, NTSC |
|---|
| PFB303W | Wall Mount |
|---|
| PFA111 | Mount Adapter |
|---|
| AC24V/3A | Power Adapter |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFA120 | Junction Box PFA111 + PFB303W + PFA151 PFA111+ PFB303S |
|---|
| PFA151 | Corner Mount |
|---|

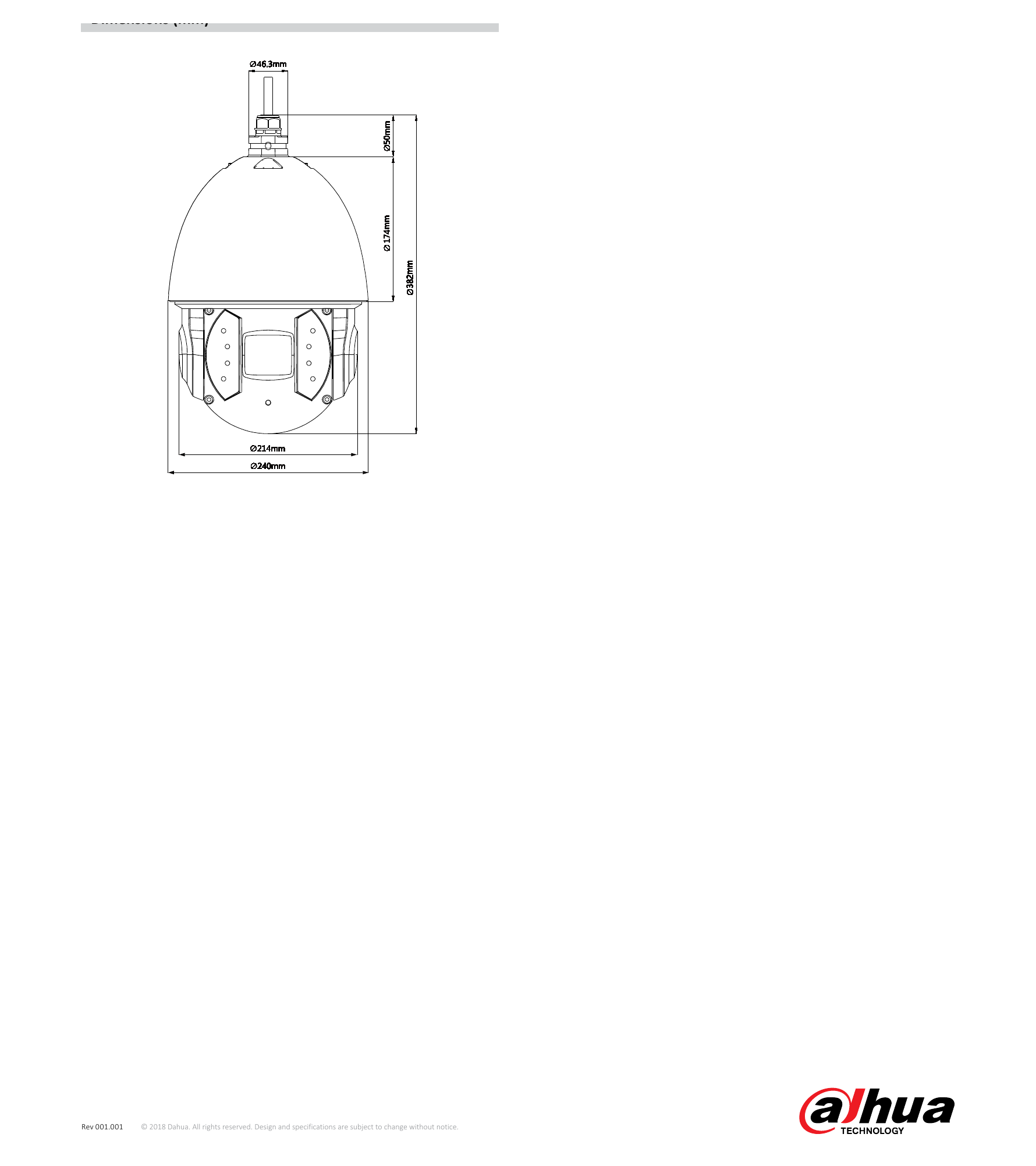

| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm) |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
