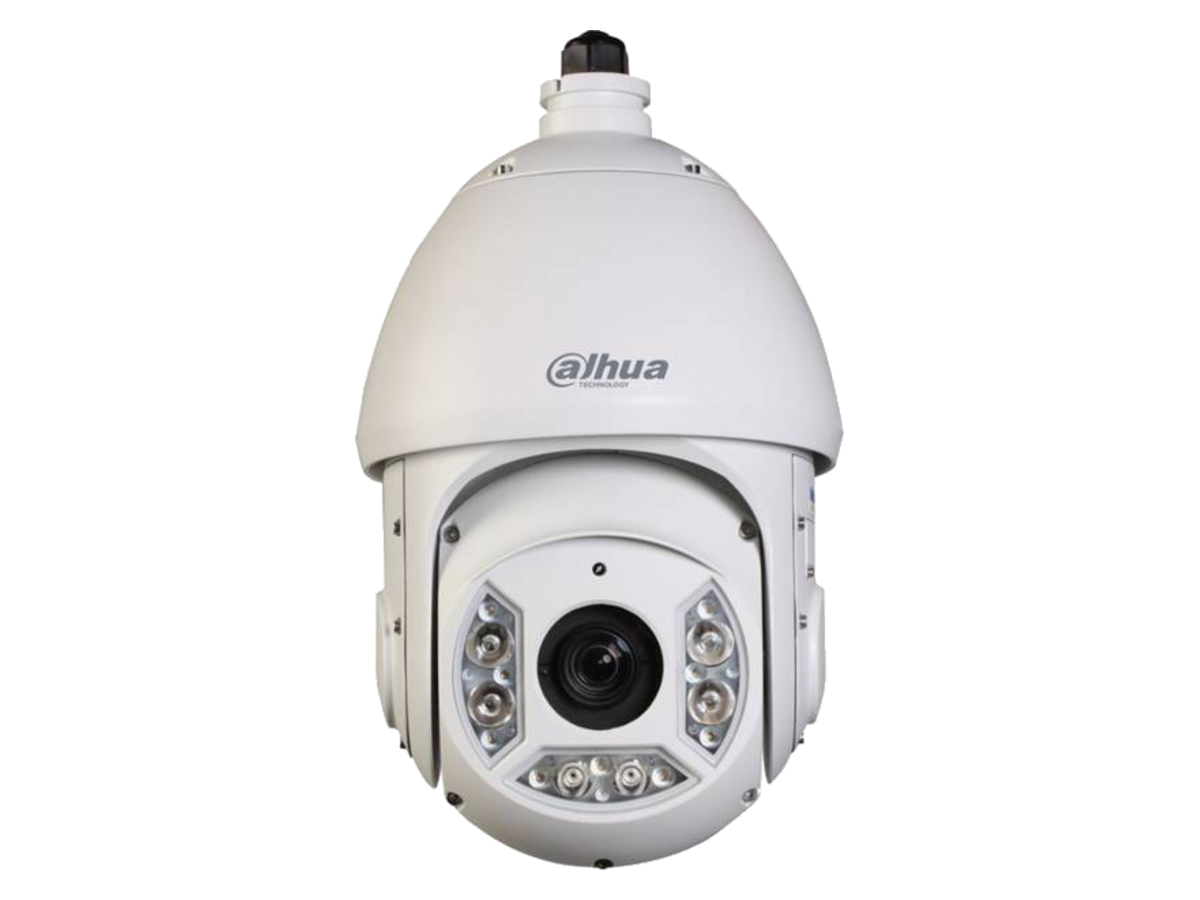

DAHUA SD6C230T-HN CCTV攝影機安裝・保養

Name: DAHUA SD6C230T-HN DH-SD6C230T-HN
Brand: Dahua
SKU: SD6C230T-HN

產品簡介

Dahua SD6C230T-HN 為DH-SD6C230T-HN，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SD6C230T-HN 香港價格連安裝報價。

Camera：Compression H.264+/H.264 / MJPEG
影像感測器：1/2.8” CMOS Streaming Capability 3 Streams
Effective Pixels：1920(H) x 1080(V), 2 Megapixels 1080P(1920×1080) / 720P(1280
RAM/ROM：256M/128M
主碼流：1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Camera	Compression H.264+/H.264 / MJPEG
影像感測器	1/2.8” CMOS Streaming Capability 3 Streams
Effective Pixels	1920(H) x 1080(V), 2 Megapixels 1080P(1920×1080) / 720P(1280×720) / Resolution D1(704×576/ 704×480) /CIF(352×288/352×240)
RAM/ROM	256M/128M
主碼流	1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Scanning System	Progressive
Frame Rate	Sub stream1 D1/CIF(1 ~ 25/30fps)
Electronic Shutter Speed	1/1s~1/300,000s
Sub stream2	720P/D1/ CIF (1 ~ 25/30fps)
Minimum Illumination	Color: 0.05Lux@F1.6; 0Lux@F1.6 (IR on)
碼率控制	CBR/VBR
S/N Ratio	More than 55dB H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ Bit Rate 10240Kbps
IR Distance	Distance up to 100m (328ft)
Day/Night	Auto(ICR) / Color / B/W
IR On/Off Control	Auto/Manual
Backlight Compensation	BLC / HLC / DWDR
IR LEDs	6
White Balance	Auto,ATW,Indoor,Outdoor,Manual
Gain Control	Auto / Manual
焦距	4.5mm~135mm
Noise Reduction	Ultra DNR (2D/3D)
Max. Aperture	F1.6 ~ F4.4
Motion Detetion	Support
Angle of View	H: 67.8° ~ 2.4°
Region of Interest	Support
Optical Zoom	30x Electronic Image
Focus Control	Auto/Manual N/A Stabilization (EIS)
Close Focus Distance	100mm~ 1000mm Defog Support
DORI Distance	Digital Zoom 16x *Note: The DORI distance is a “general proximity” of distance which makes it easy to Flip 180° pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Privacy Masking Up to 24 areas criteria for Detect, Observe, Recognize and Identify respectively.
Detect	Observe Recognize Identify 1929m(6329ft) 771m(2530ft) 386m(1266ft) 193m(633ft) Compression G.711a/G.711u(32kbps)/PCM(128kbps)
PTZ	Network
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Ethernet RJ-45 (10/100Base-T) IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
Manual Control Speed	Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Protocol	ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Preset Speed	Pan: 240° /s; Tilt: 200° /s
Interoperability	ONVIF, PSIA, CGI
預置位	300
Streaming Method	Unicast / Multicast
PTZ Mode	5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Max. User Access	20 users
Speed Setup	Human-oriented focal Length/ speed adaptation NAS (Network Attached Storage),Local PC for Auto restore to previous PTZ and lens status after Edge Storage
Power up Action	instant recording, Micro SD card 128GB power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Web Viewer IE, Chrome, Firefox, Safari Idle Motion command in the specified period
Management Software	Smart PSS, DSS
Smart Phone	IOS, Android Intelligence Certifications
Auto Tracking	N/A CE: EN55032/EN55024/EN50130-4 Tripwire, Intrusion,Abandoned/Missing, Face Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 IVS
Detection	UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com
接口	Accessories
Video Interface	1 Included:
Audio Interface	1/1
RS485	1
警報	2/1 64FB AC24V/3A
Electrical	Wall Mount Power Supply
供電	AC24V/3A(±10%) Optional：
功耗	10.5W,26W (IR on) Environmental
Operating Conditions	-40ºC ~ 60ºC (-40°F ~ +140°F) / Less than 90% RH
PFA114	PFB303W PFA140
Mount Adapter	Wall Mount Power box
防護等級	IP66
Vandal Resistance	N/A Construction
Casing	Metal
PFB300C	PFA120 PFA150

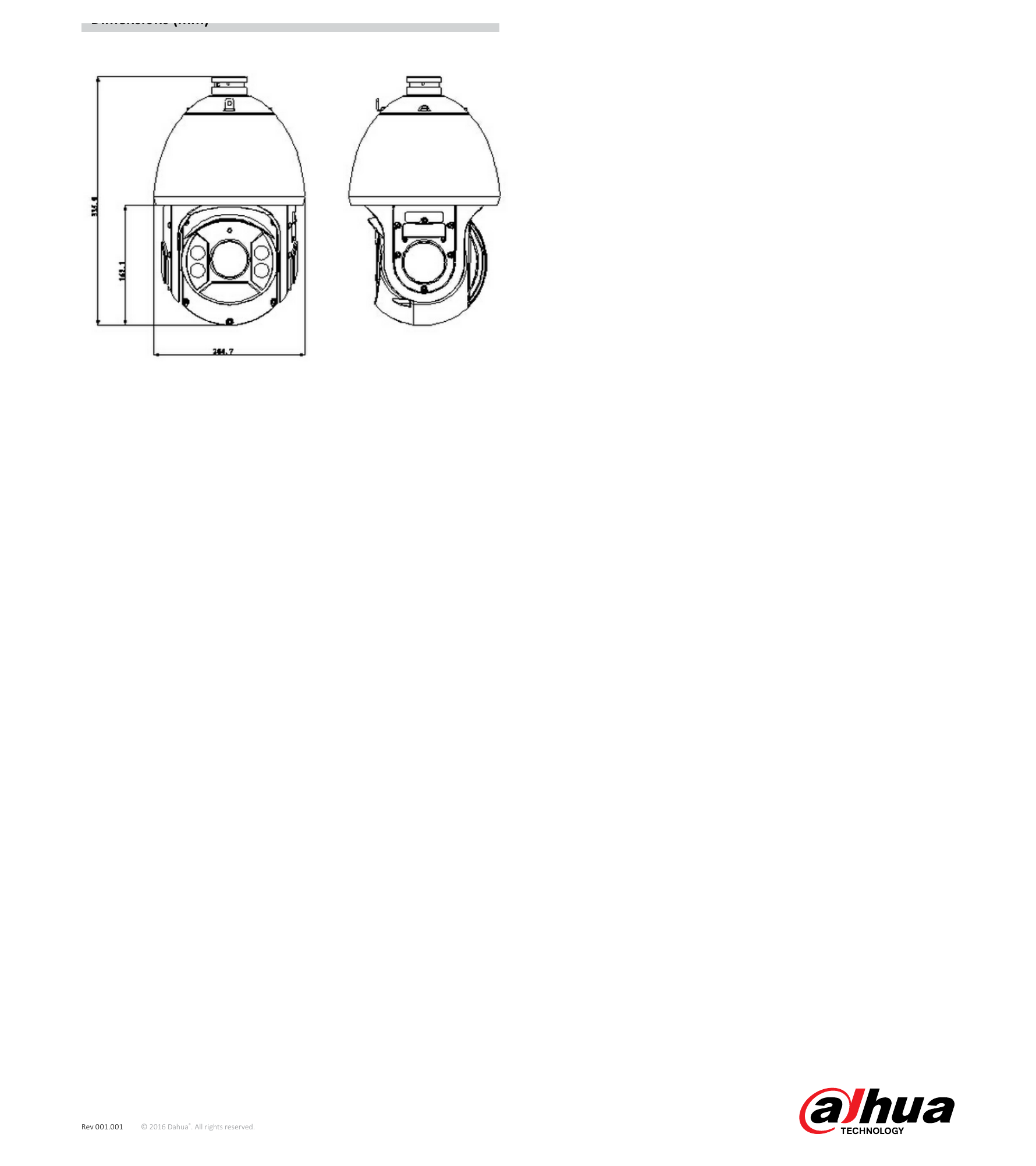

尺寸	Φ204.7(mm) x 359.9(mm) Ceiling Mount Junction Box Pole Mount
淨重	7.8kg(17.20lb)
毛重	8.3kg(18.30lb) Ordering Information
PFA151	PFB303S
類型	Part Number Description Corner Mount Parapet Mount 2MP 30x IR PTZ Network Ceiling Mount Juncon Mount DH-SD6C230T-HN
Camera, PAL	PFA114 + PFB300C PFA114 + PFB303W + PFA120 2MP 30x IR PTZ Network DH-SD6C230TN-HN Camera, NTSC 2MP PTZ 2MP 30x IR PTZ Network SD6C230T-HN Camera, PAL 2MP 30x IR PTZ Network SD6C230TN-HN Camera, NTSC
Power Box Mount	Pole Mount 64FB Wall Mount PFA114 + PFB303W + PFA140 PFA114 + PFB303W + PFA150
AC24V/3A	Power Supply
PFB303W	Wall Mount
PFA140	Power box Accessories
PFA114 + PFB303W + PFA151	PFA114+ PFB303S
PFA120	Junction Box
PFA150	Pole Mount
PFB303S	Parapet mount
Rev 001.001	© 2016 Dahua®. All rights reserved. www.dahuasecurity.com Dimensions (mm)
