| Camera | Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| 影像感測器 | 1/1.9" CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/ H.264 |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/1.3M(1280x960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) Color: 0.001Lux@F1.4; B/W: 0.0001Lux@F1.4; |
|---|
| Minimum Illumination | Main stream: 1080P/1.3M/720P(1~50/60fps) 0Lux@F1.4 (IR on) |
|---|
| S/N Ratio | More than 55dB Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 450m (1476ft) Sub stream2: 1080P/1.3M/720P (1 ~ 25/30fps) |
|---|
| IR On/Off Control | Auto/Manual Bit Rate Control CBR/VBR |
|---|
| IR LEDs | 10 Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Smart Wiper | Support |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| 焦距 | 5.6mm~223mm |
|---|
| Gain Control | Auto / Manual |
|---|
| Max. Aperture | F1.4~ F4.8 |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Angle of View | H: 60.6° ~ 1.8° |
|---|
| Motion Detection | Support |
|---|
| Optical Zoom | 40x |
|---|
| Region of Interest | Support |
|---|
| Focus Control | Auto/Manual Electronic Image Stabilization |
|---|
| Close Focus Distance | 100mm~ 1000mm Support (EIS) |
|---|
| DORI Distance | Optical Defog Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to Digital Zoom 16x pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Flip 180° criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Detect | Observe Recognize Identify 2340m(7677ft） 930m（3051ft) 460m(1509ft) 230m(755ft) |
|---|
| Compression | G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2 |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180° Network |
|---|
| Manual Control Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s Ethernet RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 120° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | NAS (Network Attached Storage),Local PC for |
|---|
| power failure | Edge Storage instant recording, Micro SD card 256GB Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android |
|---|
| Motion detection, Video tampering , Scene | Certifications |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| conflict, Illegal Access, Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | Support UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Optional： |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| RS485 | 1 |
|---|
| Audio Interface | 1/1 |
|---|
| Alarm I/O | 7/2 PFA120 PFA140 PFA150 |
|---|
| Junction Box | Power Box Pole Mount Electrical |
|---|
| 供電 | AC 24V/3A(±25%), Hi-PoE |
|---|
| 功耗 | 26W, 38W (IR on, Heater on) Environmental PFA151 |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH Corner Mount |
|---|
| 防護等級 | IP67 Juncon Mount Power Box Mount |
|---|
| PFB306W + PFA120 | PFB306W + PFA140 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal |
|---|

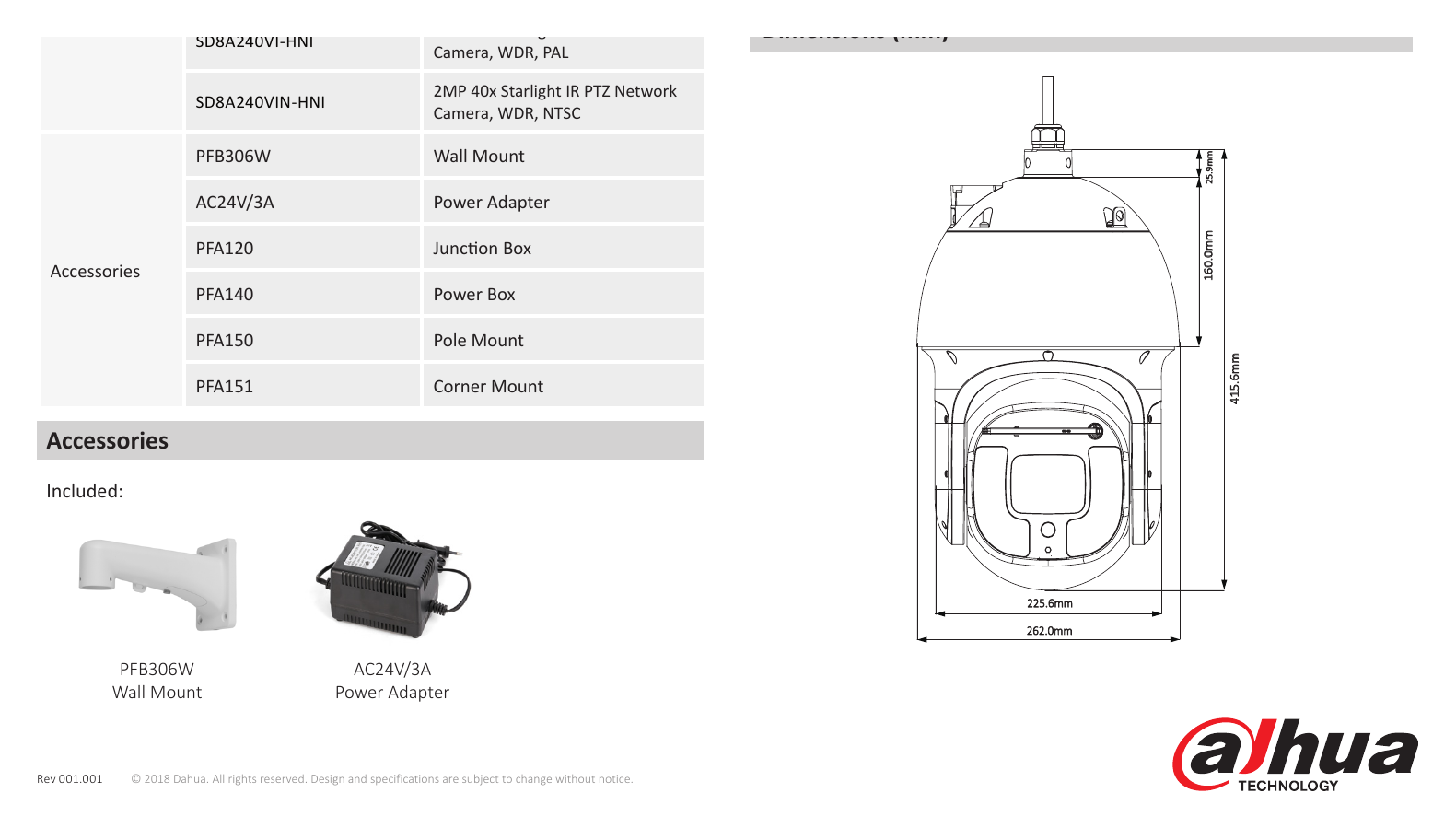

| 尺寸 | Φ262(mm) x 415.6(mm) |
|---|
| 淨重 | 8.5kg(18.74lb) |
|---|
| Corner Mount | Pole Mount |
|---|
| 毛重 | 14.3kg(31.53lb) |
|---|
| PFB306W + PFA151 | PFB306W + PFA150 Ordering Information |
|---|
| 類型 | Part Number Description 2MP 40x Starlight IR PTZ Network DH-SD8A240VI-HNI Camera, WDR, PAL 2MP 40x Starlight IR PTZ Network DH-SD8A240VIN-HNI 2MP PTZ Camera, WDR, NTSC |
|---|
| PFB306W | Wall Mount 25.9mm |
|---|
| AC24V/3A | Power Adapter 160.0mm |
|---|
| PFA120 | Junction Box Accessories |
|---|
| PFA140 | Power Box |
|---|
| PFA150 | Pole Mount 415.6mm |
|---|
| PFA151 | Corner Mount Accessories Included: 225.6mm 262.0mm |
|---|
| Wall Mount | Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
