| Camera | Radius of capturing area: 150 m (492.13 ft) (multi- scene), 60 m (196.85 ft) (single-scene) Supports configuring and monitoring up to 8 illegal |
|---|
| 影像感測器 | 1/1.8" CMOS parking areas under the same scene; adaptive multi- Illegal Parking Capture scene tour is available to expand the monitoring area; |
|---|
| Pixel | 4 MP supports recognizing motor vehicle attributes such as vehicle type, vehicle color, plate number and plate |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) color |
|---|
| ROM | 8 GB Detects events for up to 2 lanes. Detects wrong-way driving and traffic congestion. Checkpoint Capture Recognizes motor vehicle attributes, including license |
|---|
| RAM | 4 GB plates, plate color, vehicle color, and vehicle type. |
|---|
| Electronic Shutter Speed | 1/1 s–1/30,000 s Detects events for up to 2 lanes. Detects wrong-way driving. E-police |
|---|
| Scanning System | Progressive Recognizes motor vehicle attributes, including license plates, plate color, vehicle color, and vehicle type. |
|---|
| Color: 0.001 lux@F1.4 | Traffic Information Detects pedestrian events on highways, elevated |
|---|
| 最低照度 | B/W: 0.0001 lux@F1.4 Acquisition highways, express roads and more. 0 lux (IR light on) |
|---|
| Illumination Distance | 500 m (1,640.42 ft) (IR) H.264H; H.264B; Smart H.265+; H.264; H.265; Video Compression MJPEG(Sub Stream); Smart H.264+ |
|---|
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
|---|
| Streaming Capability | 3 streams |
|---|
| Illuminator Number | 10 (IR) 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × |
|---|
| Wiper | Smart wiper Resolution 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) |
|---|
| 焦距 | 5.6 mm–223 mm Video Frame Rate Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
|---|
| Max. Aperture | F1.4–F4.5 |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Field of View | H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4° H.264: 512 kbps–13,056 kbps Video Bit Rate |
|---|
| Optical Zoom | 40× H.265: 204 kbps–7,936 kbps |
|---|
| Focus Control | Auto; semi-auto; manual Day/Night Auto (ICR)/Color/B/W |
|---|
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) BLC Yes |
|---|
| Iris Control | Auto WDR 140 dB |
|---|
| Detect | Observe Recognize Identify HLC Yes |
|---|
| DORI Distance | Auto; indoor; outdoor; tracking; manual; auto sodium 3,030 m 1,204 m 606 m 303 m White Balance (9,940.94 ft) (3,950.13 ft) (1,988.18 ft) (994.09 ft) lamp; sodium lamp; auto outdoor |
|---|
| PTZ | Gain Control Auto; manual |
|---|
| Pan: 0° to 360° endless | Noise Reduction 2D NR; 3D NR Tilt: –30° to +90°, auto flip 180° |
|---|
| Motion Detection | Yes Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s |
|---|
| 感興趣區域 ROI | Yes |
|---|
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
|---|
| 防抖 | Electronic image stabilization |
|---|
| Preset | 300 |
|---|
| 除霧 | Optical |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| Digital Zoom | 16× |
|---|
| Pattern | 5 |
|---|
| Image Rotation | 180° |
|---|
| Scan | 5 Up to 24 areas can be set, with up to 8 areas in the Privacy Masking same view |
|---|
| 斷電記憶 | Yes |
|---|
| S/N Ratio | ≥ 55 dB |
|---|
| Idle Motion | Pattern; Preset; Scan; Tour DH-SD |
|---|
| Pelco-P/D (Auto recognition) | G.711a; G.711mu; G.726; G722.1; G.729; MPEG2- Audio Compression Layer2; G723; PCM www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Base-T) Type Model Description UDP; TCP; FTP; IGMP; RTMP; IPv6; IPv4; DNS; HTTP; 4MP |
|---|
| WizMind | 4MP 40x Starlight IR WizMind Network PTZ |
|---|
| 網絡協議 | PPPoE; NTP; DHCP; RTP; SMTP; 802.1x; Qos; HTTPS; DH-SD8A440FA-HNT Camera for Traffic |
|---|
| SNMP; RTSP; DDNS; UPnP; ICMP | PTZ Camera |
|---|
| Interoperability | CGI; ONVIF (Profile S&G&T) DC36V/2.23A Power Adapter |
|---|
| Streaming Method | Unicast/Multicast PFB306W Wall Mount Bracket |
|---|
| 用戶管理 | 20 (total bandwidth: 64 M) PFA118 Mount Adapter Accessories |
|---|
| Storage | FTP; Micro SD card (512 GB) PFB710C Ceiling Mount Bracket |
|---|
| IE 9 and later versions | PFA150 Pole Mount Bracket Chrome 41 and later versions |
|---|
| Firefox 50 and later versions | PFB301S-E Plane Mount Bracket Safari 10 and later versions |
|---|
| Management Software | Cyber City |
|---|
| Port | Accessories |
|---|
| Analog Output | 1 channel (CVBS output, BNC) Included: |
|---|
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
|---|
| 雙向語音 | Yes Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email; client E-map Motion/tampering detection; audio detection; DC36V/2.23A PFB306W network disconnection detection; IP conflict Power Adapter Wall Mount Bracket |
|---|
| Alarm Event | detection; encoder state detection; memory card state detection; memory space detection; power fault detection Optional: |
|---|
| Alarm I/O | 7/2 |
|---|
| Audio I/O | 1/1 |
|---|
| 供電 | 36 VDC/2.23 A±25% HI-PoE PFA118 PFB710C PFA150 |
|---|
| Mount Adapter | Ceiling Mount Bracket Pole Mount Bracket Basic: 20 W Max.: 33 W (IR light on) |
|---|
| 工作溫度 | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|
| 工作濕度 | ≤ 95% PFB301S-E IP67, TVS 6000V lightning proof; surge protection; Plane Mount Bracket voltage transient protection |
|---|

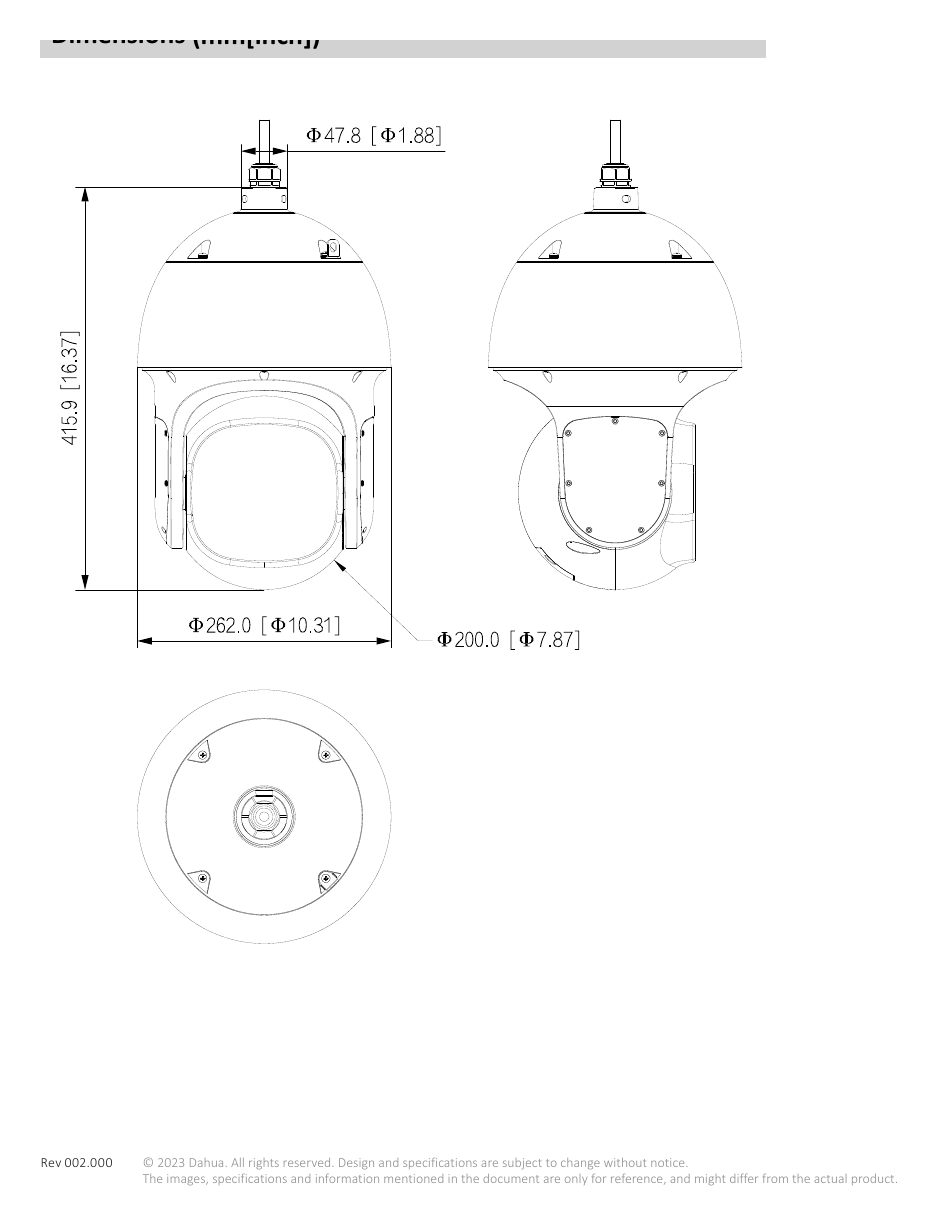

| Product Dimensions | 415.9 mm × Φ262.0 mm (16.37" × Φ10.31") |
|---|
| 淨重 | 8.5 kg (18.74 lb) |
|---|
| 毛重 | 12.5 kg (27.56 lb) Included: Wall mount bracket: PFB306W Power adapter: PFM311B-030-EN-HKA |
|---|
| Accessory | Optional: Mount adapter: PFA118 Wall mount: PFB306W Ceiling mount: PFB306W+PFA150 www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
