| Camera | Backlight Compensation BLC / HLC / WDR (120dB) |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Gain Control Auto / Manual |
|---|
| RAM/ROM | 512M/128M Noise Reduction Ultra DNR (2D/3D) |
|---|
| Scanning System | Progressive Motion Detection Support |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Region of Interest Support Color: 0.005Lux@F1.6; CB/W 0.0005Lux@F1.6; Electronic Image Stabilization |
|---|
| Minimum Illumination | Support 0Lux@F1.6 (IR on) (EIS) |
|---|
| S/N Ratio | More than 55dB Defog Support |
|---|
| IR Distance | Distance up to 100m (328ft) Digital Zoom 16x |
|---|
| IR On/Off Control | Auto/Manual Flip 180° |
|---|
| IR LEDs | 5 Privacy Masking Up to 24 areas |
|---|
| 鏡頭 | Audio |
|---|
| 焦距 | 4.5mm~135mm G.711a/G.711Mu/AAC/G.722 /G.726/G.729/ Compression MPEG2-L2 |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Angle of View | H: 67.8° ~ 2.4° |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Optical Zoom | 30x IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, |
|---|
| Focus Control | Auto/Manual DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Close Focus Distance | 100mm~ 1000mm Interoperability ONVIF Profile S&G, API |
|---|
| DORI Distance | Streaming Method Unicast / Multicast Note: The DORI distance is a “general proximity” of distance which makes it easy to Max. User Access 20 users pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the NAS (Network Attached Storage),Local PC for criteria for Detect, Observe, Recognize and |
|---|
| Detect | Obverse Recognize Identify Web Viewer IE, Chrome, Firefox, Safari 1862m(6109ft) 744m(2441ft) 372m(1220ft) 186m(610ft) Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android |
|---|
| Auto Tracking | N/A Certifications |
|---|
| IVS | Tripwire, Intrusion,Abandoned/Missing CE: EN55032/EN55024/EN50130-4 Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Advanced Intelligent Functions | Face Detection, Heat Map |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| RS485 | 1 |
|---|
| Streaming Capability | 3 Streams |
|---|
| Audio I/O | 1/1 1080P(1920×1080)/1.3M(1280×960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Alarm I/O | 2/2 Main stream: 1080P/1.3M/720P(1~50/60fps) Electrical |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| 供電 | AC24V(optional)/DC12V(optional)/PoE+(802.3at) Sub stream2: 1080P/1.3M/720P(1~25/30fps) |
|---|
| 功耗 | 10W, 25W (Heater on, IR on) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps www.dahuasecurity.com |
|---|
| Environmental | Wall Mount |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH EXB109 |
|---|
| 防護等級 | IP68 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | 316L stainless steel |
|---|
| 尺寸 | Φ180mm×193mm×201.5mm |
|---|
| 淨重 | 6.0kg(13.2lb) |
|---|

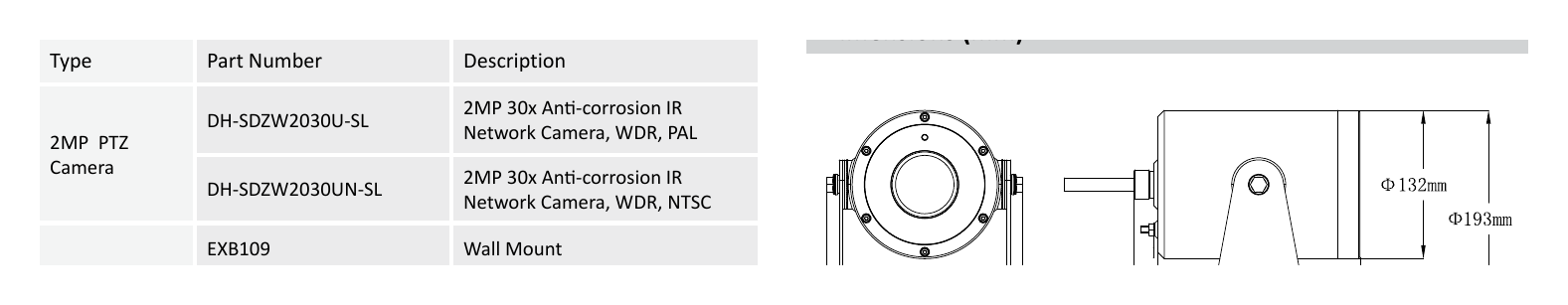

| 毛重 | 7.3Kg(16.09lb) Ordering Information Dimensions (mm) |
|---|
| 類型 | Part Number Description 2MP 30x Anti-corrosion IR DH-SDZW2030U-SL 2MP PTZ Network Camera, WDR, PAL |
|---|
| EXB109 | Wall Mount |
|---|
| Accessory | AC24V/3A Power Adapter |
|---|
| DC12V/3A | Power Adapter 152mm 180.5mm 180mm 201.5mm Accessories Optional: |
|---|
| Wall Mount | Power Adapter Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
