| System | Angle of View H: 94.16°, V: 49.57°, D: 113.65° Embedded processor |
|---|
| 處理器 | Focal Length 4.0 mm Clock rate: Dual core A53 1.2GHz |
|---|
| 操作系統 | Embedded LINUX WDR 120db |
|---|
| Internet Protocol | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP Noise Reduction 3D noise reduction |
|---|
| Keyboard Type | Touch screen QWERTY keyboard Video Encoding H.264 50Hz: |
|---|
| Basic | Main Stream (720P@25fps), sub stream (1080P@25fps) |
|---|
| Screen Type | Capacitive screen Frame Rate 60Hz: Main Stream (720P@30fps), sub stream |
|---|
| Display | 10 inch LCD (1080P@30fps) |
|---|
| Screen Resolution | 800(H)×1280(V) Video Bit Rate H.264: 256Kbps–2048Kbps www.dahuasecurity.com |
|---|
| Auto white light | Exit Button 1 Light Compensation Auto IR light Yes |
|---|
| Door Status Detection | 1 Day/Night Switch |
|---|
| 鎖控 | 1, normally open or closed by default |
|---|
| Audio Encoding | G.711u |
|---|
| Ethernet | 1 RJ45, 1 10M/100M/1000M Ethernet port |
|---|
| 音訊輸入 | 1 omnidirectional microphone |
|---|
| Storage | Micro SD card(up to 64GB reserved for software ) |
|---|
| 音訊輸出 | Built-in 1.5 W speaker |
|---|
| Audio Mode | Full duplex communication Alarm Echo suppression and cancellation/digital noise Tamper Alarm Yes Audio Enhancement reduction |
|---|
| 音訊碼率 | 16KHz, 16Bit IP65 (Apply silica gel to gaps between the |
|---|
| Status Indicator | Card Swiping Indicator device and the wall. Liquid sodium silicate is Ingress Protection recommended. For details, see the quick start guide.) |
|---|
| Password Unlock Mode | User password/public password/duress password |
|---|
| Communication Methods | Full digital |
|---|
| 顏色 | Gray |
|---|
| Unlock Mode | Remote/Password/Fingerprint/Face unlock/Card |
|---|
| Power Supply Mode | DC 12V/2A |
|---|
| Card Reading Type | IC card |
|---|
| 供電 | Optional |
|---|
| Auto Snapshot | Yes |
|---|
| Installation Method | Wall mounted |
|---|
| Information Release | Words can be played on the outdoor station |
|---|
| Certification | CE, FCC, IK, IP |
|---|
| Leave Photos and Messages | Yes |
|---|
| Accessory | Flush mount plate |
|---|
| Web Configuration | Yes |
|---|
| Product Dimensions | 475.8mm×174.8mm×57.3mm (18.73"×6.88"×2.56") Performance IK07; IP65 (Apply silica gel to gaps between the |
|---|
| Card Reading Distance | 3cm device and the wall.Liquid sodium silicate is Protection Grade recommended. For details, see the quick start |
|---|
| Issue Card Locally | Yes guide.) |
|---|
| Face Recognition Range | 0.3m–3m Working Temperature -30°C to +60°C (-22°F to +140°F) Face Recognition Configuration Anti-fake Threshold Working Humidity 10%RH–90%RH (non-condensing) |
|---|
| Face Verification Accuracy | >99% Working Altitude 86kPa–106kPa |
|---|
| Face Recognition Speed | ≤0.2s Power Consumption ≤5W (standby), ≤18W (working) |
|---|
| Fingerprint Sensor Type | Capacitive Net Weight 2.2kg (4.85 lb) |
|---|
| Fingerprint Recognition Time | ≤1.5s Gross Weight 2.67kg (5.89 lb) |
|---|
| Housing Material | Metal frame/Tempered glass |
|---|
| 卡容量 | 100, 000 |
|---|
| Face Image Capacity | 100, 000 |
|---|
| Fingerprint Capacity | 10, 000 Port |
|---|
| RS-485 | 1 |
|---|
| Wiegand | 1 (input or output) |
|---|
| 警報輸入 | 2 |
|---|
| 警報輸出 | 2 |
|---|
| Power Output Port | 1, 12V/100mA www.dahuasecurity.com Ordering Information |
|---|
| DHI-VTO9541D | Apartment Door Station |
|---|

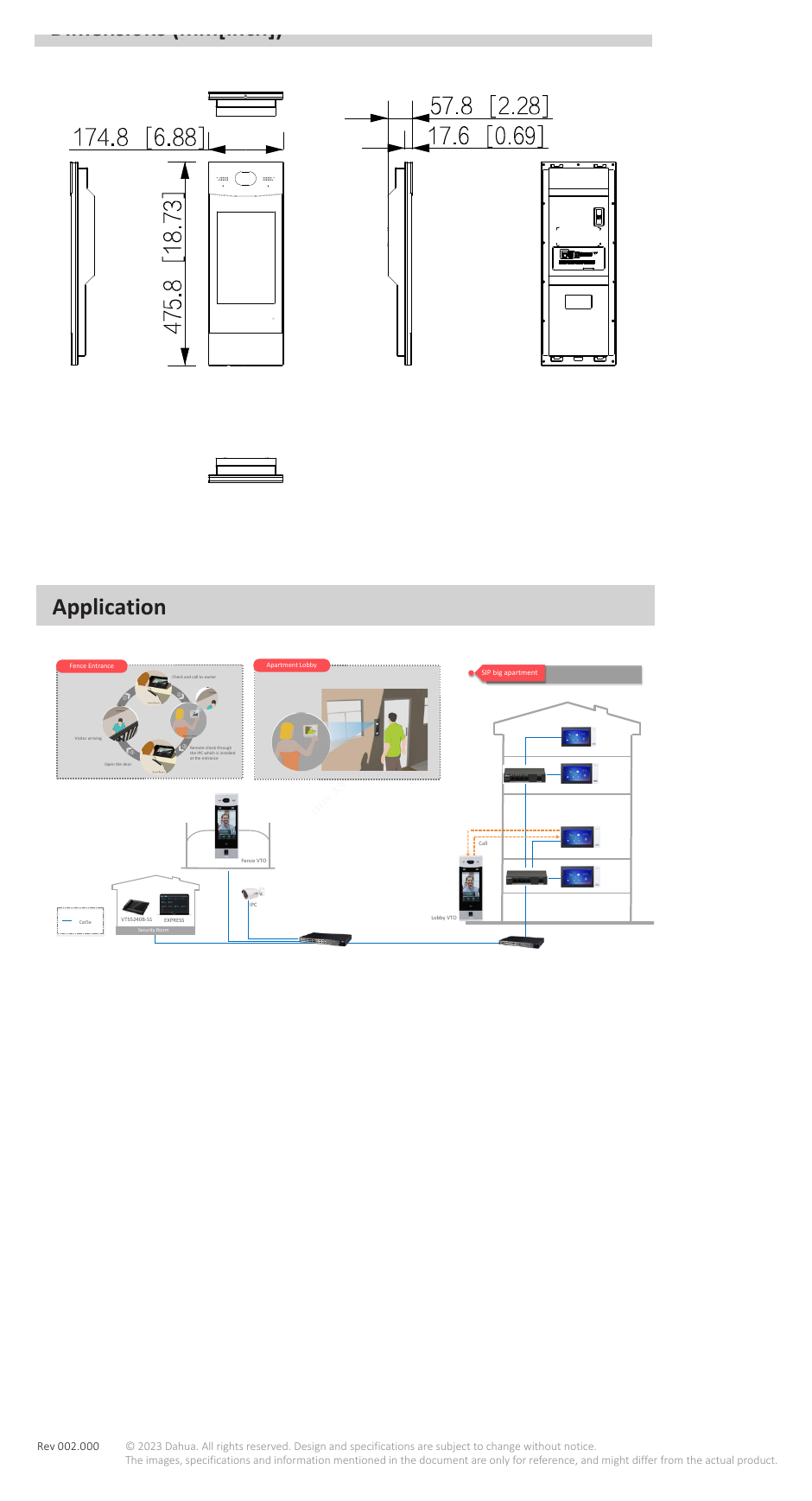

| VTOB119 | Metal Nounting box of unit door stations Dimensions (mm[inch]) Application Community Intercom System Architecture |
|---|
| Fence Entrance | Apartment Lobby Check and call to owner SIP big apartment Visitor arriving Remote check through |
|---|
| | the IPC which is installed at the entrance Open the door Call Fence VTO IPC |
|---|
| VTS5240B-S1 | EXPRESS Lobby VTO Cat5e Security Room |
|---|
