| System | Playback Mode Instant playback; general playback; event playback; tag playback; smart playback |
|---|
| Main Processor | Industrial-grade processor Alarm |
|---|
| 操作系統 | Embedded Linux Motion detection; HDCVI alarm; camera external alarm; General Alarm |
|---|
| Operating Interface | Web; Local GUI network alarm; PIR alarm |
|---|
| SMD Plus | Error (no disk, disk error, low space, low quota space; |
|---|
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video 8 channels: Secondary filtering for human and vehicle, loss; video tampering; camera offline |
|---|
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting |
|---|
| condition change | Intelligent Alarm SMD Plus |
|---|
| Audio and Video | Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto- |
|---|
| detect | Ports 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 1-channel RCA Audio Input |
|---|
| Camera Input | 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 16-channel BNC (Coaxial Audio) 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
|---|
| 音訊輸出 | 1-channel RCA Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels Two-way Talk Yes (share the same audio input with the first channel) are converted to IP channels) 1 SATA port, up to 16 TB. This limit varies depending on |
|---|
| IP Camera Input | Incoming bandwidth: 64 Mbps, recording bandwidth: Disk Interface the environment temperature. 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, the AI Function (SMD) USB 2 (2 rear USB 2.0 ports) will be disabled. |
|---|
| HDMI | 1 Main stream: the 1st channel 1080N/720p@(1 fps– 25/30 fps), others 1080N/720p@(1 fps–15 fps); VGA 1 960H/D1/CIF@(1 fps–25/30 fps) |
|---|
| Sub stream: CIF@(1 fps–7 fps) | Network Port 1 (10/100 Mbps Ethernet port, RJ-45) |
|---|
| Dual-stream | Yes General |
|---|
| 視頻碼率 | 32 kbps–4096 kbps Power Supply 12 VDC, 2 A |
|---|
| Audio Sampling | 8 kHz, 16 bit Power Consumption <10 W (without HDD) |
|---|
| 音訊碼率 | 64 kbps Net Weight 0.89 kg (1.96 lb) 1 HDMI, 1 VGA Gross Weight 1.42 kg (3.13 lb) |
|---|
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|---|

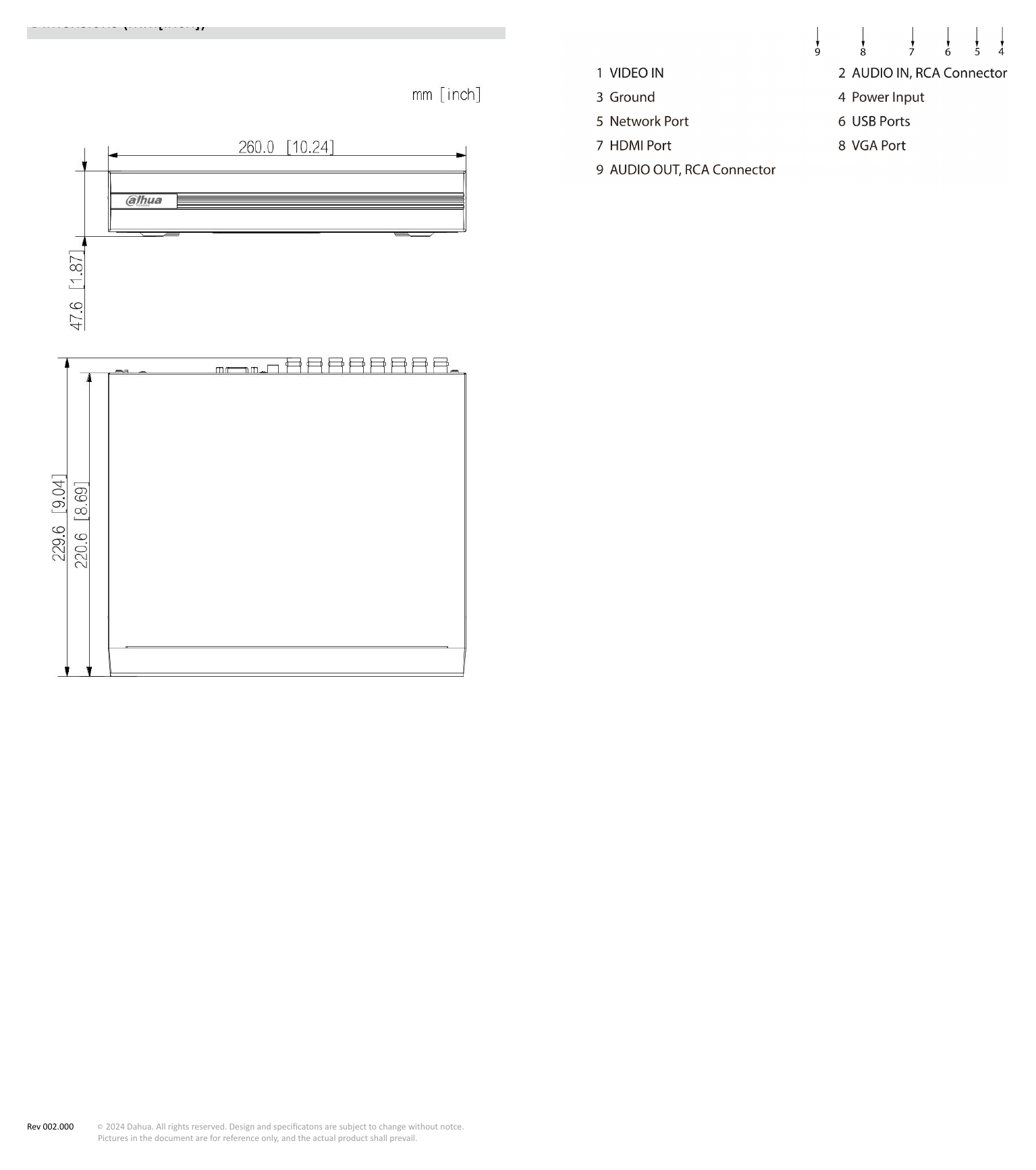

| VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | 260.0 mm × 229.6 mm × 47.6 mm (10.24" × 9.04" × Product Dimensions 1.87") (W × D × H) When IP extension mode not enabled: 1/4/8/9/16 |
|---|
| Multi-screen Display | 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × When IP extension mode enabled: 1/4/8/9/16/25 Packaging Dimensions 12.40") (W × D × H) |
|---|
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
|---|
| 工作溫度 | –10 °C to +45 °C (+14 °F to +113 °F) |
|---|
| 儲存溫度 | –20 °C to +60 °C (–4 °F to +140 °F) |
|---|
| 視頻壓縮 | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
|---|
| 工作濕度 | 10%–90% (RH), non-condensing |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| 安裝 | Desktop CE-LVD: IEC 62368-1:2014 HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; CE-EMC: EN IEC 61000-3-2:2019, EN DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, |
|---|
| 網絡協議 | Certifications Server; P2P; Auto Registration; IP Search (Supports IP EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, |
|---|
| camera, DVR, NVS, etc.) | EN 50130-4:2011+A1:2014 FCC: 47 CFR Part 15, Subpart B |
|---|
| Mobile Phone Access | iOS; Android |
|---|
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
|---|
| Browser | Chrome; IE; Safari; Edge; Firefox |
|---|
| Record Mode | General; alarm; motion detection |
|---|
| Recording Playback | 1/4/9/16 www.dahuasecurity.com |
|---|
| Ordering Information | Panels |
|---|
| 類型 | Part Number Description 16CH Penta-brid 1080N/ |
|---|
| DIGITAL VIDEO | 720P Compact 1U 1HDD DH-XVR1B16-I |
|---|
| RECORDER | WizSense Digital Video Recorder |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
