| SMD Plus | need to invest in a new camera. |
|---|
| effective and accurate alarm. | and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p. |
|---|
| Smart Dual Illuminators | Audio over Coax www.dahuasecurity.com |
|---|
| Technical Specification | Backup Method USB device and network |
|---|
| System | Playback Mode Instant playback, general playback, event playback, tag playback |
|---|
| Main Processor | Industrial-grade processor Alarm |
|---|
| 操作系統 | Embedded Linux |
|---|
| General Alarm | Motion detection, video loss, tampering |
|---|
| Operating Interface | Web; Local GUI No disk, disk error, low space, offline, ip conflict, MAC Anomaly Alarm conflict Record, snapshot (panoramic), IPC external alarm output, 4-channel: Secondary filtering for human and motor Alarm Linkage access controller, voice prompt, buzzer, log, preset, email |
|---|
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and |
|---|
| lighting condition change | Ports |
|---|
| Audio and Video | Audio Input 1-channel RCA 4-channel BNC (Coaxial Audio) 4 channels, BNC: adaptive access by default; HDCVI, AHD, |
|---|
| TVI and CVBS access can be configured. | Audio Output 1-channel RCA 1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps Two-way Talk Yes (share the same audio input with the first channel) 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps 1 SATA port, up to 16 TB.The maximum HDD capacity 4. CVBS: PAL/NTSC HDD Interface varies with environment temperature. Up to 5 channels of IPC access 1 IP channels by default + 4 ch |
|---|
| IP Camera Input | incoming bandwidth: 32 Mbps, recording bandwidth: 32 USB 2 USB ports (USB 2.0) Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing HDMI 1 channels, the AI Function (SMD) will be disabled. |
|---|
| 主碼流 | VGA 1 All channels 1080N/720p/960H/D1/CIF/(1 fps–25/30 fps) |
|---|
| Encoding Capacity | Network Port 1 (10/100 Mbps Ethernet port, RJ-45) Sub stream: CIF/(1 fps–15 fps) |
|---|
| Dual-stream | Yes |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| 視頻碼率 | 32 kbps–6144 kbps |
|---|
| 功耗 | <4W |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 淨重 | 0.86 kg (1.90 lb) |
|---|
| 音訊碼率 | 64 kbps |
|---|
| 毛重 | 1.37 kg (3.02 lb) 1 HDMI, 1 VGA HDMI/VGA : 1920 × 1080, 1280 × 1024, 1280 × 720 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × Product Dimensions 1.87'') (W × D × H) When IP extension mode not enabled: 1/4 |
|---|
| When IP extension mode enabled: 1/4/6 | 333.0 mm × 315.0 mm × 89.0 mm ( 13.11" × 12.40" × Packaging Dimensions 3.50" ) (W× D × H) |
|---|
| Third-party Camera | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
|---|
| Access | Samsung Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| Compression Standard | Operating Humidity 0%–90% (RH) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 |
|---|
| 安裝 | Desktop |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 Certifications |
|---|
| Network | CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
|---|
| Mobile Phone Access | iOS; Android Ordering Information |
|---|
| Interoperability | ONVIF 21.06; CGI Conformant |
|---|
| 類型 | Model Description Chrome |
|---|
| Browser | IE9 or later 4 Channels Compact 1U WizSense Digital Video DH-XVR4104HS-I |
|---|
| Firefox | WizSense XVR Recorder |
|---|
| Network Mode | Single-address mode |
|---|
| Record Mode | General, motion detection, alarm |
|---|
| Recording Playback | 1/4 www.dahuasecurity.com |
|---|

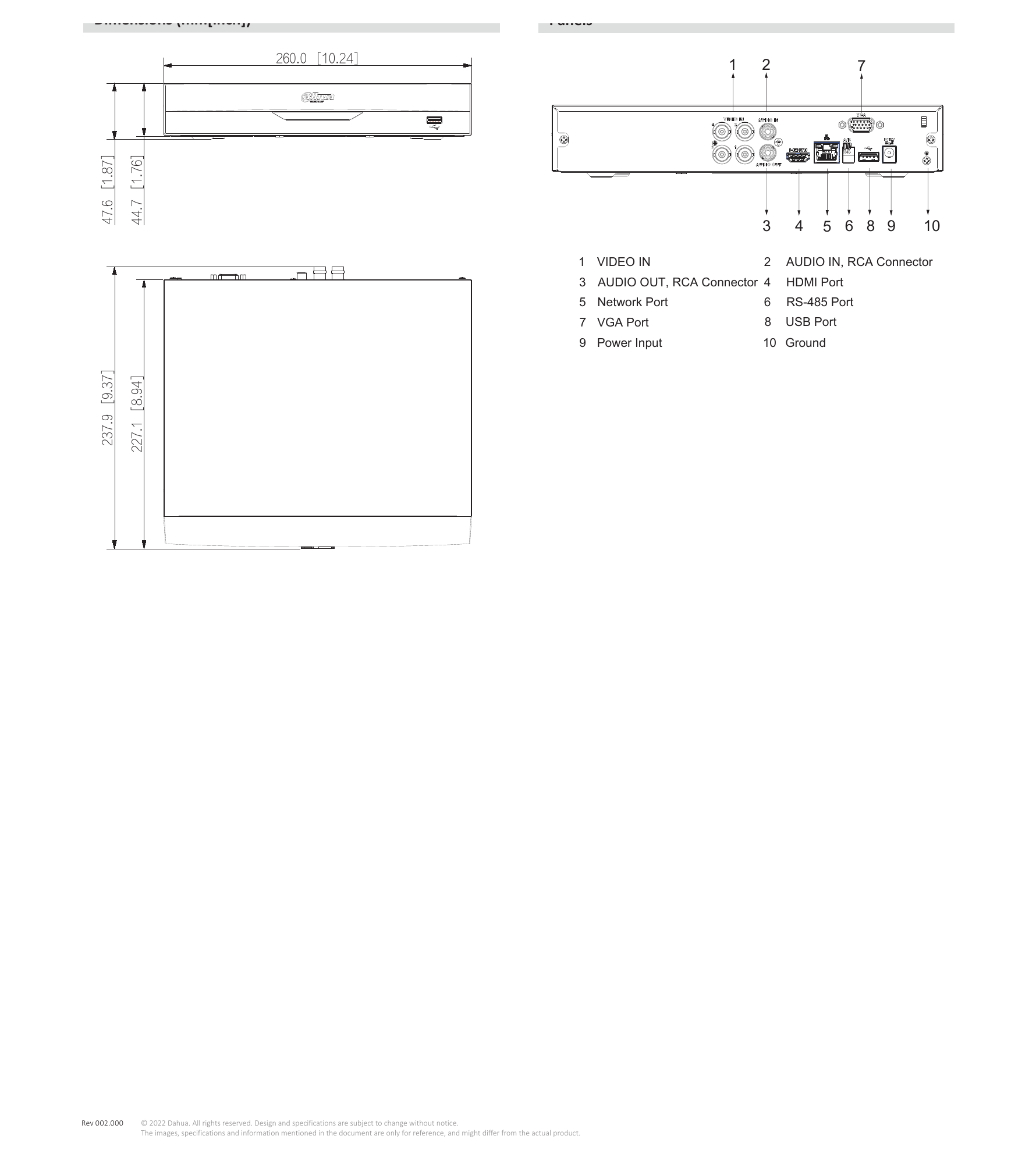

| Dimensions (mm[inch]) | Panels |
|---|
| <> | mm[inch] 1 2 7 <> <> 3 4 5 6 8 9 10 1 VIDEO IN 2 AUDIO IN, RCA Connector 3 AUDIO OUT, RCA Connector 4 HDMI Port 5 Network Port 6 RS-485 Port 7 VGA Port 8 USB Port 9 Power Input 10 Ground <> <> |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
