| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| Main Processor | Industrial-grade processor HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; |
|---|
| 操作系統 | Embedded Linux DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; Network Protocol P2P; Auto Registration; IP Search (Supports IP camera, |
|---|
| Operating Interface | Web; Local GUI DVR, NVS, etc.) |
|---|
| Mobile Phone Access | IOS; Android Perimeter Protection |
|---|
| Perimeter Performance AI | Advanced Model: 2 channels, 10 IVS rules for each Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
|---|
| by Recorder (Number of | channel General Model: 4 channels, 10 IVS rules for each |
|---|
| Channels) | channel Browser Chrome; Firefox; IE |
|---|
| Face Detection | Network Mode Single-address mode |
|---|
| Face Attributes | 6 attributes Recording Playback |
|---|
| Performance of AI by | 1 channel (up to 8 face images/s each channel) |
|---|
| Recorder (Number of | Recording Playback 1/4 Channels) |
|---|
| Backup Method | USB device and network Face Recognition Instant playback; general playback; event playback; tag |
|---|
| Face Database Capacity | Up to 10 face databases with 10,000 images. Playback Mode playback; smart playback (face and motion detection) Face Recognition Performance of AI by Alarm 1 channel |
|---|
| SMD Plus | Error (no disk, disk error, low space, low quota space; 4 channels: Secondary filtering for human and motor Anomaly Alarm network disconnection; IP conflict; MAC conflict) ;video vehicle , reducing false alarms caused by leaves, rain and loss; video tampering; camera offline SMD Plus by Recorder lighting condition change |
|---|
| Intelligent Alarm | Face detection; face recognition; perimeter protection Audio and Video Record; snapshot (panoramic); IPC external alarm output; Alarm Linkage audio; buzzer; log, preset; email |
|---|
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect Ports 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 1-channel RCA |
|---|
| Camera Input | 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, Audio Input 4-channel BNC (Coaxial Audio) 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. Audio Output 1-channel RCA Up to 6 channels of IPC access 2 IP channels by default |
|---|
| Two-way Talk | Yes (share the same audio input with the first channel) + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording 1 SSD:1TB(replaceable with 256 GB or 512 GB) |
|---|
| IP Camera Input | HDD Interface bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps Stores for 22 days under default settings *After IP extension is enabled, the AI Function (IVS, SMD, |
|---|
| FACE) will be disabled. | RS-485 1 Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M- USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) Encoding Capacity N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@ (1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
|---|
| HDMI | 1 |
|---|
| Dual-stream | Yes |
|---|
| VGA | 1 |
|---|
| 視頻碼率 | 32 kbps–6144 kbps |
|---|
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 音訊碼率 | 64 kbps |
|---|
| 供電 | 12 VDC, 1.5A 1 HDMI, 1 VGA |
|---|
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 Power Consumption <5 W (with SSD) VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 www.dahuasecurity.com |
|---|
| 淨重 | 0.84 kg (1.85 lb) Panels |
|---|
| 毛重 | 1.37 kg (3.02 lb) 1 2 3 260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × Product Dimensions 1.87'') (W × D × H) 333.0 mm × 89.0 mm × 315.0 mm (13.11'' × 3.50'' × Packaging Dimensions 12.40'') (W × D × H) |
|---|
| 工作溫度 | –10 °C to +55 °C (14 °F to +131 °F) |
|---|
| 儲存溫度 | –20 °C to +60 °C (–4 °F to +140 °F) |
|---|
| 工作濕度 | ≤93% (RH), non-condensing 10 9 8 7 6 5 4 |
|---|
| 安裝 | Rack or desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000- 1 VIDEO IN 2 AUDIO IN, RCA Connector 3-2:2019, EN 61000-3-3:2013+A1:2019, EN |
|---|
| Certifications | 3 VGA Port 4 Ground 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 5 Power Input 6 USB Port 7 RS-485 Port 8 Network Port 9 HDMI Port 10 AUDIO OUT, RCA Connector Ordering Information |
|---|
| 類型 | Model Description 4CH Penta-brid 5MP Value/1080P |
|---|
| DIGITAL VIDEO | DH-XVR5104HS- Compact 1U 1SSD 1TB WizSense Digital |
|---|

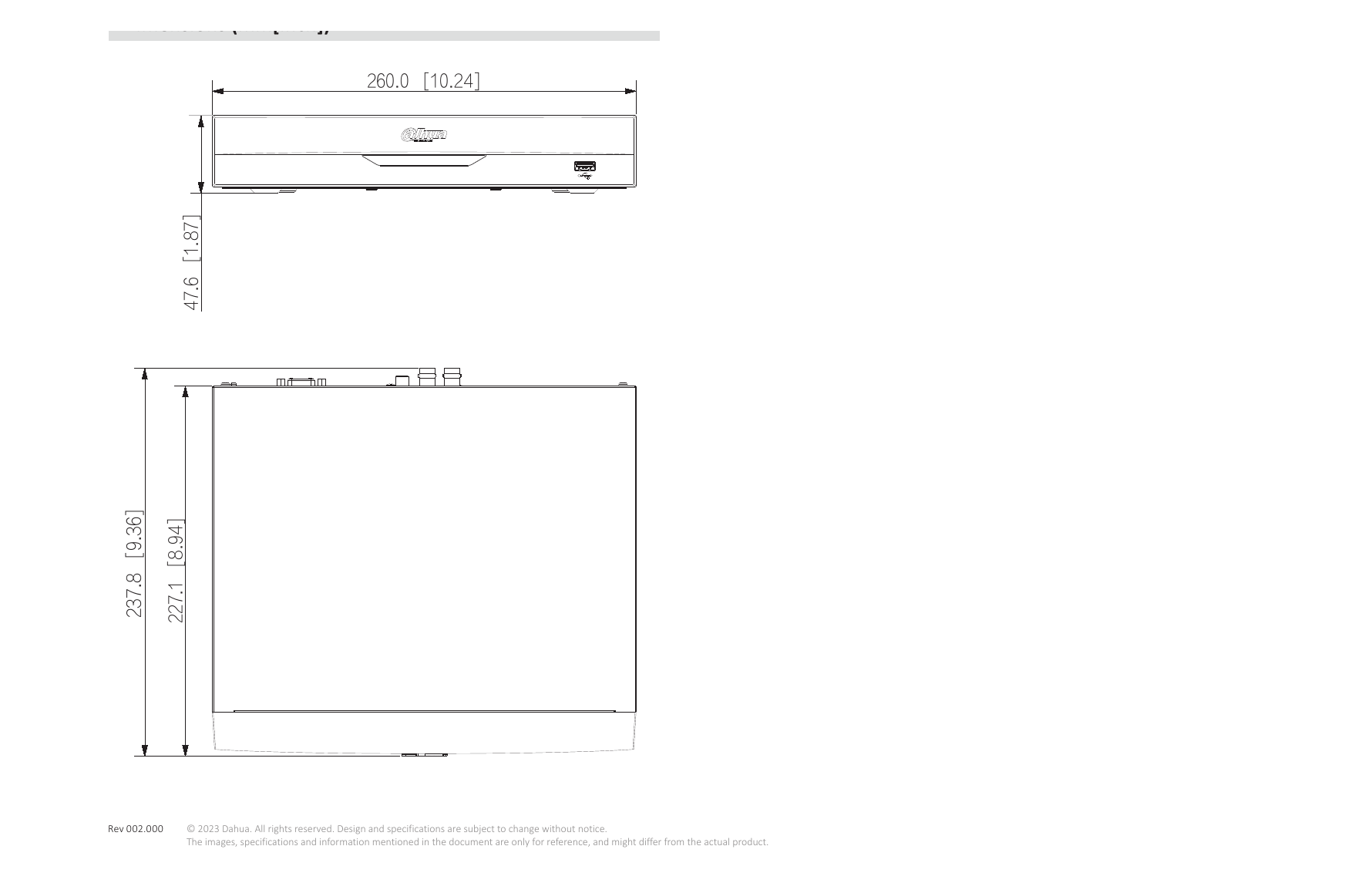

| RECORDER | I3(1TB) Video Recorder Dimensions (mm[inch]) NN <> <> <> <> |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
