| Main Processor | Embedded Processor Motion Detection, MD Zones: 396 (22 × 18), Video Loss, |
|---|
| 操作系統 | Embedded LINUX Video Detection Tampering and Diagnosis |
|---|
| Video and Audio | Alarm input 16 |
|---|
| Analog Camera Input | 32 Channel, BNC Relay Output 6 |
|---|
| HDCVI Camera | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps Playback and Backup |
|---|
| AHD Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps Playback 1/4/9/16 |
|---|
| TVI Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps Time /Date, Alarm, MD and Exact Search (accurate to Search Mode second) |
|---|
| CVBS Camera | PAL/NTSC Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, |
|---|
| IP Camera Input | 32 Channel, each channel up to 8MP Playback Function Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|---|
| Audio In/Out | 16/1, BNC |
|---|
| Two-way Talk | 1 Mic In, 1 Mic Out, BNC Backup Mode USB Device/Network |
|---|
| Recording | Storage |
|---|
| Compression | H.265+/H.265/H.264+/H.264 Internal HDD 8 SATA Ports, up to 10TB capacity |
|---|
| 解像度 | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF eSATA 1 Port Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); Auxiliary Interface |
|---|
| Record Rate | 1080N/720P/960H/D1/CIF (1~25/30fps) |
|---|
| Sub stream: D1/CIF(1~15fps) | USB 2 USB 2.0, 2 USB 3.0 |
|---|
| RS232 | 1 port, for PC communication & Keyboard |
|---|
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
|---|
| RS485 | 1 Port, for PTZ Control Manual, Schedule (General, Continuous), MD (Video detection: |
|---|
| Record Mode | RS422 1 Port, for PTZ Control Motion Detection, Video Loss, Tampering), Alarm, Stop 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- Electrical Record Interval record: 10 ~ 300 sec |
|---|
| 供電 | AC100V-240V, 50/60Hz |
|---|
| 音訊壓縮 | G.711A, G.711U, PCM Power Consumption <35W (Without HDD) |
|---|
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
|---|
| 音訊碼率 | 64Kbps Per Channel Construction |
|---|
| Display | Dimensions 2U, 440mm×455mm×95mm (17.3" x 17.9" x 3.7") |
|---|
| 接口 | 2 HDMI ,1 VGA, 1 TV Net Weight 7kg (15.4 lb) (without HDD) HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 Gross Weight 9.8kg (21.6lb) Resolution HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720 |
|---|
| 安裝 | Desktop installation/Rack-mounted Environmental |
|---|
| Multi-screen Display | 1/4/8/9/16/25/36 |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH Camera title, Time, Video loss, Camera lock, Motion detection, OSD |
|---|
| Network | Third-party Support |
|---|
| Third-party Support | Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, Sanyo, Sony, Videotec, Vivotek, and more RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Network Function Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, |
|---|
| NVS, etc.) | Certifications |
|---|
| Max. User Access | 128 users FCC: Part 15 Subpart B |
|---|
| Smart Phone | iPhone, iPad, Android CE: CE-LVD: EN 60950-1/IEC 60950-1 |
|---|
| Certifications | CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, |
|---|
| Interoperability | ONVIF 16.12, CGI Conformant EN 55024 UL: UL 60950-1 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|

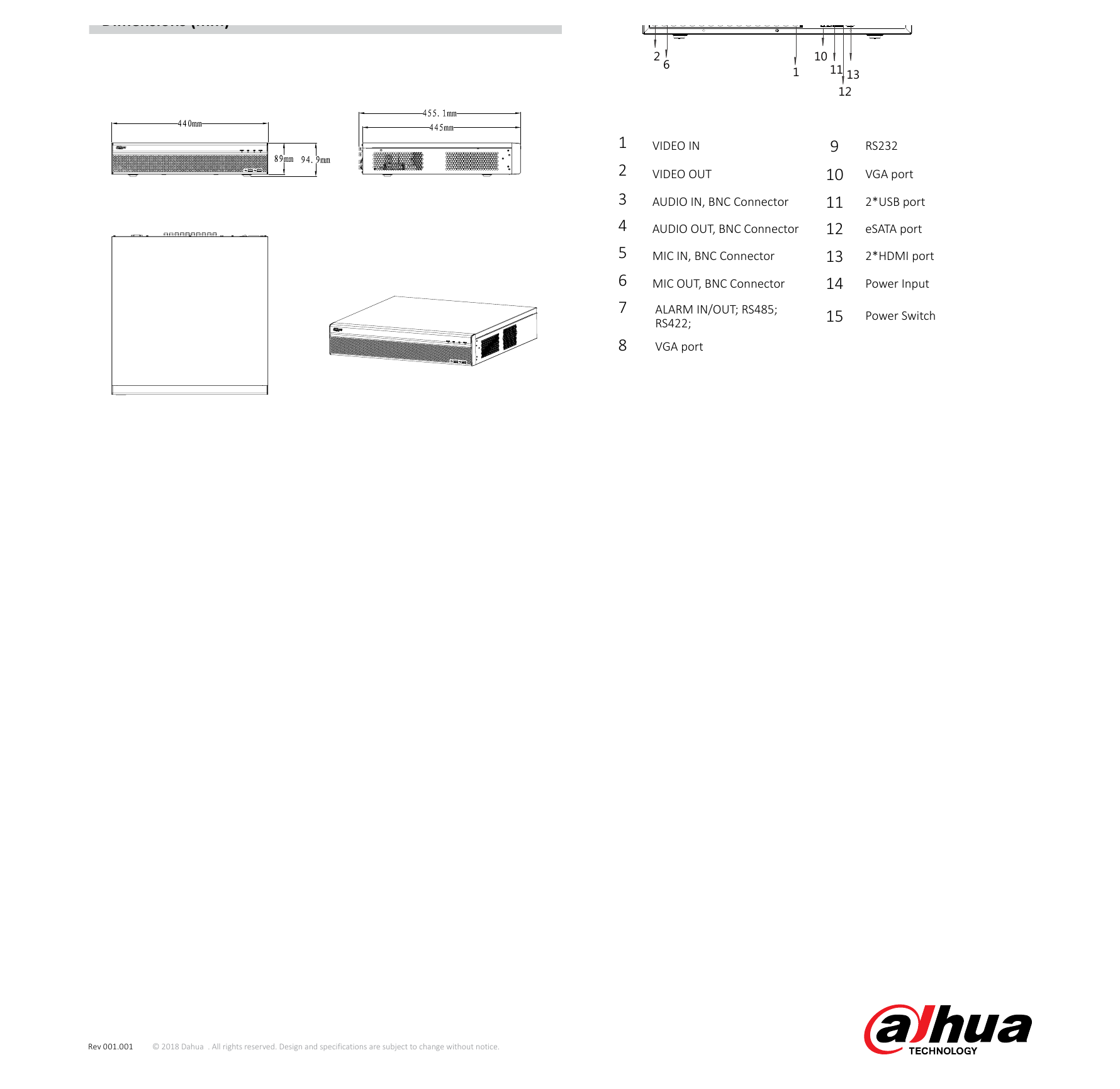

| 類型 | Part Number Description DH-XVR5832S-X 32 Channel Penta-brid 1080P 2U Digital 32 Channel XVR DH-XVR5832S-X Video Recorder 4 5 7 9 3 8 14 Dimensions (mm) 2 10 6 11 13 1 VIDEO IN 9 RS232 2 VIDEO OUT 10 VGA port 3 AUDIO IN, BNC Connector 11 2*USB port 4 AUDIO OUT, BNC Connector 12 eSATA port 5 MIC IN, BNC Connector 13 2*HDMI port 6 MIC OUT, BNC Connector 14 Power Input 7 ALARM IN/OUT; RS485; 15 Power |
|---|
| Rev 001.001 | © 2018 Dahua . All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
