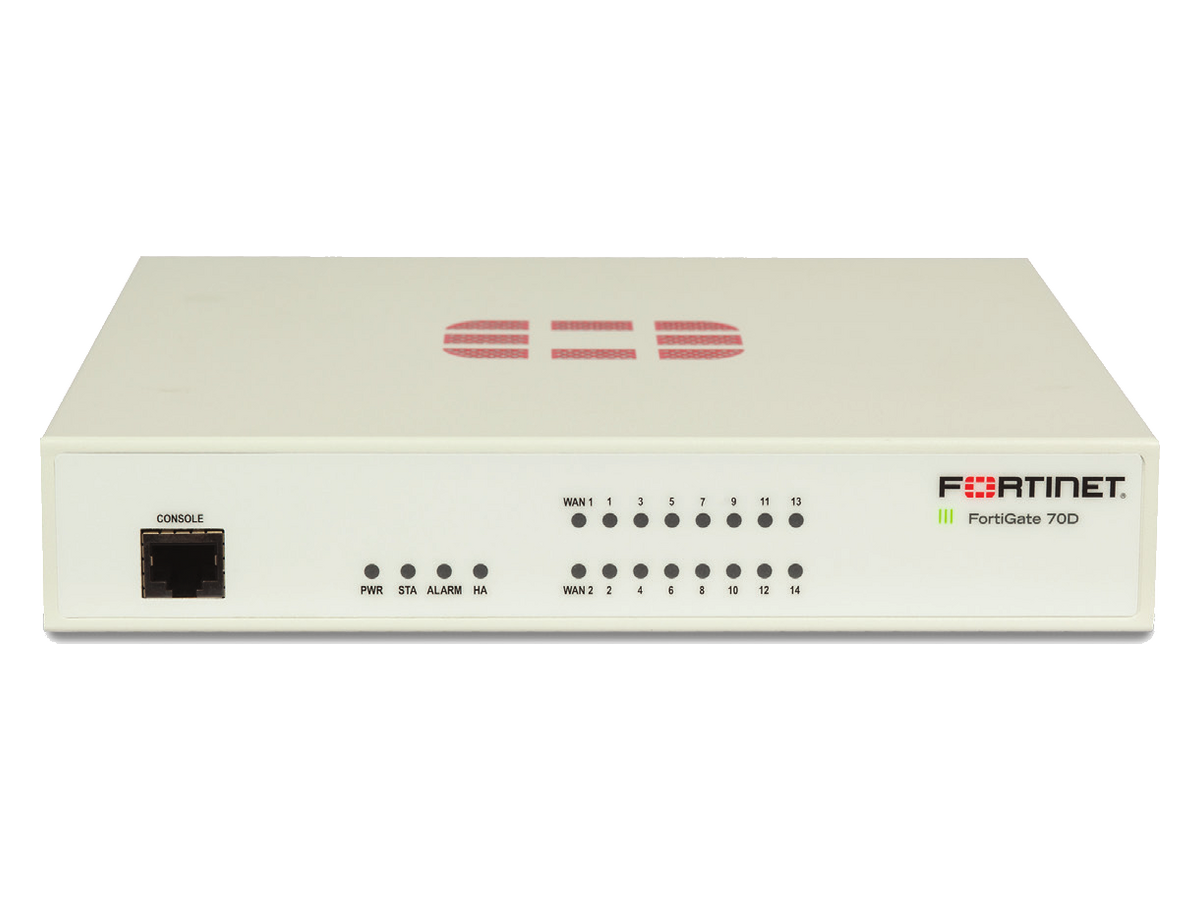

| FortiGate 70D | FortiGate 70D-POE 1 1 |
|---|
| SOC2 | Desktop SOC2 Desktop POE 2 3 4 5 2 3 4 5 |
|---|
| Interfaces | Interfaces 1. Console Port 1. Console Port 2. USB Management Port 2. USB Management Port 3. 2x USB Ports 3. 2x USB Ports 4. 14x GE RJ45 Switch Ports 4. 10x GE RJ45 Switch and 4x RJ45 PoE Ports 5. 2x GE RJ45 WAN Ports 5. 2x GE RJ45 WAN Ports Install in Minutes with FortiExplorer |
|---|
| Powered by SPU SoC2 | The FortiExplorer™ wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. §§ Combines a RISC-based CPU with The application runs on Windows, Mac OS X desktops and laptops Fortinet’s proprietary SPU content and as well as popular mobile devices. Simply connect to the appropriate network processors for unmatched USB port on the appliance a |
|---|
| performance for smaller networks | The FortiGate 70D series includes USB ports that allow you to plug in a compatible third-party 3G/4G USB modem, §§ Supports firewall acceleration across all packet sizes for providing additional WAN connectivity or a redundant link for maximum throughput maximum reliability. §§ Delivers accelerated UTM content processing for |
|---|
| superior performance and protection | Compact and Reliable Form Factor Designed for small environments, you can place it on a desktop or §§ Accelerates VPN performance for high speed, secure wall-mount it. It is small, lightweight yet highly reliable with superior remote access MTBF (Mean Time Between Failure), minimizing the chance of a network disruption. |
|---|
| generation security platform. | AV Comparatives and ICSA validated security and performance. §§ Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings. §§ Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework. §§ Solve your networking needs with extensive routing, switching, WiFi, LAN and WA |
|---|
| FortiGuard™ Security Services | FortiCare™ Support Services |
|---|
| enforcement agencies: | §§ Comprehensive Support — For customers who need around- security intelligence, distributed via Fortinet Distributed Network hardware replacement. |
|---|
| to all Fortinet platforms. | §§ Advanced Services — For global or regional customers who 170 unique zero-day vulnerabilities to date, totaling millions of service level agreements, extended software support, priority |
|---|
| automated signature updates monthly. | escalation, on-site visits and more. intelligence, Fortinet’s network security platform is tested and security implementations that require architecture and design validated by the world’s leading third-party testing labs and services, implementation and deployment services, operational |
|---|
| customers globally. | services and more. Enterprise Bundle FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broades |
|---|
| FG-70D | FG-70D-POE FG-70D FG-70D-POE |
|---|
| Hardware Specifications | Environment |
|---|
| GE RJ45 WAN Ports | 2 2 Power Required 100–240V AC, 50–60 Hz |
|---|
| GE RJ45 Switch Ports | 14 10 Maximum Current 110 V / 1.5 A, 110 V / 2 A, |
|---|
| GE RJ45 PoE Ports | – 4 220 V / 0.75 A 220 V / 1 A |
|---|
| USB Ports (Client / Server) | 1/2 1/2 Total Available PoE Power Budget* – 61.6 W |
|---|
| Console (RJ45) | 1 1 Power Consumption (Average / Maximum) 17 / 21 W 59 / 89 W |
|---|
| Heat Dissipation | 72 BTU/h 303 BTU/h System Performance |
|---|
| 工作溫度 | 32–104°F (0–40°C) |
|---|
| Firewall Throughput | 3.5 / 3.5 / 3.5 Gbps |
|---|
| 儲存溫度 | -31–158°F (-35–70°C) (1518 / 512 / 64 byte UDP packets) |
|---|
| Humidity | 20–90% non-condensing |
|---|
| Firewall Latency (64 byte UDP packets) | 4 μs |
|---|
| Operating Altitude | Up to 7,400 ft (2,250 m) |
|---|
| Firewall Throughput (Packets Per Second) | 5.3 Mpps |
|---|
| Concurrent Sessions (TCP) | 2 Million Compliance |
|---|
| New Sessions/Second (TCP) | 4,000 Regulatory Compliance FCC Part 15 Class B, FCC Part 15 Class B/A, |
|---|
| Firewall Policies | 5,000 C-Tick, VCCI, CE, C-Tick, VCCI, CE, UL/ |
|---|
| UL/cUL, CB | cUL, CB |
|---|
| IPsec VPN Throughput (512 byte packets) | 1 Gbps |
|---|
| Gateway-to-Gateway IPsec VPN Tunnels | 200 Certifications |
|---|
| Client-to-Gateway IPsec VPN Tunnels | 1,000 ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
|---|
| SSL-VPN Throughput | 35 Mbps |
|---|
| Concurrent SSL-VPN Users | 200 Dimensions (Recommended Maximum) Height x Width x Length (inches) 1.72 x 8.5 x 8.78 |
|---|
| IPS Throughput (HTTP / Enterprise Mix) 1 | 275 / 41 Mbps Height x Width x Length (mm) 44 x 216 x 223 |
|---|
| SSL Inspection Throughput 2 | 35 Mbps Weight 3.5 lbs (1.6 kg) |
|---|
| Application Control Throughput 3 | 34 Mbps Form Factor Desktop |
|---|
| NGFW Throughput 4 | 25 Mbps Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on |
|---|
| Threat Protection Throughput 5 | 22.5 Mbps 512 byte UDP packets using AES-256+SHA1. 1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix. 2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA. |
|---|
| CAPWAP Throughput 6 | 250 Mbps 3. Application Control performance is measured with 64 Kbytes HTTP traffic. 4. NGFW performance is measured with |
|---|
| Virtual Domains (Default / Maximum) | 10 / 10 IPS and Application Control enabled, based on Enterprise Traffic Mix. 5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix. 6. CAPWAP performance is |
|---|
| Maximum Number of FortiAPs | 32 / 16 based on 1444 byte UDP packets. (Total / Tunnel Mode) *Maximum loading on each PoE port is 15.4 W (802.3af). |
|---|
| Maximum Number of FortiTokens | 100 |
|---|
| Maximum Number of Registered FortiClients | 200 |
|---|
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
|---|
| Product | SKU Description |
|---|
| FortiGate 70D-POE | FG-70D-POE 16x GE RJ45 ports, (including 2x WAN ports, 10x Switch RJ45 ports, 4x RJ45 PoE ports), Maximum managed FortiAPs (Total / Tunnel) 32 / 16. Optional Accessory |
|---|
| Rack mount tray | SP-RACKTRAY-01 Rack mount tray for FG-30D, FG-40C, FG-50/51E, FG-60C, FG-60D/-POE, FG-70D, FG-80D, FG-90D/-POE, FAD-100E, FRC-100D, FWB-100D, FML-60D, FVE-100E. |
|---|
