| GPI-115 | GPI-130 GPI-145 |
|---|
| Number of Ports | 2:1 for data in, 1 for data and power out 2:1 for data in, 1 for data and power out 2:1 for data in, 1 for data and power out |
|---|
| Pass-through Data Rates | 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000Mbps, 2.5/5/10Gbps |
|---|
| Maximum Cable Run | 100 meters or 330 feet which corresponds to 100 meters or 330 feet which corresponds to 100 meters or 330 feet which corresponds to |
|---|
| Ethernet limits | Ethernet limits Ethernet limits |
|---|
| LED 指示燈 | Power On/Off and overload conditions Power On/Off and overload conditions Power On/Off and overload conditions |
|---|
| Connectors | Shielded RJ-45, EIA 568A and 568B Shielded RJ-45, EIA 568A and 568B Shielded RJ-45, EIA 568A and 568B |
|---|
| MTBF | 100 000 hrs. @25ºC 100 000 hrs. @25ºC 200 000 hrs. @ 25ºC |
|---|
| Power over Ethernet Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Data Pairs 1/2 (-), 3/6 (+) |
|---|
| Output Power Voltage: 50V DC | Output Power Voltage: 55V DC Spare Pairs 7/8 (-), 4/5 (+) |
|---|
| Output Power: 15.4 Watts | Output Power: 36 Watts Output Power Voltage: 55 Vdc nominal |
|---|
| Input Power Requirements | AC Input Voltage: 90V to 264V AC AC Input Voltage: 100V to 240V AC AC Input Voltage: 100 to 240 Vac |
|---|
| AC Input Current: 0.5A @ 100V–240V AC | AC Input Current: 0.8A @ 100V–240V AC AC Input Current: 1.5A @ 100 Vac |
|---|
| AC Frequency: 47–63 Hz | AC Frequency: 50–60 Hz AC Frequency: 50 to 60 Hz |
|---|
| Operating Ambient Temperature | 32º–104ºF (0º–40ºC) 32º–104ºF (0º–40ºC) 32º–104ºF (0º–40ºC) |
|---|
| 儲存溫度 | -4º–158ºF (-20º–70ºC) -4º–158ºF (-20º–70ºC) -4º–158ºF (-20º–70ºC) |
|---|
| 工作濕度 | Maximum 90%, non-condensing Maximum 90%, non-condensing Maximum 90%, non-condensing |
|---|
| Storage Humidity | Maximum 95%, non-condensing Maximum 95%, non-condensing Maximum 95%, non-condensing |
|---|
| Heat Dissipation | 13 BTU/h (@ 240V AC) 20 BTU/h (@ 240V AC) 36 BTU/Hr (@ 240V AC) |
|---|
| Height x Width x Length (inches) | 1.28 x 2.09 x 5.5 1.28 x 2.09 x 5.5 1.28 x 2.09 x 5.5 |
|---|
| Height x Width x Length (mm) | 32.5 x 53 x 140 32.5 x 53 x 140 32.5 x 53 x 140 |
|---|
| 重量 | 0.44 lbs (200 g) 0.44 lbs (200 g) 0.73 lbs (330g) |
|---|
| Regulatory Compliance | IEEE 802.3af (PoE), RoHS Compliant, IEEE 802.3at (PoE), RoHS Compliant, IEEE 802.3bt (PoE), RoHS Compliant, |
|---|
| WEEE Compliant, CE | WEEE Compliant, CE WEEE Compliant, CE |
|---|
| Electromagnetic Emission and | FCC Part 15, Class B, EN 55022 Class B, FCC Part 15, Class B, EN 55022 Class B, FCC Part 15, Class B |
|---|
| Immunity | EN 55024, VCCI EN 55024, VCCI EN 55032 Class B EN 55024 VCCI |
|---|
| Safety | UL/cUL per IEC 60950-1, UL/cUL per IEC 60950-1, UL/IEC/EN 62368-1 |
|---|
| GS Mark per IEC 60950-1 | GS Mark per IEC 60950-1 |
|---|

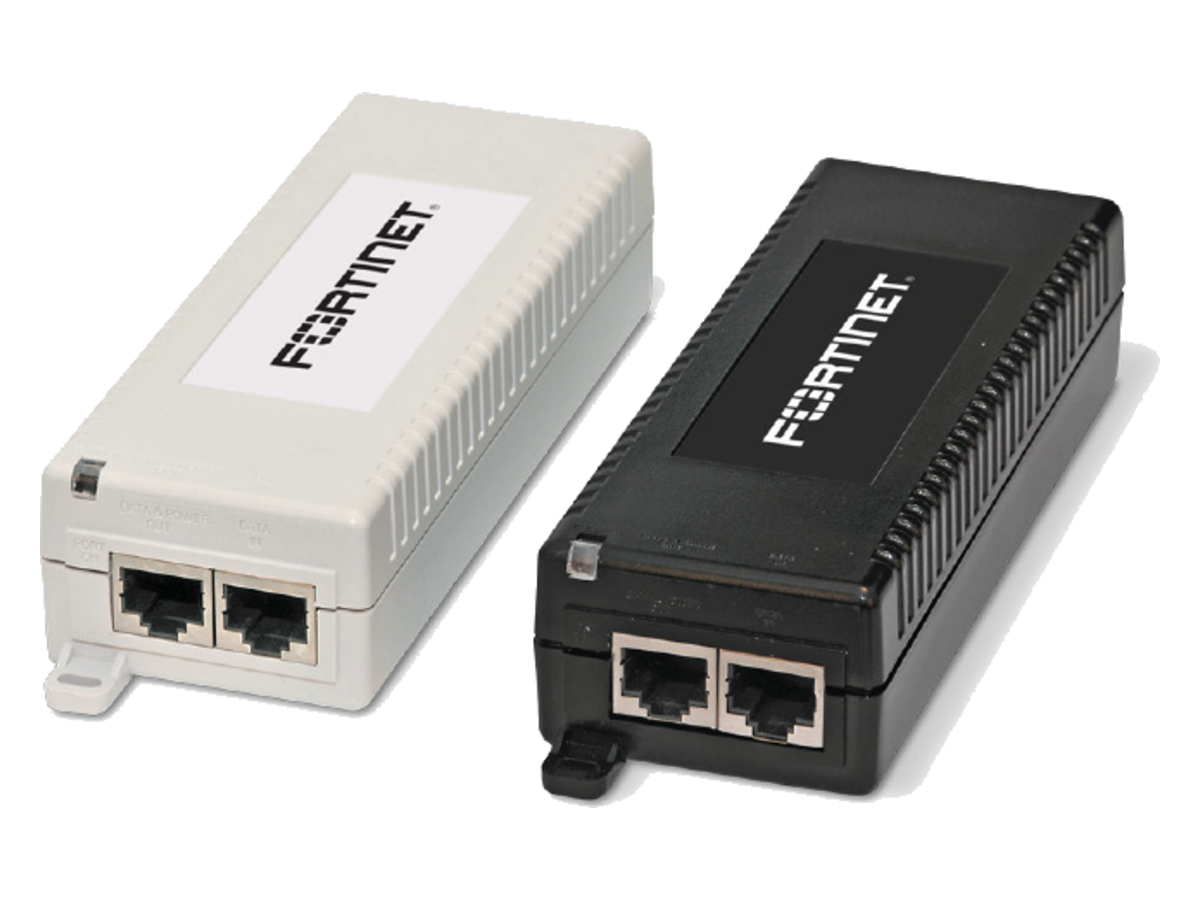

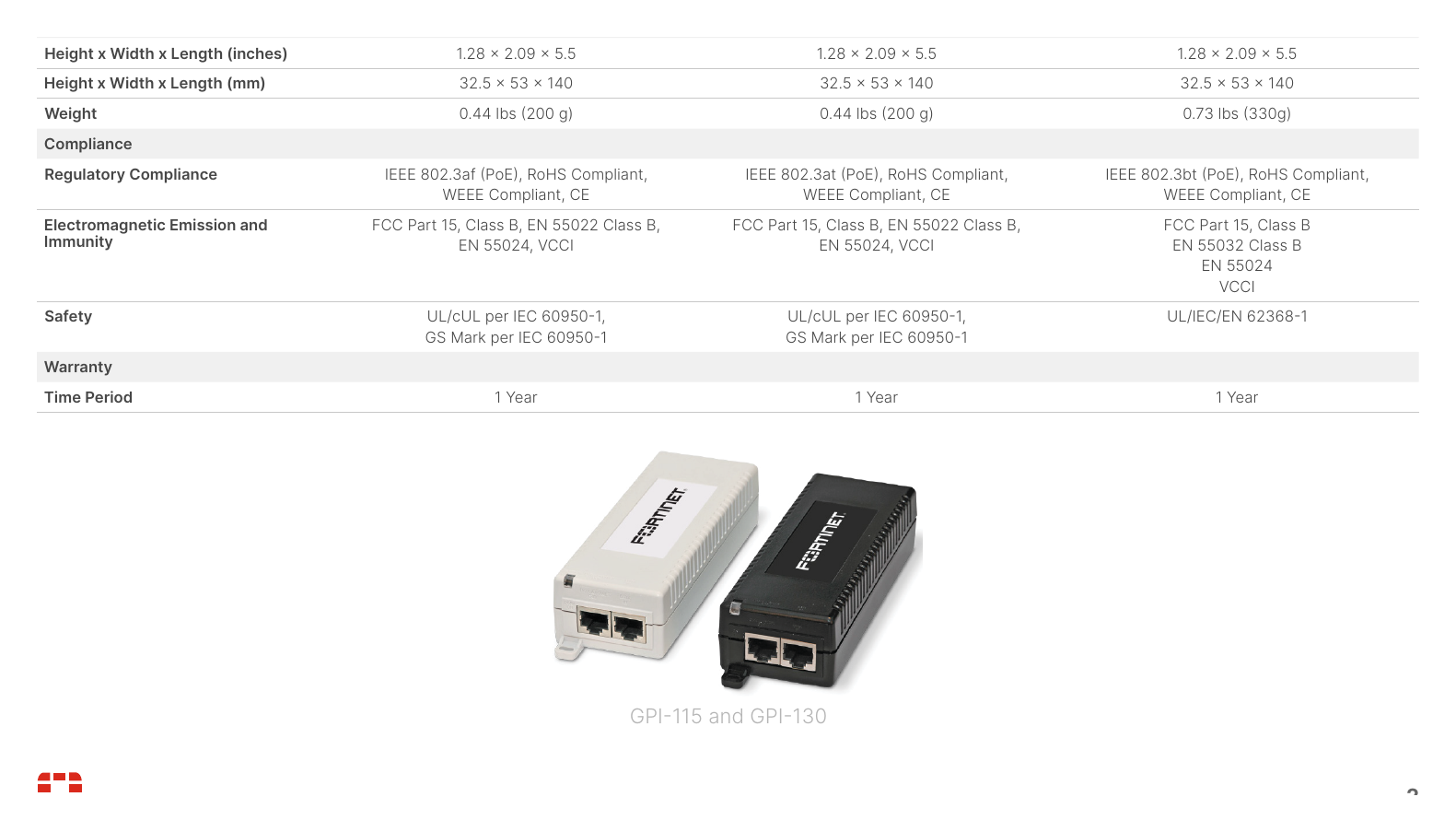

| Time Period | 1 Year 1 Year 1 Year GPI-115 and GPI-130 |
|---|
| Fortinet Wireless Accessories Portfolio | Data Sheet |
|---|
| SP-FAP200-PA-XX* | SP-FAP250-PA-10 SP-FAP400-PA-XX SP-FAP43F-PA-XX-5 SP-FAP23J-PA-10* |
|---|
| Input Power | 100-240V AC 100-240V AC 100-240V AC 100-240V AC 100-240V AC |
|---|
| Output Power | 30W (12V DC @ 2.5A) 48W (12V DC @ 4A) 36W (12V @ 3A) 30W (12V @ 2.5A) 50W (48V @ 1.04A) |
|---|
| 工作溫度 | 0℃ to 40℃ 0℃ to 50℃ 0℃ to 40℃ 0℃ to 40℃ 0℃ to 40℃ (32ºF to 104ºF) (32ºF to 122ºF) (32ºF to 104ºF) (32ºF to 104ºF) (32ºF to 104ºF) |
|---|
| FAP-221E/223E | ✓⃝ — — — — |
|---|
| FAP-231K | ✓⃝ — — — — |
|---|
| FAP-231F | ✓⃝ ✓⃝ — — — |
|---|
| FAP-U231F | ✓⃝ ✓⃝ — — — |
|---|
| FAP-231G/233G | ✓⃝ ✓⃝ — — — |
|---|
| FAP-431F/433F | — — ✓⃝ — — |
|---|
| FAP-431G/433G | — ✓⃝ ✓⃝ — — |
|---|
| FAP-441K/443K | — ✓⃝ — — — |
|---|
| FAP-241K/243K | — ✓⃝ ✓⃝ — — |
|---|
| FAP-831F | — — ✓⃝ — — |
|---|
| FAP-U431F | — — — ✓⃝ — |
|---|
| FAP-U433F | — — — ✓⃝ — |
|---|
| FAP-23JF | — — — — ✓⃝ |
|---|
| FAP-23JK | — — — — ✓⃝ For those AC adapters that lack an AC power cable, a C14 power cable can be obtained by ordering SP-FGPCOR-XX with XX being replaced with the applicable country code as follows: |
|---|
| SP-FAP400 Series | Code Outlet Type Example Countries |
|---|
| AU | I Australia, Argentina |
|---|
| EU | C, F European countries |
|---|
| UK | G Great Britian |
|---|
| US | B USA, Mexico, Canada, Japan SP-FAP200/250 Series SP-FAPU24/23J Series |
|---|
| FAP-400-MNT-10 | FAP-400-SMNT-20 FAP-400-RMNT-20 |
|---|
| Wall Mount | Wall Mount |
|---|
| T-Rail Mount | T-Rail Mount T-Rail Mount 9/16 in and 15/16 in Standard 9/16 in and 15/16 in Standard 9/16 in and 15/16 in Recessed 9/16 in and 15/16 in Recessed |
|---|
| Number of Kits | 10 20 20 |
|---|
| FAP-U431F/U433F | ✓⃝ ✓⃝ ✓⃝ |
|---|
| FAP-231G | ✓⃝ ✓⃝ ✓⃝ |
|---|
| FAP-233G | ✓⃝ ✓⃝ ✓⃝ |
|---|
| FAP-431G | ✓⃝ ✓⃝ ✓⃝ |
|---|
| FAP-433G | ✓⃝ ✓⃝ ✓⃝ |
|---|
| FAP Ceiling/Wall Mount Bracket | FAP-400 Wall/Ceiling Mount FAP-400 Recessed T-Rail Mount |
|---|
| Mounting Type | Standard T-Rail, Wall, or Ceiling |
|---|
| FAP-431F | ✓⃝ |
|---|
| FAP-433F | ✓⃝ FAP-ALL-MTL-5 Top (Top view) |
|---|
| FAP-SMNT-MTL-20 | FAP-MNT-Gbox-10pk |
|---|
| Adjustable Metallic Wall or | Enables mounting of FAPs |
|---|
| Ceiling Mount | with a 15/16” T-Bar mount to flat surfaces (Wall, Ceiling) outlet box mounting |
|---|
| FAP-231E | ✓⃝ ✓⃝ |
|---|
| FAP-421E/423E | ✓⃝ ✓⃝ |
|---|
| FAP-234G | ✓⃝ |
|---|
| FAP-234F | ✓⃝ |
|---|
| FAP-244K | ✓⃝ |
|---|
| FAP-432G | ✓⃝ |
|---|
| FAP-432FR | ✓⃝ |
|---|
| FAP-432F | ✓⃝ |
|---|
| FAP-HD-222KL | ✓⃝ |
|---|
| FAP-HD-224KL | ✓⃝ |
|---|
| FAP-HD-224KR | ✓⃝ |
|---|
| FAP-HD-444KN | ✓⃝ |
|---|
| FAP-HD-444KW | ✓⃝ |
|---|
| FAP-U234F | ✓⃝ |
|---|
| FAP-U432F | ✓⃝ FAP-221E-MNT-50 Wall Mount T-Rail |
|---|
| FAP-MNT-WJ-20 | FAP-DESK-JK-10pk |
|---|
| Indoor/Outdoor | ✓⃝ |
|---|
| Inconspicuous | ✓⃝ |
|---|
| Harsh Environments | ✓⃝ |
|---|
| Stadiums and Arenas | ✓⃝ |
|---|
| Polycarbonate Cover | ✓⃝ |
|---|
| Gore Membrane Vent | ✓⃝ |
|---|
| Adapted Plate Included | ✓⃝ |
|---|
| FAP-221E/231E | ✓⃝ |
|---|
| FAP-231F/U231F | ✓⃝ |
|---|
| FAP-431F/U431F | ✓⃝ |
|---|
| FAP-233G/231G | ✓⃝ |
|---|
| FAP-433G/431G | ✓⃝ |
|---|
| FAP-433F/431F | ✓⃝ |
|---|
| FAP-U433F/U431F | ✓⃝ |
|---|
| FAP-441K | ✓⃝ |
|---|
| Product | SKU Description |
|---|
| POE Injectors | GPI-130 IEEE 802.3at-compliant single-port, mid-span, with 30 Watt Gigabit Ethernet (GE) PoE. |
|---|
| GPI-145 | IEEE 802.3bt-compliant single-port, mid-span, with 60 Watt 10/100/1000 Mbps, 2.5/5/10 Gbps PoE. |
|---|
| SP-FAP200-PA-XX | 12V, 2.5A, 30 Watt DC power supply. |
|---|
| SP-FAP23J-PA-10 | 54V, 1.2A, 65 Watt DC power supply (Pack of 10). |
|---|
| DC Power Supplies | SP-FAP250-PA-10 12V, 4A, 48 Watt DC power supply (extended temperature range); Pack of 10. |
|---|
| SP-FAP400-PA-XX | 12V, 3A, 36 Watt DC power supply. |
|---|
| SP-FAP43F-PA-XX-5 | 12V, 2.5A, 30 Watt DC power supply (Pack of 5). |
|---|
| FAP-400-SMNT-20 | Mounting brackets for standard/ wall or ceiling mount (Pack of 20). |
|---|
| FAP-400-RMNT-20 | Mounting brackets for recessed T-rail (Pack of 20). |
|---|
| Mounting Hardware | FAP-ALL-MTL-5 Metal mounting brackets for standard T-rail, wall, or ceiling mount (Pack of 5). |
|---|
| FAP-BRKT-MNT-5 | Wall or Mast mounting solution for outdoor Access Points (Pack of 5). |
|---|
| FAP-221E-MNT-50 | Complete wall and T-rail Mount Kit (Pack of 50). |
|---|
| FAP-MNT-ODR-5PK | Universal Articulating mounting bracket with Pole and Wall mounting accessories. |
|---|
| FAP-ENC-43X | Under-seat enclosure for stadiums and arenas. |
|---|
| FAP-ENC-12X10 | 12 x 10 x 6 inch NEMA 4X Polycarbonate Enclosure is intended for indoor or outdoor use. www.fortinet.com |
|---|
