HANWHA 3MP CCTV攝影機安裝・保養

Name: HANWHA 3MP SNO-7080R-KOR-2P-DATASHEET
Brand: Hanwha
SKU: 3MP

產品簡介

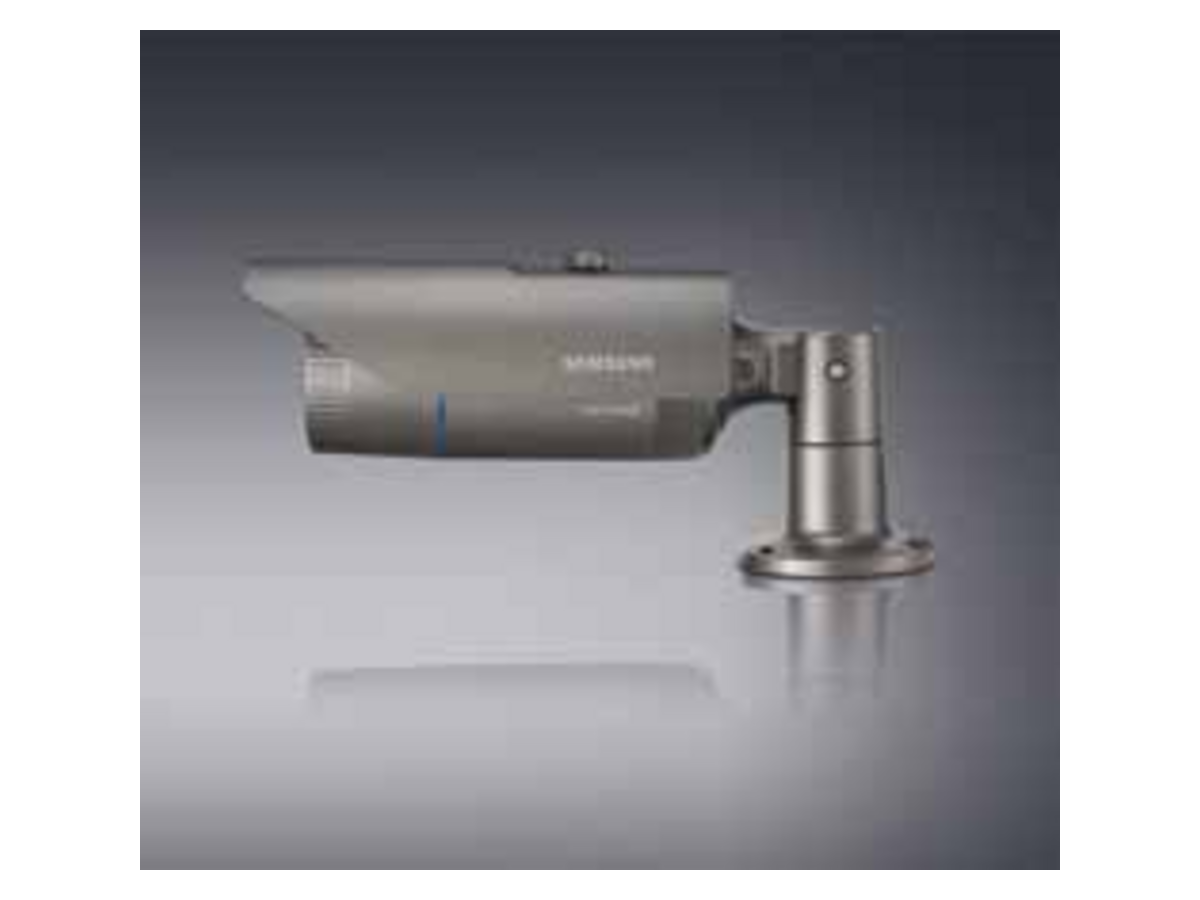

Hanwha 3MP 為High function 3 Megapixel IR Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 3MP 香港價格連安裝報價。

Imaging Device：1/2.8" 3M PS CMOS
Total Pixels：2,144(H) x 1,588(V)
Effective Pixels：2,096(H) x 1,561(V)
Scanning System：Progressive
Min. Illumination (TBD)：Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x), B/W : 0L

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/2.8" 3M PS CMOS
Total Pixels	2,144(H) x 1,588(V)
Effective Pixels	2,096(H) x 1,561(V)
Scanning System	Progressive
Min. Illumination (TBD)	Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x), B/W : 0Lux (F1.2, 50IRE, IR LED on)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Focal Length (Zoom Ratio)	3 ~ 8.5mm (2.8x) Motorized varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H : 94°(Wide) ~ 32.9°(Tele), V : 69.86°(Wide) ~ 24.92°(Tele)
Focus Control	Remote control via network (Manual, One-shot AF)
鏡頭類型	DC auto iris
Mount Type	Board-in type Operational
IR LED	32ea
Viewable Length	30m (98.43ft)
Camera Title	Off / On (Displayed up to 15 characters)
日夜切換	Auto (ICR) / Color / B/W / External B/W
Backlight Compensation	Off / BLC / HLC / WDR
寬動態 WDR	Off / On (Full HD WDR)
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Motion Detection	Off / On (4 programmable zones)
Privacy Masking	Off / On (1ea 4 point polygonal + 16ea rectangular zones)
Sens-up (Frame Integration)	Off / Auto (2x ~ 60x)
Gain Control	Off / Low / Medium / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Auto / A.FLK / Manual (1/30~30,000sec)
Flip / Mirror	Off / On
Intelligent Video Analytics	Scene change, Virtual line, Enter / Exit, Appear / Disappear

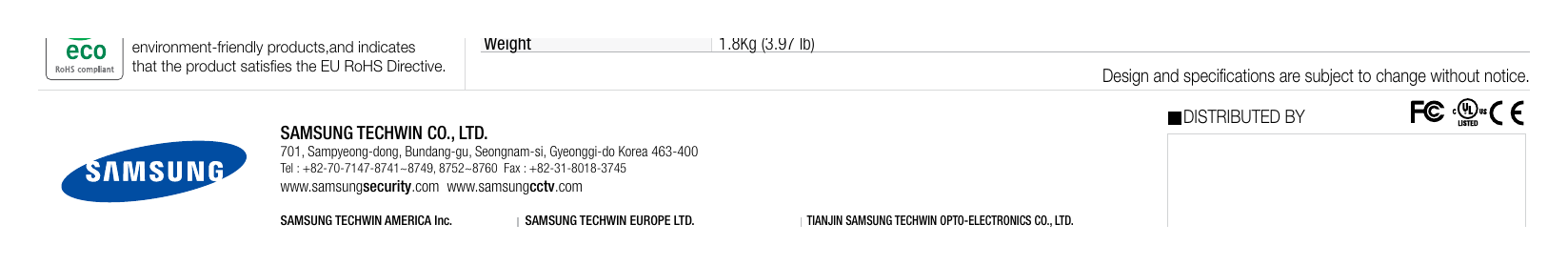

尺寸	Unit : mm (inch) Alarm I/O Input 1ea / Output 1ea (Relay)
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264, MJPEG 3M mode - 2 048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768,
解像度	800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 114.0 (4.49") 2M mode - 1920 x 1080P (Full HD), 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 114.0 (4.49") 640 x 360, 320 x 240, 320 x 180 3M mode - H.264 : Max. 20fps at all resolutions
Max. Framerate	MJPEG : 800 x 600 ~ 320 x 180 - 20fps, 1280 x 1024 ~1920 x 1080 - 15fps, 2048 x 1536 - 10fps 359.0 (14.13") 2M mode - H.264 : Max 30fps at all resolutions (When WDR on, Max. framerate is Max. 15fps.)MJPEG : 800 x 600 ~ 320 x 180 - 114.0 114.0(4.49") (4.49") 30fps, 1280 x 1024 ~ 1920 x 1080 - 15fps 383.0 (15.08")
Smart Codec	Yes (Area based method, Face detection method)
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 6 profiles)
Audio I/O	Mic / Line in, Line out
Audio Compression Format	G.711 u-law
Audio Communication	Bi-directional audio 302.6 (11.89") IP IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE,FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS
安全	HTTPS(SSL) login authentication, Digest login authentication 383.0 (15.08") 359.0 (14.13") IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Memory Slot	SD/SDHC memory slot (4GB included)
ONVIF Conformance	Yes
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek 200 (7.87")
Web Viewer	Supported OS : Windows XP / VISTA / 7, MAC OS, Supported Browser : Internet Explorer 7.0/8.0, Firefox, Google Chrome, Apple Safari
Central Management Software	NET-i viewer Environmental
Operating Temperature / Humidity	24V AC : -50°C ~ +50°C (-58°F ~ +122°F) / Less than 90% RH 12V DC, PoE : -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
防護等級	IP66 Grade (Waterproof) Electrical
Input Voltage / Current	12V DC, 24V AC, PoE (IEEE802.3af)
功耗	16.5W (Heater on), 11.3W (Heater off)
The Eco mark represents	Color / Material Dark gray / Metal
Samsung Techwin’s will to create	Dimensions (WxHxD) Ø114.0 x 388.0mm (Ø4.49" x 15.28") environment-friendly products,and indicates Weight 1.8Kg (3.97 lb) that the product satisfies the EU RoHS Directive. Design and specifications are subject to change without notice. DISTRIBUTED BY SAMSUNG TECHWIN CO., LTD. 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400 Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-
