| Inputs | 8CH(1Vp-p 75ohm, BNC) AHD(8MP, 5MP, 4MP, 1080p, 720p) |
|---|
| Analog camera | HDTVI(8MP, 5MP, 4MP, 1080p, 720p) Signal Type HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
|---|
| Network camera | Resolution 8MP ~ CIF |
|---|
| 網絡協議 | SUNAPI(Wisenet), ONVIF 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, Local Display 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
|---|
| Live | [Ananlg Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) Resolution * per CH [Network Camera] - Typ. 2MP(240fps) Performance |
|---|
| Compression | H.265, H.264, MJPEG (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH |
|---|
| Record Rate(Analog) | (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : upto SD Full fps * The maximum recording frame rate depends on the frame rate of the input camera. |
|---|
| Recording Bandwidth | Max. 80Mbps |
|---|
| Record | Resolution 8MP ~ CIF Normal, Dual Stream, Schedule(Continuous/Event), Mode Event (Pre/Post), Bookmark Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection,Tampering Event Trigger Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, |
|---|
| Event Action | Monitor Out, FTP, SUNAPI Command, Shotdown |
|---|
| Playback Bandwidth | Max. 32Mbps (10CH simultaneously) |
|---|
| User | Max. 4 Users (Local 1, Remote 3) |
|---|
| Search & Play | 10CH(Local Monitor), 10Ch (CMS), Simultaneous playback 4Ch (Wisenet Mobile), 1Ch(Web) |
|---|
| Fisheye Dewarping | CMS (only N/W Camera) |
|---|
| Supported HDD | Up to 6TB Storage |
|---|
| HDD Slot | SATA 4ea(Max 24TB) Set : Recorder, SEC, AVI File backup |
|---|
| Backup | Webviewer : AVI |
|---|
| Function | Max. 10 CH play, Date-time/title display Functions Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile |
|---|
| PTZ | Control Viewer, System Controller |
|---|
| Support Model | iOS, Android |
|---|
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
|---|
| Smart phone | Live(8ch) : Multi-Profile Support |
|---|
| Control | Playback(4Ch Multi Playback, Max 2MP) Event push |
|---|
| Max. Remote Users | Search(3), Live Unicast(10) |
|---|
| Redundancy | ARB Support |
|---|
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
|---|
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |
|---|
| HDMI | 1EA |
|---|
| VGA | 1EA |
|---|
| BNC | 8CH In / 1CH Out(Spot Output) |
|---|
| Audio | Out(1EA, RCA, Line) |
|---|
| Ethernet | RJ-45(10/100/1000BASE-T) In 8EA, Out 4EA |
|---|
| 警報 | - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
|---|
| USB | 2EA(Front USB2.0, Rear USB 3.0)) |
|---|
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
|---|
| Power inlet | 1EA AC |
|---|
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, |
|---|
| 語言 | Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental |
|---|
| 工作溫度 | 0°C to +40°C(+32℉ to +104℉) |
|---|
| 工作濕度 | 20% ~ 85% RH |
|---|
| Certification | UL, CE, FCC, KC, UKCA Electrical |
|---|
| Power Input | 100~240 VAC±10%, 50/60 Hz |
|---|
| 功耗 | Max. 100W (6T HDD 4ea) |
|---|
| Color / Material | Black / Metal |
|---|
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) |
|---|

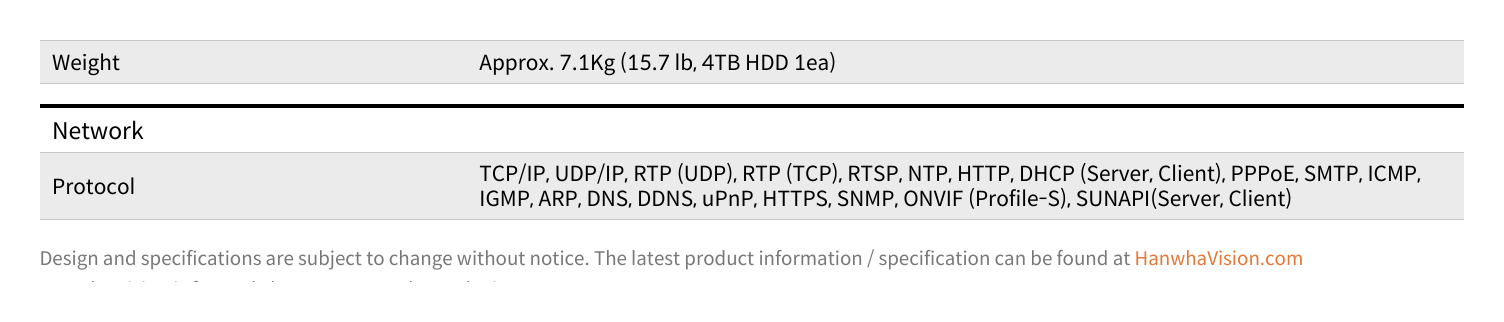

| 重量 | Approx. 7.1Kg (15.7 lb, 4TB HDD 1ea) TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
|---|
| DDNS | Wisenet DDNS Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H |
|---|
| Transmission speed | 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
|---|
| Transmission Bandwidth | Max. 64Mbps 8 Lline in (RCA 4 Line, Option : Audio Extension Cable) / Input/Output 1Line line out |
|---|
| Audio Communication | 2-Way |
|---|
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, |
|---|
| 安全 | Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) |
|---|
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer |
|---|
