| Inputs | Max. 128CH (* If clustering, 132CH) |
|---|
| Network camera | Resolution 12MP ~ CIF |
|---|
| 網絡協議 | Wisenet, ONVIF Dual if Full HD monitor Local Display Single if UHD monitor 1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Aut Multi Screen Display o Mode 1920fps@640x360 (128 division) 2200fps@640x360 (100 division) |
|---|
| 解像度 | 1080fps@1920x1080 (36 division) 450fps@2592x1944 (15 division) 270fps@3840x2560 (9 division) Performance |
|---|
| 操作系統 | Embedded Windows 10 IoT Enterprise (SSM preinstalled) |
|---|
| Compression | H.265, H.264, MJPEG, WiseStream(H.264, H.265) |
|---|
| Recording Bandwidth | Max. 520Mbps |
|---|
| Record | Event Profile, ARB, Dual-Track Video loss, Camera event(Sensor, MD, Passing, Entering, |
|---|
| Event Trigger | Exiting, Disappearing (Appearing), Tampering, Tracking, Face Detection, Audio Detection) Instant Viewer, Preset, Alarm Out, Pop-up, Sound and E- Event Action mail notification |
|---|
| Playback Bandwidth | Max. 150Mbps |
|---|
| User | Max. 1024 Users (132Ch concurrently) Search & Play |
|---|
| Simultaneous playback | Max 25Ch. (128Ch with Dual Recording) |
|---|
| Fisheye Dewarping | Console |
|---|
| Supported HDD | Up to 10TB |
|---|
| Storage | HDD Slot SATA 16ea |
|---|
| RAID | 0/1/5/6 |
|---|
| File backup | AVI, SEC Backup |
|---|
| Function | Manual Backup, Onetime Schedule Backup IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client) |
|---|
| DDNS | Wisenet DDNS |
|---|
| Input/Output | 128CH(network) |
|---|
| Audio | Compression G.711 u-law(PCM), G723, G726(ADPCM), AAC |
|---|
| Audio Communication | 2-Way Hanwha Vision CO., LTD. All rights reserved. 2/4 |
|---|
| Max Remote Users | 1024 (Tested) HTTPS(SSL) Login Authentication Digest Login Authentication |
|---|
| 安全 | IP Address Filtering User access log Device Certificate(Hanwha Techwin Root CA) |
|---|
| Viewer Software | SSM Client, SSM Mobile Functions Automatic device IP scanning, Add profile edit, Resolution, Fisheye dewarping mode, Hallway View |
|---|
| Camera Setup | Item Setup, Brightness/Contrast, Viewing the device settings(Device webpage), Exporting/Importing devices settings,, Updating the device firmware |
|---|
| Control | Via GUI, Controller (SPC-2000, SPC-7000) |
|---|
| Preset | 300 |
|---|
| Support Model | iOS, Android |
|---|
| Protocol Support | RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) Smart phone |
|---|
| Max. Remote Users | Max. 1024 Users (132Ch concurrently) |
|---|
| Failover | Active&Active, Active-Standby Redundancy |
|---|
| ARB | Support |
|---|
| HDD Key Lock | Yes |
|---|
| HDMI | 1EA |
|---|
| VGA | 1EA |
|---|
| DVI | 1EA |
|---|
| Ethernet | RJ-45(10/100/1000BASE-T) x 2 |
|---|
| USB | 6EA(Front 2, Back 4) |
|---|
| Power inlet | AC 2EA |
|---|
| System Control | Mouse, Keyboard English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, |
|---|
| 語言 | Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese Environmental |
|---|
| CPU | Xeon E3-1275 v5 (8M Cache 3.6GHz) |
|---|
| RAM | 8GB RAM 2EA |
|---|
| OS HDD | M.2 SSD 128Gb |
|---|
| 工作溫度 | +5°C ~ +40°C (+41°F ~ +104°F) |
|---|
| 工作濕度 | Less or equal to 80% Electrical |
|---|
| Power Input | 100 ~ 240VAC, 50 ~ 60Hz |
|---|
| 功耗 | 550W Dual |
|---|
| Color / Material | Silver / Metal |
|---|

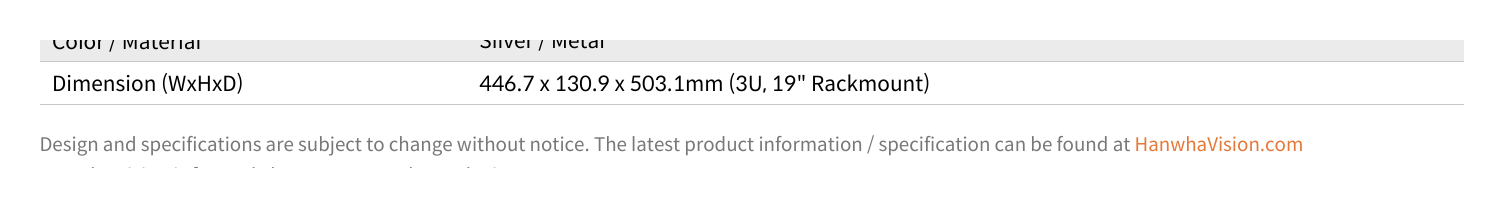

| Dimension (WxHxD) | 446.7 x 130.9 x 503.1mm (3U, 19" Rackmount) Hanwha Vision CO., LTD. All rights reserved. 3/4 |
|---|
| 重量 | 17.6Kg (HDD excluded) Hanwha Vision CO., LTD. All rights reserved.2020-07 4/4 |
|---|
