HANWHA SND-6011R CCTV攝影機安裝・保養

Name: HANWHA SND-6011R SND-6011R-ENG-1P-DATASHEET-20140402
Brand: Hanwha
SKU: SND-6011R

產品簡介

Hanwha SND-6011R 為2Megapixel Full HD Network IR Dome Camera SND-6011RN/P，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SND-6011R 香港價格連安裝報價。

Imaging Device：1/2.8" PS Exmor 2.38M CMOS
Total Pixels：1,952(H) x 1,236(V)
Effective Pixels：1,944(H) x 1,224(V)
Scanning System：Progressive
最低照度：Color : 0.3Lux (F2.0, 50IRE), 0.03Lux (2sec, 50IRE), B/W : 0

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SND-6011R SND-6011R-ENG-1P-DATASHEET-20140402 產品圖片

詳細規格

Imaging Device	1/2.8" PS Exmor 2.38M CMOS
Total Pixels	1,952(H) x 1,236(V)
Effective Pixels	1,944(H) x 1,224(V)
Scanning System	Progressive
最低照度	Color : 0.3Lux (F2.0, 50IRE), 0.03Lux (2sec, 50IRE), B/W : 0Lux (IR LED on)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P)
Focal Length (Zoom Ratio)	3.8mm fixed
Max. Aperture Ratio	F2.0
Angular Field of View	H : 84.5° / V : 45.8° / D : 98.8°
Min. Object Distance	0.5m (1.64ft)
Focus Control	Manual
Mount Type	Board-in type Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355° Operational
IR LED	10ea
Viewable Length	10m (32.81ft)
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
除霧	Off / Auto / Manual
Key Features	Motion Detection Off / On (4ea 4points polygonal zones)
Privacy Masking	Off / On (32ea polygonal zones)
• Max. 2M (1920 x 1080) resolution	Gain Control Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
• 3.8mm fixed lens	Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, Appear / Disappear, Face detection, with metadata
• Day & Night (ICR), WDR (120dB)	Alarm I/O Input 1ea Motion detection, Face detection, Tempering detection,
• Enhanced DIS, Defog	Alarm Triggers Video analytics, Network disconnection, Alarm input
• SD/SDHC/SDXC memory slot	Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
• Multi-crop streaming, IR LED (LED 10ea)	Ethernet RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
解像度	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 320 x 240, 320 x 180
尺寸	Unit : mm (inch) H.264 : Max. 30fps at all resolutions
Max. Framerate	MJPEG : 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
IP	IPv4, IPv6 56.9 (2.24") (2.24")
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour 101.8 (4.01") 56.9 HTTPS(SSL) login authentication, Digest login authentication (4.1") Security IP address filtering, User access log, 802.1x authentication 101.8
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Memory Slot	Micro SD/SDHC/SDXC Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded Application Programming Interfac ONVIF profile S, HTTP API v2.0, SVNP 1.2
Ø120.0	(4.72")
Ø120.0 (4.72")	Ø120.0 Ø120.0(4.72") (4.72") English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish, Norwegian Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher
Web Viewer	Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9.0 or Higher, Chrome 15.0 or Higher, Safari 5.1 or Higher Central Management Software SmartViewer, SSM (Samsung Security Manager) Environmental Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Electrical
Input Voltage / Current	PoE (IEEE802.3af class3)
功耗	Max. 6.6W
Color / Material	Ivory / Plastic
Dimensions (WxH)	Ø120.0 x 101.8mm (Ø4.72" x 4.01")

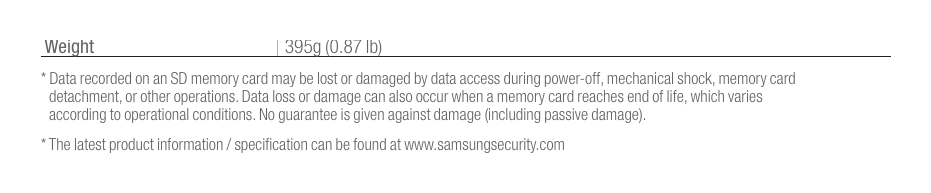

重量	395g (0.87 lb) * Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is given against damage (including passive damage). * The latest product information / spec
