HANWHA SND-6083 CCTV攝影機安裝・保養

Name: HANWHA SND-6083 SND-6083-POR-2P-DATASHEET
Brand: Hanwha
SKU: SND-6083

產品簡介

Hanwha SND-6083 為2M Network Dome Camera VIDEO，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SND-6083 香港價格連安裝報價。

Focal Length (Zoom Ratio)：3 ~ 8.5mm (2.8x) varifocal
Max. Aperture Ratio：F1.2
Angular Field of View：H : 106.18°(Wide) ~ 37.1°(Tele) / V : 58.42°(Wide) ~ 20.94°(
Min. Object Distance：0.5m (1.64ft)
Focus Control：Manual

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Focal Length (Zoom Ratio)	3 ~ 8.5mm (2.8x) varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H : 106.18°(Wide) ~ 37.1°(Tele) / V : 58.42°(Wide) ~ 20.94°(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Manual
鏡頭類型	DC auto iris
Mount Type	Board-in type PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355° OPERATIONAL
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (Electrical) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
除霧	Off / Auto / Manual
Key Features	Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Flip / Mirror	Off / On
• 3 ~ 8.5mm (2.8x) varifocal lens	Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Video analytics, Alarm input, Network disconnection
• WDR (120dB), Defog	File upload via FTP and E-mail, Notification via E-mail,
Alarm Events	Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
• Multi-crop streaming	Ethernet RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
• SD/SDHC/SDXC memory slot	Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• PoE, UPnP, Bi-directional audio support	H.264 : Max. 60fps at all resolutions
Max. Framerate	MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
尺寸	Unit : mm (inch) Streaming Capability Multiple streaming (Up to 10 profiles) Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
音訊輸入	Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack) G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format G.726	: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio 107.6(4.24") (4.24")
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, 107.6 SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour HTTPS(SSL) login authentication, Digest login authentication
安全	IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode SD/SDHC/SDXC - Motion Images recorded in the SD/SDHC/SDXC memory card Edge Storage Ø97.0 (3.82")
Ø97.0 (3.82")	Ø132.1 (5.2")
Ø132.1 (5.2")	can be downloaded. NAS (Network Attached Storage) Application Programming Interface ONVIF profile S/G, HTTP API (SUNAPI) 2.0, SVNP 1.2 English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language	Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7
Accessories (Optional)	Web Viewer Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8) Mozilla Firefox (Ver. 19 ~ 9) * Windows only Google Chrome (Ver. 25 ~ 15) * Windows only Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B	SBP-300PM Central Management Software SmartViewer, SSM ENVIRONMENTAL Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH ELECTRICAL
Input Voltage / Current	12V DC ±10%, PoE (IEEE802.3af, Class3)

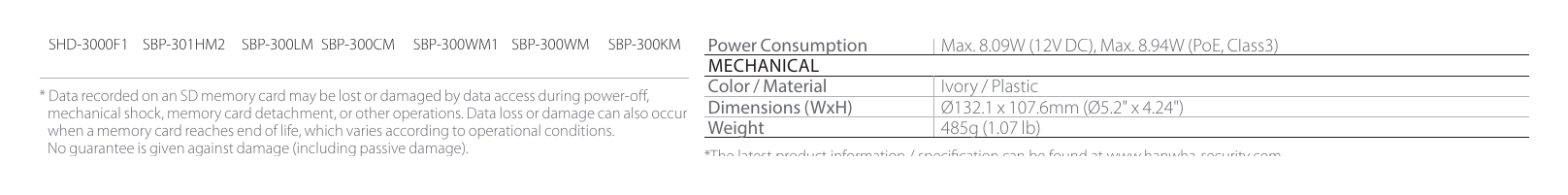

SHD-3000F1 SBP-301HM2	SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Power Consumption Max. 8.09W (12V DC), Max. 8.94W (PoE, Class3)
Color / Material	Ivory / Plastic mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24") when a memory card reaches end of life, which varies according to operational conditions. Weight 485g (1.07 lb) No guarantee is given against damage (including passive damage). *The latest product information / specification can be foun
