| Focal Length (Zoom Ratio) | 3.93 ~ 9.4mm (2.4x) motorized varifocal |
|---|
| Max. Aperture Ratio | F1.3 |
|---|
| Angular Field of View | H : 93.4°(Wide) ~ 39.2°(Tele) / V : 68.1°(Wide) ~ 29.3°(Tele) |
|---|
| Min. Object Distance | 0.5m (1.64ft) |
|---|
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
|---|
| Lens Type / Mount Type | DC auto iris, support P-Iris mode / Board-in type Pan / Tilt / Rotate |
|---|
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° Operational |
|---|
| Viewable Length | 30m (98.43ft), Smart IR |
|---|
| Camera Title | Off / On (Displayed up to 15 characters) |
|---|
| 日夜切換 | Auto (ICR) / Color / B/W / External / Schedule |
|---|
| Backlight Compensation | Off / BLC / WDR |
|---|
| 寬動態 WDR | 120dB |
|---|
| Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) |
|---|
| Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) |
|---|
| Motion Detection | Off / On (4ea, Rectangle) |
|---|
| Privacy Masking | Off / On (6ea, Rectangle) - Color : Black / Blue / Red / Grey / White / Green |
|---|
| Gain Control | Off / Low / Medium / High |
|---|
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Include mecury & Sodium) |
|---|
| Key Features | LDC (Lens Distortion Correction) Off / On (Level auto control) |
|---|
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
|---|
| Flip / Mirror | Off / On, Hallway : 90° /270° |
|---|
| • Max 5M (2592 x 1944) resolution | Intelligent Video Analytics Tampering, Audio detection - with metadata |
|---|
| Alarm I/O | Input 1ea / Output 1ea |
|---|
| • 30fps@5M, 60fps@2M | Alarm Triggers Alarm input, Motion detection, Tampering, Audio detection, Network disconnect Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output |
|---|
| • H.265, H.264, MJPEG support | Ethernet RJ-45 (10/100BASE-T) 5M mode : 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, |
|---|
| • Tampering, Audio detection | Resolution 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 2M mode : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, |
|---|
| • Hallway view (Rotate 90˚ / 270˚) | 5M mode - H.265 / H.264 : 30fps in all resolutions MJPEG : 2592 x 1944 ~ 2592 x 1464 : 2fps, 1920 x 1080 ~ 1600 x 1200 : 4fps |
|---|
| • LDC (Lens Distortion Correction) | Max. Framerate 1280 x 1024 ~ 1024 x 768 : 5fps, 800 x 600 ~ 320 x 240 : 15fps 2M mode - H.265 / H.264 : 60fps in all resolutions |
|---|
| Smart Codec | Manual mode (Area-based : 4ea) |
|---|
| Video Quality Adjustment | H.265 / H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control |
|---|
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
|---|
| 尺寸 | Unit : mm (inch) Streaming Capability Multiple streaming (Up to 3 profiles) - Total 3 stream at the same time (Including recording stream) |
|---|
| 音訊輸入 | Selectable (Mic in / Line in) Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
|---|
| Audio Out | Line out (3.5mm stereo mini jack), Max output level : 1Vrms |
|---|
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
|---|
| Audio Communication | Bi-directional audio (2-way) |
|---|
| IP | IPv4, IPv6 |
|---|
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour 118.5 (4.67") HTTPS(SSL) login authentication, Digest login authentication (4.67") Security IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) |
|---|
| Streaming Method | Unicast / Multicast 118.5 |
|---|
| Max. User Access | 10 users at unicast mode micro SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory |
|---|
| Edge Storage | card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
|---|
| Ø100.0 | (3.94") |
|---|
| Ø100.0 (3.94") | Ø160.0 (6.3") |
|---|
| Ø160.0 (6.3") | Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP, Samsung Techwin Open Platform |
|---|
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek Supported OS : Windows XP / VISTA / 7 / 8 / 8.1 or higher, MAC OS X 10.7 ~ 10.10 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), |
|---|
| Web Viewer | Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only |
|---|
| Accessories (Optional) | Central Management Software SmartViewer, SSM Environmental Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C (-31°F) Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Ingress Protection / Vandal Resistance IP66 / IK10 |
|---|
| SBP-300B | SBP-300PM Electrical |
|---|
| Input Voltage / Current | 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af, Class3) |
|---|
| 功耗 | Max. 12W/13.5W (24V AC, Heater off / on), Max. 10W/11.5W (12V DC, Heater off / on), Max. 11.5W/12.95W (PoE, Heater off / on) |
|---|
| Color / Material | Ivory / Aluminum |
|---|
| Dimensions (WxHxD) | Ø160.0 x 118.5mm (Ø6.3" x 4.67") |
|---|

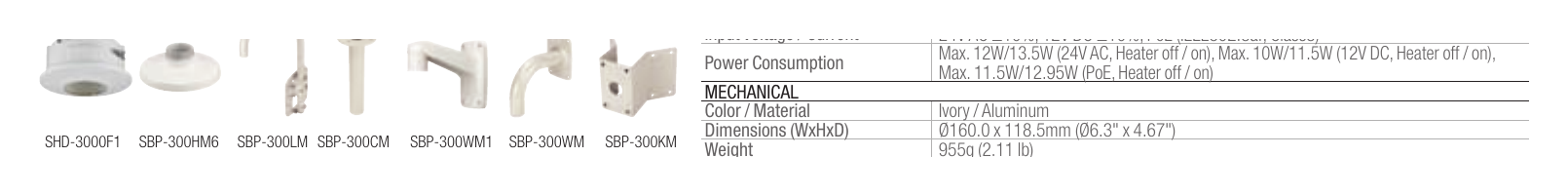

| SHD-3000F1 | SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM |
|---|
| 重量 | 955g (2.11 lb) * The latest product information / specification can be found at www.samsungsecurity.com 11-02-2016 |
|---|
