HANWHA SNZ-6320 CCTV攝影機安裝・保養

Name: HANWHA SNZ-6320 SNZ-6320
Brand: Hanwha
SKU: SNZ-6320

產品簡介

Hanwha SNZ-6320 為2Megapixel Full HD 32x Network Zoom Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SNZ-6320 香港價格連安裝報價。

Imaging Device：1/2.8" 2.38M CMOS
Total / Effective Pixels：1,952(H) x 1,116(V), 2.18M / 1,944(H) x 1,104(V) , 2.14M
Scanning System：Progressive
最低照度：Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.15Lux (1/30sec, F1.
S / N Ratio：50dB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Imaging Device	1/2.8" 2.38M CMOS
Total / Effective Pixels	1,952(H) x 1,116(V), 2.18M / 1,944(H) x 1,104(V) , 2.14M
Scanning System	Progressive
最低照度	Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.15Lux (1/30sec, F1.6, 30IRE) B/W : 0.03Lux (1/30sec, F1.6, 50IRE), 0.015Lux (1/30sec, F1.6, 30IRE)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
Focal Length (Zoom Ratio)	4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio	F1.6(Wide) / F4.4(Tele)
Angular Field of View	H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.80˚(Wide) ~ 1.26˚(Tele)
Min. Object Distance	1.5m (4.92ft)
Focus Control	Auto / Manual / One push
Lens / Mount Type	DC auto iris / Board-in type Operational
Camera Title	Off / On (Displayed up to 45 characters)
日夜切換	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
寬動態 WDR	120dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
除霧	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 2 points of rectangle)
Gain Control	Off / Low / Middle / High
Key Features	White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Max. 2M (1920 x 1080) resolution	Digital Zoom 16x
Flip / Mirror	Off / On
Remote Control Interface	RS-485 Video analytics, Alarm input, Network disconnection
• Day & Night (ICR), WDR (120dB)	File upload via FTP and E-mail, Notification via E-mail, Local storage(SD/SDHC/SDXC) or Alarm Events
• Intelligent video analytics	NAS recording at Network disconnected & Event (Alarm Triggers), External output
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
尺寸	Unit : mm (inch) Resolution 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 H.264 : Max. 60fps at all resolutions
Max. Framerate	MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
音訊輸入	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack), Max output level : 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour 59.9 (2.36") (2.36")
安全	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication 59.9
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Edge Storage	SD/SDHC/SDXC - motion Images recorded in the SD/SDHC/SDXC memory card can be 134.3 134.3 (5.29") (5.29") downloaded. NAS (Network Attached Storage) 72.0 (2.83") 72.0 (2.83") 135.4 135.4 (5.33") (5.33") Application Programming Interface ONVIF profile S, SUNAPI 2.0, SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 / 10.8 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11),
Web Viewer	Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 32)
Accessories (Optional)	Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only Central Management Software SmartViewer, SSM, Mobile viewer Environmental Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

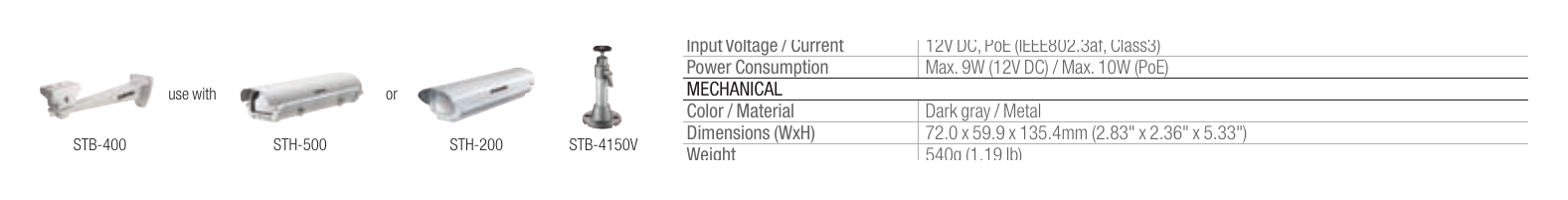

SHB-4300H/4300H1/4300H2	SHB-4200/4200H Electrical
Input Voltage / Current	12V DC, PoE (IEEE802.3af, Class3)
功耗	Max. 9W (12V DC) / Max. 10W (PoE)
use with	or Mechanical
Color / Material	Dark gray / Metal
Dimensions (WxH)	72.0 x 59.9 x 135.4mm (2.83" x 2.36" x 5.33")
STB-400	STH-500 STH-200 STB-4150V
重量	540g (1.19 lb) * The latest product information / specification can be found at www.samsungsecurity.com 21-07-2015 ⓒ 2015 Hanwha TECHWIN CO., LTD. ALL RIGHTS RESERVED.
