| Input Channel | 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC 16CH BNC, 1.0 Vp-p / 75Ω composite PAL |
|---|
| Input Signal & Resolution | CVBS, AHD(1, 2&4MP), CVI(1 & 2MP), TVI(1 & 2MP) Auto / Detection |
|---|
| Video Out | 1 HDMI OUT (16 multi Image, 1920x1080) |
|---|
| Motion Detection | Off / On |
|---|
| Privacy Masking | Off / On (4ea rectangular zones) |
|---|
| De-Interlacing | Support |
|---|
| Alarm I/O | 16 Input / 4 Output |
|---|
| Alarm Trigger | Motion detection, Alarm input, Video loss, Tampering, Network disconnect |
|---|
| Alarm Events | File Upload Via FTP, E-mail |
|---|
| Audio I/O | 4 Line Input / 1 Line Output (1 NO/COM/NC, 3 NO/COM) |
|---|
| Remote Control Interface | 1ea RS-485 (Half duplex) |
|---|
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D |
|---|
| Coaxial Control | NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol) |
|---|
| Ethernet | 1 RJ-45 10/100/1000 BASE-T |
|---|
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG 2560 x 1440, 1920 x 1080, 1280 x 720, 928 x 480(N), 928 x 240(N), 704 x 480(N), |
|---|
| 解像度 | 704 x 240(N), 640 x 360, 352 x 240(N), 928 x 576(P), 928 x 288(P), 704 x 576(P), 704 x 288(P), 640 x 360, 352 x 288(P) - Main Stream 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) |
|---|
| Max. Framerate | - Sub Stream WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) - MJPEG : 2fps @ 1920x1080, 1280x720, 960H, D1 |
|---|
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : CBR |
|---|
| Streaming Capability | Multiple Streaming (Up to 3 Profiles per channel) |
|---|
| Audio Compression Format | G.711 u-law |
|---|
| IP | IPv4, IPv6 TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 48 users(4 Users/CH) at Unicast Mode English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin WebViewer Supported Browser : Google Chrome 54, MS Edge 38, IE11, Mozilla Firefox 49 (Windows 64bit only), Apple Safari 9 (Mac OS X only) FIRS |
|---|
| SPE-1610N | SPE-1610P ONVIF profile S, SUNAPI (HTTP API) SmartViewer, SSM, WiseNet Mobile Viewer, NVR (Hanwha Techwin, P/X/Q series) |
|---|
| Operating Temperature / | -10°C ~ +45°C / 20% ~ 80% RH |
|---|
| Humidity | (-10°C ~ +40°C when installed in RACK) |
|---|
| Input Voltage / Current | DC12V |
|---|
| 功耗 | MAX : 24W (12V, 2A) |
|---|
| Color / Material | Black / Metal |
|---|
| Dimension (WxHxD) | 370.0 x 47.5 x 330.9mm (14.57" x 1.87" x 13.03") |
|---|

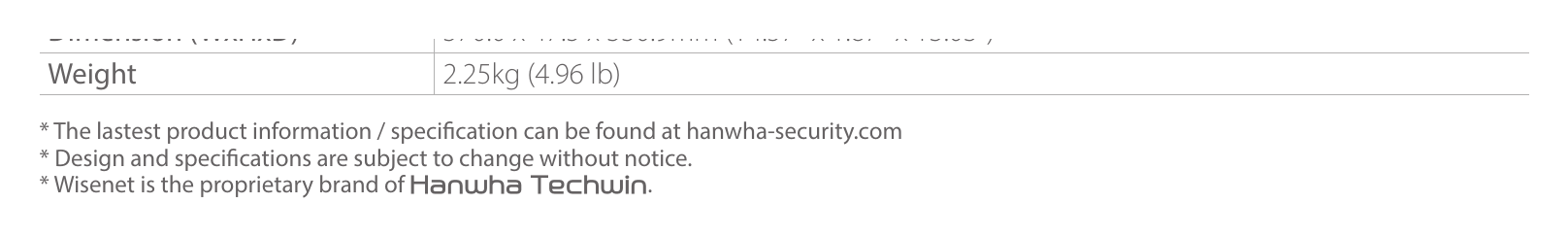

| 重量 | 2.25kg (4.96 lb) FIRST EDITION 06-2019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved. |
|---|
