HANWHA SRD-443 CCTV攝影機安裝・保養

Name: HANWHA SRD-443 SRD-443-ENG-2P-DATASHEET
Brand: Hanwha
SKU: SRD-443

產品簡介

Hanwha SRD-443 為4CH CIF Real-time Compact Design DVR Display，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SRD-443 香港價格連安裝報價。

解像度：NTSC : 720 x 480 / PAL : 720 x 576
Frame Rate：NTSC : 120fps / PAL : 100fps
Live：Resolution NTSC : 720 x 480 / PAL : 720 x 576
Multi Screen Display：1 / 4 / Sequence / PIP Performance
Operating System Embedded：Linux

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

解像度	NTSC : 720 x 480 / PAL : 720 x 576
Frame Rate	NTSC : 120fps / PAL : 100fps
Live	Resolution NTSC : 720 x 480 / PAL : 720 x 576
Multi Screen Display	1 / 4 / Sequence / PIP Performance
Operating System Embedded	Linux
Compression	H.264 NTSC : Up to 30fps@704 x 480 / PAL : Up to 25fps@704 x 576
Record Rate	NTSC : Up to 60fps@704 x 240 / PAL : Up to 50fps@704 x 288 NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
Recording	Mode NTSC / PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event	Video loss, Motion (Level 1 ~ 10), Alarm
Overwrite Modes	Selectable (Stop / Continuous)
Pre-alarm	Up to 5sec
Post-alarm	Up to 6 hour (5,10, 20, 30sec,1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search Mode	Date/Time, Event, Backup, POS, Motion (*All search included preview function) Search &
Playback	Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only Playback Function Slow forward / backward (1/2x, 1/4x, 1/8x)
Transmission Speed	CIF 120/100fps Up to 4Mbps, Unlimited (4M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / Bandwidth
Key Features	300 / 200 / 100 / 50kbps
Network	Bandwidth Control Automatic
• 4CH CIF real-time DVR	(IPv4) Stream H.264 (CIF)
Max. Remote Users	Search 2 / Live unicast 4 / Live multicast 20
Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
• VGA / Composite video output	Monitoring SmartViewer, Webviewer, SSM (CMS)
管理平台	Android, iOS
Smart Phone Protocol Support	RTP, RTSP, HTTP, CGI
• Smart phone support (Android / iOS)	Max. Remote Users Live 2, Search 1
Internal HDD	Up to 1 SATA HDD
Storage	USB (Backup) 2 USB ports
File Format (Backup)	BU (DVR player), EXE (Include player), AVI
Password Protection	1 Admin, 10 Group, 10 User per 1 group Security
Data Authentication	Watermark
VGA	1 VGA (1024 x 768) *Main composite or VGA selected in booting

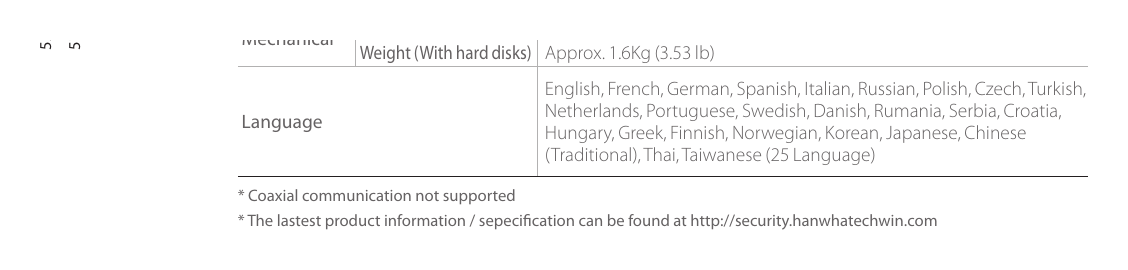

尺寸	Unit : mm (inch)
Monitors	Main Composite 1 BNC (1 Vpp, 75 ohm)
Spot Composite	Analgo spot (1 BNC, 1 Vpp, 75 ohm)
Inputs / Output	4CH line in / 1CH line out
Audio	Compression G.711
取樣率	8KHz Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO), Inputs / Output 224.0(8.82") (8.82") (9.25") 235.0(9.25")
警報	Rating : 24V DC / 1A, 125V AC / 0.5A
Remote Notification	Notification via e-mail (8.82") (9.25") 224.0224.0 235.0235.0
Ethernet	1 RJ-45 10/100 Base-T
Serial Interface	RS-485 (Half ) for PTZ, System keyboard
USB	USB 2.0, 2 ports Connections
Application Support	Mouse, Remote controller 315.0 (12.4") 315.0 (12.4") Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Protocol Support 315.0 (12.4") DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO Input Voltage / Current 12V DC adaptor, 2A,100 ~ 240V AC, 50/60Hz, Max. 24watt Electrical Power Consumption Max. 19.6W (With 1x HDD) 52.0 (2.05") 57.0 (2.24") Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F) Environmenta
REVISED 07-2014	218
