| Model Name | R10 R15 R30 R40 RK40 |
|---|
| Base Part Number | 900N 910N 930N 920N 921N 13.56 MHz Single Technology ID-1 Credentials (Cards) – SIO Data Model |
|---|
| iCLASS SE®: 2.8" (7.1 cm) | iCLASS SE: 2.6" (6.6 cm) iCLASS SE: 3.3" (8.4 cm) iCLASS SE: 3.5" (8.9 cm) iCLASS SE: 3.4" (8.6 cm) |
|---|
| SE for DESFire® EV1: 1.6 | SE for DESFire EV1: 1.6 SE for DESFire EV1: 1.6 SE for DESFire EV1: 1.8" SE for DESFire EV1: 1.6 (4.1 cm) (4.1 cm) (4.1 cm) (4.6 cm) (4.1 cm) |
|---|
| SE for MIFARE® Classic: | SE for MIFARE Classic: SE for MIFARE Classic: SE for MIFARE Classic: SE for MIFARE Classic: |
|---|
| Typical Read Range* (inches) | 2.5" (6.4 cm) 2.7" (6.9 cm) 2.8" (7.1 cm) 2.9" (7.4 cm) 2.6" (6.6 cm) 13.56 MHzSingle Technology Tags/Fobs – SIO data Model |
|---|
| iCLASS SE: 1.5" (3.8 cm) | iCLASS SE: 1.1" (2.8 cm) iCLASS SE: 1.7" (4.3 cm) iCLASS SE: 1.8" (4.6 cm) iCLASS SE: 1.4" (3.6 cm) |
|---|
| SE for MIFARE Classic: | SE for MIFARE Classic: SE for MIFARE Classic: SE for MIFARE Classic: SE for MIFARE Classic: 1.2" (3.0 cm) 0.8" (2.0 cm) 1.2" (3.0 cm) 1.4" (3.6 cm) 0.5" (1.3 cm) |
|---|
| Mini-Mullion Size; | Mullion Size; physically |
|---|
| physically HID's smallest | HID's second smallest EU / APAC Square Size; |
|---|
| iCLASS® readers and | iCLASS readers and 83.8 mm (3.3”) square Wall Switch Size; designed to mount and cover |
|---|
| are ideally suited for | are ideally suited for reader is designed to single gang switch boxes primarily used in the Mounting |
|---|
| mullion-mounted door | mullion-mounted door mount to and cover Americas and includes a slotted mounting plate |
|---|
| installations, U.S. single- | installations, U.S. single- standard European and for European and Asian back box spacing |
|---|
| gang J-box (with mud | gang J-box (with mud Asian back boxes |
|---|
| ring) or any flat surface | ring) or any flat surface |
|---|
| 顏色 | Black or Gray |
|---|
| Keypad | No Yes (4x3) 1.9" x 6.0" x 0.9" 3.3" x 4.8" x 1.0" 3.3" x 4.8" x 1.1" 1.9" x 4.1" x 0.9" 3.3" x 3.3" x 0.9" |
|---|
| 尺寸 | 4.8 cm x 15.3 cm x 8.4 cm x 12.2 cm x 8.5 cm x 12.2 cm x 2.8 4.8 cm x 10.3 cm x 2.3 cm 8.4 cm x 8.4 cm x 2.3 cm 2.3 cm 2.4 cm cm |
|---|

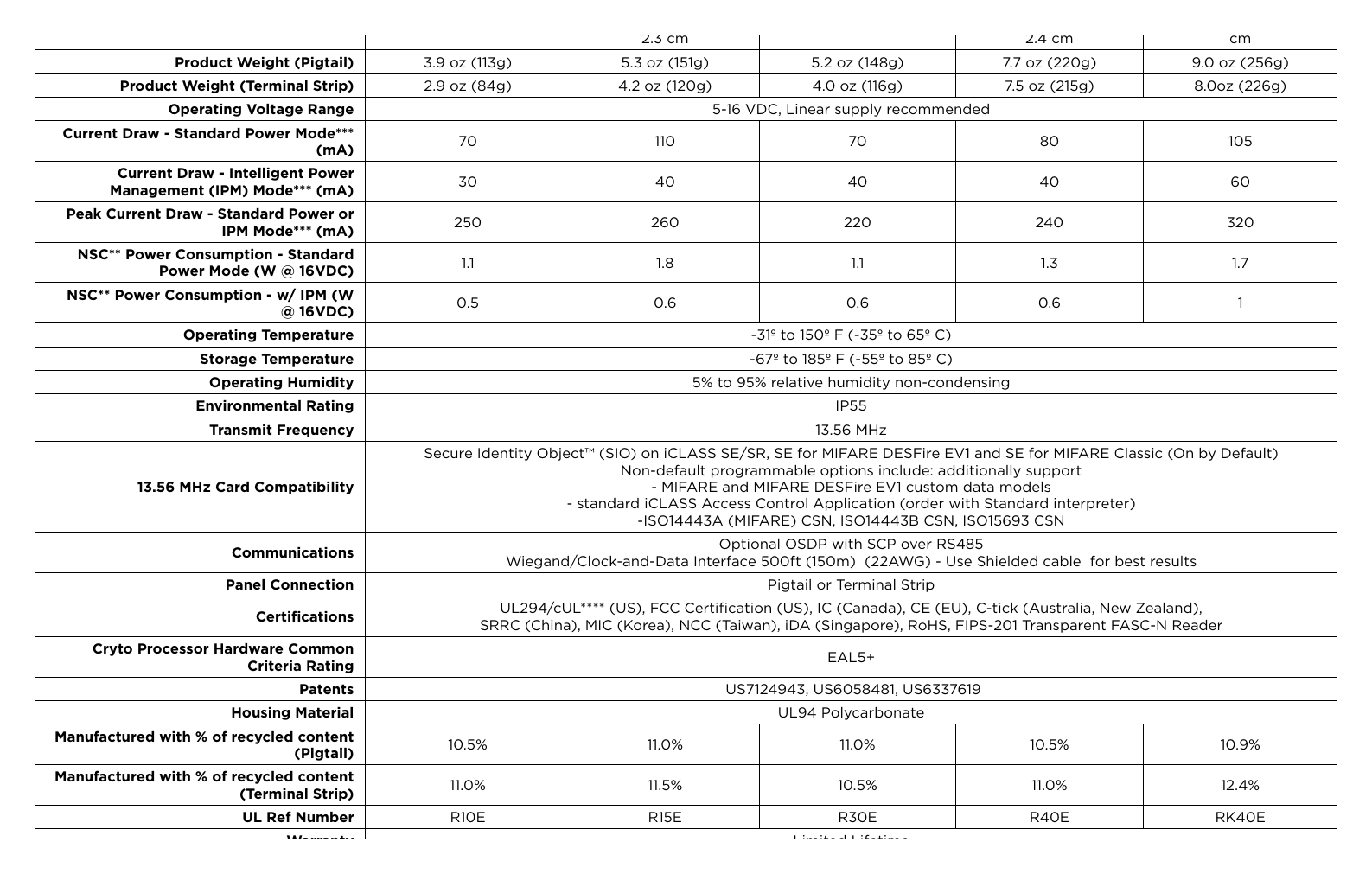

| Product Weight (Pigtail) | 3.9 oz (113g) 5.3 oz (151g) 5.2 oz (148g) 7.7 oz (220g) 9.0 oz (256g) |
|---|
| Product Weight (Terminal Strip) | 2.9 oz (84g) 4.2 oz (120g) 4.0 oz (116g) 7.5 oz (215g) 8.0oz (226g) |
|---|
| Operating Voltage Range | 5-16 VDC, Linear supply recommended Current Draw - Standard Power Mode*** 70 110 70 80 105 (mA) Current Draw - Intelligent Power 30 40 40 40 60 Management (IPM) Mode*** (mA) Peak Current Draw - Standard Power or 250 260 220 240 320 IPM Mode*** (mA) NSC** Power Consumption - Standard 1.1 1.8 1.1 1.3 1.7 Power Mode (W @ 16VDC) NSC** Power Consumption - w/ IPM (W 0.5 0.6 0.6 0.6 1 @ 16VDC) |
|---|
| 工作溫度 | -31º to 150º F (-35º to 65º C) |
|---|
| 儲存溫度 | -67º to 185º F (-55º to 85º C) |
|---|
| 工作濕度 | 5% to 95% relative humidity non-condensing |
|---|
| Environmental Rating | IP55 |
|---|
| Transmit Frequency | 13.56 MHz Secure Identity Object™ (SIO) on iCLASS SE/SR, SE for MIFARE DESFire EV1 and SE for MIFARE Classic (On by Default) Non-default programmable options include: additionally support 13.56 MHz Card Compatibility - MIFARE and MIFARE DESFire EV1 custom data models - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN |
|---|
| Panel Connection | Pigtail or Terminal Strip UL294/cUL**** (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), Certifications SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS-201 Transparent FASC-N Reader Cryto Processor Hardware Common EAL5+ Criteria Rating |
|---|
| Patents | US7124943, US6058481, US6337619 |
|---|
| Housing Material | UL94 Polycarbonate Manufactured with % of recycled content 10.5% 11.0% 11.0% 10.5% 10.9% (Pigtail) Manufactured with % of recycled content 11.0% 11.5% 10.5% 11.0% 12.4% (Terminal Strip) |
|---|
| UL Ref Number | R10E R15E R30E R40E RK40E |
|---|
| Warranty | Limited Lifetime |
|---|
| * | Typical read range achieved in air. Different types of metal will cause some degradation (typically up to 20%). Use spacers to space product off metal and improve read range if required. ** NSC = Normal Standby Current *** Measured in accordance with UL294 standards **** UL294 functionally certified for Wiegand output only |
|---|
