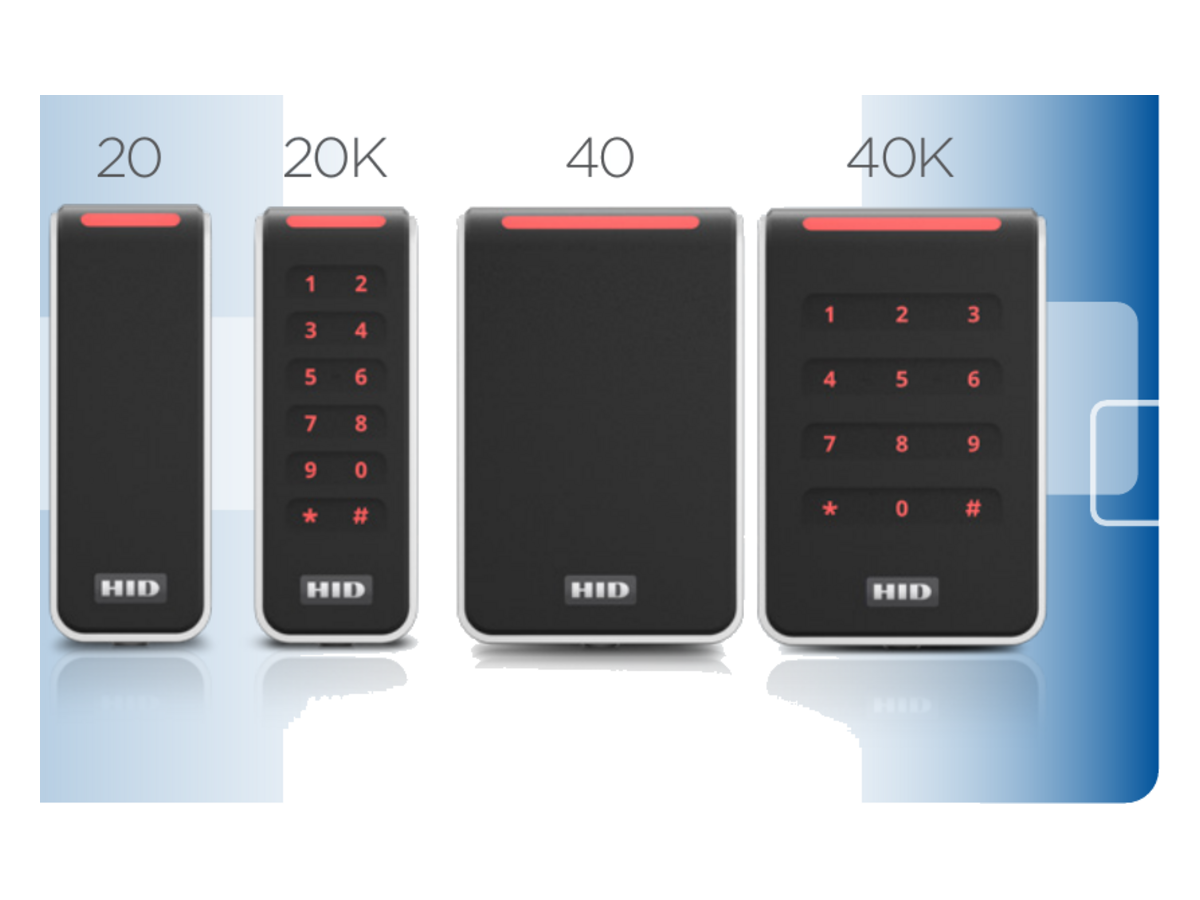

| HID Signo Reader Model | 20 20K 40 40K |
|---|
| "00" | SEOS, iCLASS SE®, iCLASS®, MIFARE (Classic, PROX, EM, 13.56MHz 125KHz |
|---|
| Standard Profile | DESFire EV1/EV2 with SIO encoding), Mobile, CSN Indala (ASP10022) |
|---|
| "02" | SEOS, iCLASS SE®, iCLASS®, MIFARE (Classic, DESFire 13.56MHz 125KHz N/A |
|---|
| Smart Profile | EV1/EV2 with SIO encoding), Mobile |
|---|
| "01" SEOS Profile | 13.56MHz SEOS, Mobile 125KHz N/A Seos®, MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards – 4 to 10 cm (1.6 to 4 in) Typical Read Range1 HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards – 6 to 10 cm (2.4 to 4 in) Suited to mount and cover single gang Suited for mullion-mount door installations or |
|---|
| Mounting | switch boxes with a slotted mounting plate any flat surface mounting for alternate back-box spacing |
|---|
| 顏色 | Black bezel with silver trim baseplate 2 |
|---|
| Keypad | No Yes (2 x 6 layout) No Yes (3 x 4 layout) 45 mm x 121.5 mm 45 mm x 121.5 mm 80 mm x 121.5 mm 80 mm x 121.5 mm |
|---|

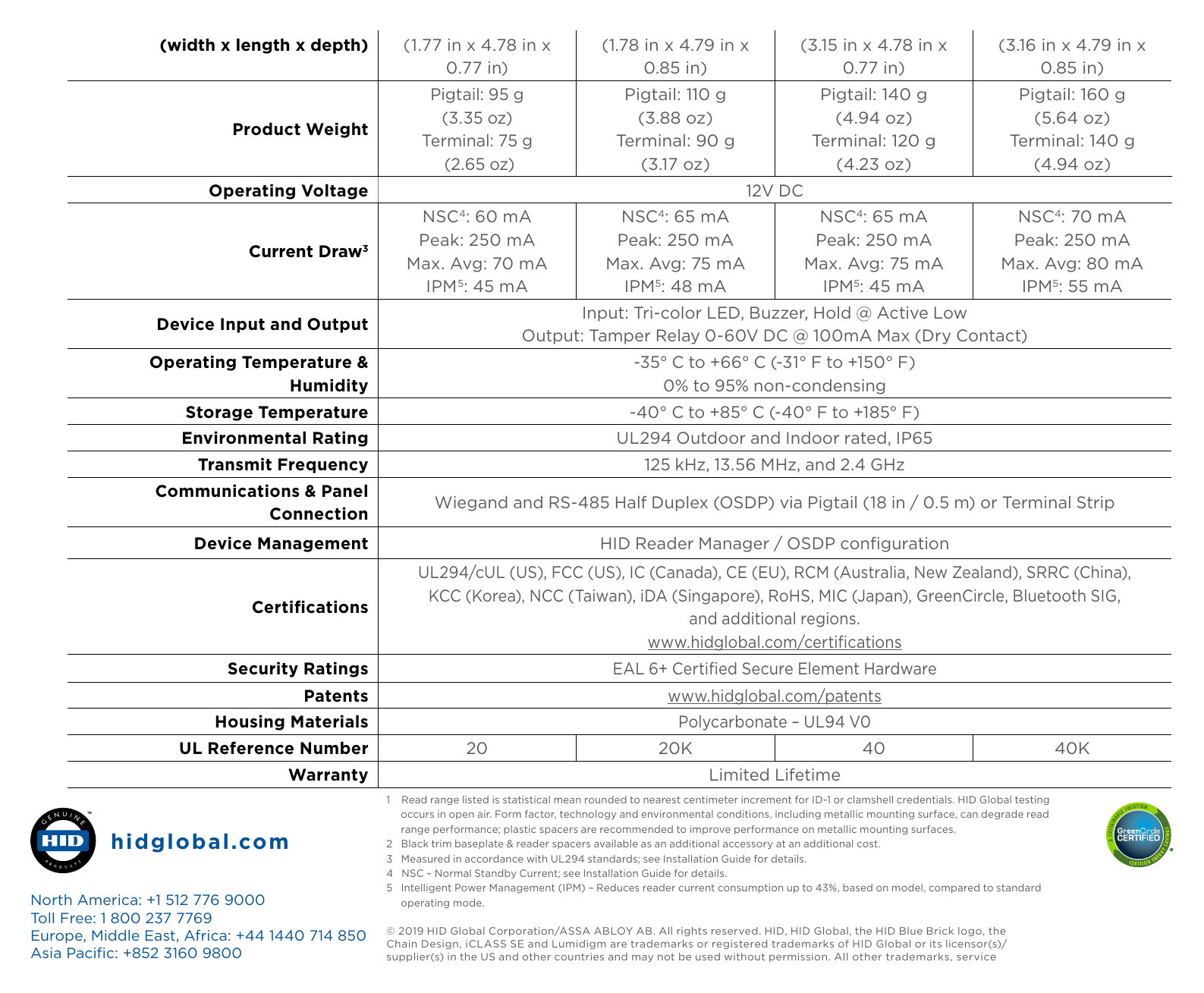

| 尺寸 | x 19.5 mm x 21.5 mm x 19.5 mm x 21.5 mm (width x length x depth) (1.77 in x 4.78 in x (1.78 in x 4.79 in x (3.15 in x 4.78 in x (3.16 in x 4.79 in x 0.77 in) 0.85 in) 0.77 in) 0.85 in) |
|---|
| Pigtail: 95 g | Pigtail: 110 g Pigtail: 140 g Pigtail: 160 g (3.35 oz) (3.88 oz) (4.94 oz) (5.64 oz) Product Weight |
|---|
| Terminal: 75 g | Terminal: 90 g Terminal: 120 g Terminal: 140 g (2.65 oz) (3.17 oz) (4.23 oz) (4.94 oz) |
|---|
| Operating Voltage | 12V DC |
|---|
| NSC4: 60 mA | NSC4: 65 mA NSC4: 65 mA NSC4: 70 mA |
|---|
| Peak: 250 mA | Peak: 250 mA Peak: 250 mA Peak: 250 mA Current Draw3 |
|---|
| Max. Avg: 70 mA | Max. Avg: 75 mA Max. Avg: 75 mA Max. Avg: 80 mA |
|---|
| IPM 5: 45 mA | IPM5: 48 mA IPM5: 45 mA IPM5: 55 mA Input: Tri-color LED, Buzzer, Hold @ Active Low Device Input and Output Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact) |
|---|
| Operating Temperature & | -35° C to +66° C (-31° F to +150° F) |
|---|
| Humidity | 0% to 95% non-condensing |
|---|
| 儲存溫度 | -40° C to +85° C (-40° F to +185° F) |
|---|
| Environmental Rating | UL294 Outdoor and Indoor rated, IP65 |
|---|
| Transmit Frequency | 125 kHz, 13.56 MHz, and 2.4 GHz Communications & Panel Wiegand and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip Connection |
|---|
| Device Management | HID Reader Manager / OSDP configuration UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), GreenCircle, Bluetooth SIG, Certifications and additional regions. www.hidglobal.com/certifications |
|---|
| Security Ratings | EAL 6+ Certified Secure Element Hardware |
|---|
| Patents | www.hidglobal.com/patents |
|---|
| Housing Materials | Polycarbonate – UL94 V0 |
|---|
| UL Reference Number | 20 20K 40 40K |
|---|
| Warranty | Limited Lifetime 1 Read range listed is statistical mean rounded to nearest centimeter increment for ID-1 or clamshell credentials. HID Global testing occurs in open air. Form factor, technology and environmental conditions, including metallic mounting surface, can degrade read range performance; plastic spacers are recommended to improve performance on metallic mounting surfaces. |
|---|
| hidglobal.com | 2 Black trim baseplate & reader spacers available as an additional accessory at an additional cost. 3 Measured in accordance with UL294 standards; see Installation Guide for details. 4 NSC – Normal Standby Current; see Installation Guide for details. 5 Intelligent Power Management (IPM) – Reduces reader current consumption up to 43%, based on model, compared to standard |
|---|
