| RK40-H | RPK40-H |
|---|
| Full duplex Base Part Number | 921NHR 921PHR |
|---|
| Half duplex Base Part Number | 921NHP 921PHP PKI-Based FIPS-201 Credentials including 13.56 MHz Card Compatibility PIV, PIV-I, CIV, CAC, TWIC and FRAQ, Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE /SR, MIFARE DESFire EV1 and MIFARE Classic, standard iCLASS Access Control Application, ISO14443A (MIFARE) CSN 125 kHz Card Compatibility N/A HID Prox, AWID, EM4102 Prox |
|---|
| System Requirements | These readers require HID pivCLASS Authentication Module (M2000) to support FICAM compliance |
|---|
| Typical Contactless Read Range1 | FIPS 201 type cards can be read using either the contact or contactless card interface Contactless Interface PIV, PIV-I, CIV, CAC, TWIC and FRAQ |
|---|
| FIPS-201 | 2.0" (5 cm) 1.2" (3 cm) 13.56 MHz Single Technology ID-1 Cards – SIO Data Model |
|---|
| iCLASS Seos | 2.0" (5 cm) 1.6" (4 cm) |
|---|
| iCLASS | 5.5" (14 cm) 4.7" (12 cm) |
|---|
| MIFARE DESFire EV1 | 2.0" (5 cm) 1.6" (4cm) |
|---|
| MIFARE Classic | 5.1" (13 cm) 4.3" (11 cm) 125 kHz Single Technology ID-1 Cards |
|---|
| HID Prox / AWID | N/A 2.8" (7 cm) 3.1" (8 cm) |
|---|
| EM4102 Prox | N/A |
|---|
| Mounting | Wall Switch Size; designed to mount on single gang switch box |
|---|
| 顏色 | Black |
|---|
| Keypad | Yes (4x3) |
|---|
| 尺寸 | 3.3" x 4.8" x 1.1" (8.5 cm x 12.2 cm x 2.8 cm) |
|---|

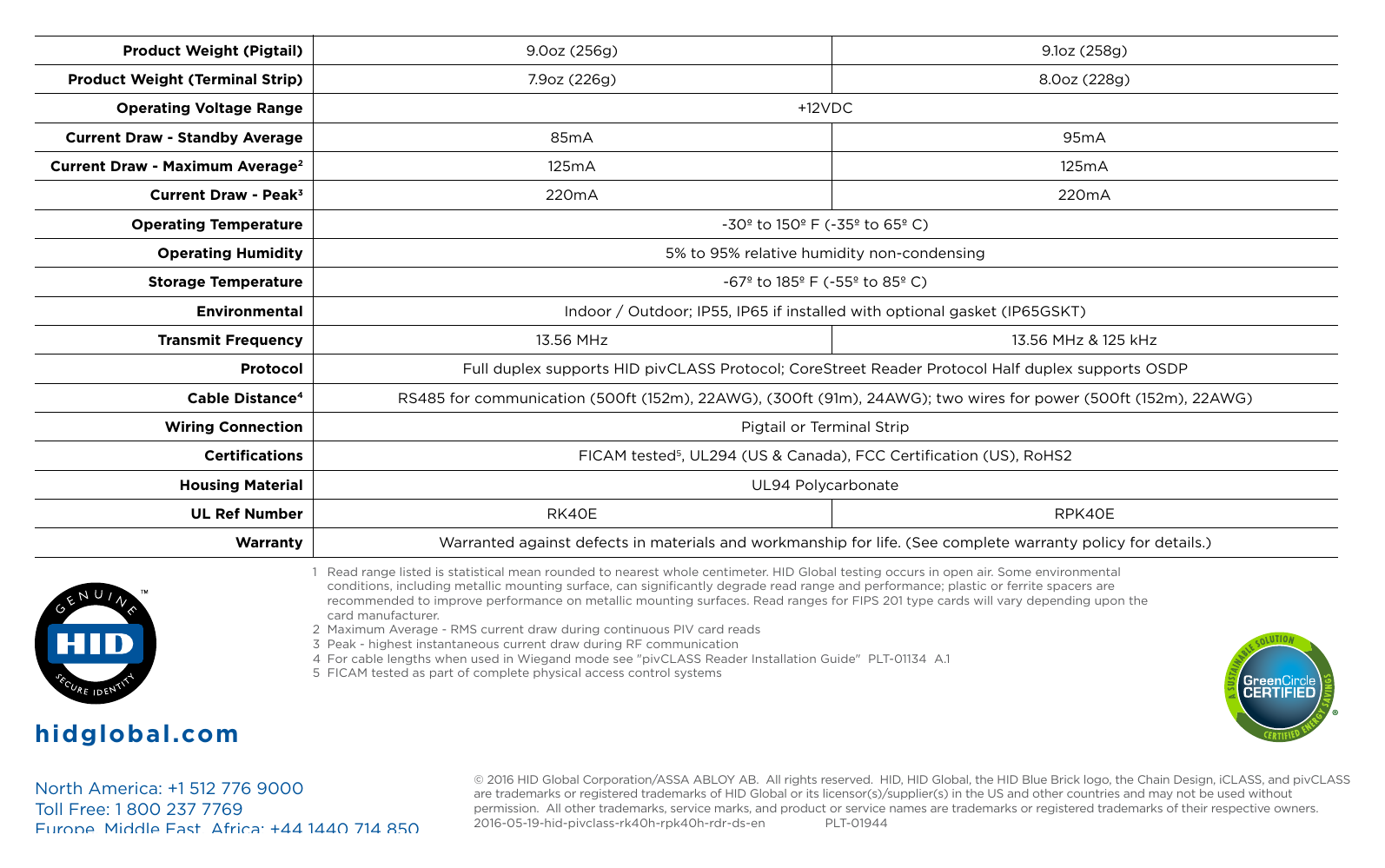

| Product Weight (Pigtail) | 9.0oz (256g) 9.1oz (258g) |
|---|
| Product Weight (Terminal Strip) | 7.9oz (226g) 8.0oz (228g) |
|---|
| Operating Voltage Range | +12VDC |
|---|
| Current Draw - Standby Average | 85mA 95mA |
|---|
| Current Draw - Maximum Average2 | 125mA 125mA |
|---|
| Current Draw - Peak3 | 220mA 220mA |
|---|
| 工作溫度 | -30º to 150º F (-35º to 65º C) |
|---|
| 工作濕度 | 5% to 95% relative humidity non-condensing |
|---|
| 儲存溫度 | -67º to 185º F (-55º to 85º C) |
|---|
| Environmental | Indoor / Outdoor; IP55, IP65 if installed with optional gasket (IP65GSKT) |
|---|
| Transmit Frequency | 13.56 MHz 13.56 MHz & 125 kHz |
|---|
| Protocol | Full duplex supports HID pivCLASS Protocol; CoreStreet Reader Protocol Half duplex supports OSDP |
|---|
| Cable Distance4 | RS485 for communication (500ft (152m), 22AWG), (300ft (91m), 24AWG); two wires for power (500ft (152m), 22AWG) |
|---|
| Wiring Connection | Pigtail or Terminal Strip |
|---|
| Certifications | FICAM tested5, UL294 (US & Canada), FCC Certification (US), RoHS2 |
|---|
| Housing Material | UL94 Polycarbonate |
|---|
| UL Ref Number | RK40E RPK40E |
|---|
| Warranty | Warranted against defects in materials and workmanship for life. (See complete warranty policy for details.) 1 Read range listed is statistical mean rounded to nearest whole centimeter. HID Global testing occurs in open air. Some environmental conditions, including metallic mounting surface, can significantly degrade read range and performance; plastic or ferrite spacers are recommended to improve |
|---|
