Hikvision AE-DI2032-G40/V2 為Dashcam，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 AE-DI2032-G40/V2 香港價格連安裝報價。
| 影像感測器 | 1/2.7” Progressive Scan CMOS |
|---|---|
| Minimum Illumination | 0.01 Lux @ (AGC ON) |
| 快門速度 | 1/3 s to 1/100,000 s |
| 焦距 | Fixed focal lens, 2.1 mm |
| Max. Aperture | F2.1 |
| 鏡頭接口 | M12 Horizontal FOV: 127° |
| Field of View | Vertical FOV: 73° Diagonal FOV: 137° 0°~75° |
| Video Input | 3 video inputs (1 built-in + 2 external) |
| 音訊輸入 | 2-ch audio input (1-ch MIC of the main server and 1-ch MIC of channel 3) |
| 音訊輸出 | 1 channel with built-in speaker CH1: 1920 × 1080 (default), 1280 × 720 |
| Main Stream Resolution | CH2 to CH3: 1920 × 1080, 1280 × 720 (default) The Resolution of Channel 2-3 Depends on the External Camera Resolution CH1: 1280 × 720 (Default), 640 × 480 CH2 to CH3: 640 × 480 (default) 10 fps / 15 fps / 25 fps / 30 fps can be selected. The default frame rate of CH 1 is 25 fps and that of CH 2 and 3 is 15 fps. CH1 configurable at 10fps, 15fps, 25fps, 30 fps, default 15 fps. CH2 to CH3 configurabl |
| 視頻壓縮 | H.264 (Default) or H.265 Main Stream Bit rate CH1: 8 Mbps,4 Mbps,2 Mbps,1 Mbps,512 Kbps configurable, default 4 Mbps. CH2: 4 Mbps,2 Mbps,1 Mbps,512 Kbps configurable, default 1 Mbps. CH 3: 4 Mbps, 2 Mbps, 1 Mbps,512 Kbps configurable, default 1 Mbps. Sub-stream bit rate: CH1 to 3: 1 Mbps,512 Kbps,256 Kbps configurable,default 512 Kbps. |
| Video Format | MP4 G.711U: 8 kHz (default) |
| 音訊取樣率 | G711A: 8 kHz AAC: 16 kHz |
| 音訊壓縮 | AAC/G711u (Default)/G711A G711U: 64 kbps (Default) |
| 音訊碼率 | G711A: 64 kbps AAC: 64 kbps AAC/G711u (Default)/G711A |
| 碼流類型 | PS Stream |
| Built-in microphone. | Support |
| Built-In Speaker | Support Europe: LTE-FDD: B1, B3, B5, B7, B8, B20, B28 LTE-TDD: B38, B40, B41 WCDMA: B1, B5, B8 GSM/EDGE: B3, B8 Latin America: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B28, B66 LTE-TDD: B40 WCDMA: B1, B2, B4, B5, B8 GSM/EDGE: B2, B3, B5, B8 Warning: Industrial SIM cards should be used for the devices. We will not be responsible for any issue caused by using general SIM cards. |
| 寬動態 WDR | Supports WDR |
| Signal-to-Noise Ratio | 37.5 dB. |
| On Screen Display | Date, time, GPS latitude and longitude, speed, license plate No., and channel name. |
| 警報輸入 | 2-Channel Alarm Input (4-Pin BMW Type) |
| SIM Card Slot | 1x SIM card slot (micro SIM card) |
| RS232 | 1 |
| Power Supply Interface | 1pcs (BMW Head 8-pin) 1 Button (Pneumatic)keyi |
| 重設鍵 | Press and hold (≥1 second and <5 seconds) to reboot the device. Hold down the reset key (≥5 seconds) to restore the default parameter settings. |
| Function Key | Press the Wi-Fi button to enable Wi-Fi AP mode. |
| Wi-Fi Band | 2.4 GHz |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Working Mode | AP, STATION GPS (Global Positioning System) GLONASS (Global Navigation Satellite System) |
| G-Sensor | 6-Axis |
| Face Picture Comparison | Support Lane Departure Warning (LDW) Pedestrian Collision Warning (PCW) |
| Advanced Driving Assistance System | Traffic Sign Recognition (TSR) Forward Car Leaving (FCL) Traffic Light Detection (TLD) Solid Lane Departure Warning (SLW) Distraction Fatigue Driving (Closing Eyes, Yawn) Make Phone Call |
| Driver Status Monitoring (DSM) | Smoking No Seat Belt Camera Tampering Infrared Blocking Sunglasses |
| Product Dimension | 123.8 mm × 87.0 mm × 37.3 mm |
| 包裝尺寸 | 223 mm × 153 mm × 63 mm |
| 防護等級 | IP4X (not water-proof) |
| 工作溫度 | -30°C to 70°C |
| 工作濕度 | 10% to 95% (non-condensing) |
| 儲存溫度 | -40°C to 85°C |
| 淨重 | Approx. 255g |
| 連包裝重量 | Approx. 600g Two TF cards are supported. The Max. Capacity of each card is 1 TB. Class 10 or above TF card is recommended. |
| Image Format | JPEG Positioning Status Indicator (GNSS) Off: No positioning signal. Solid Blue: The positioning signal is normal. Recording Status Indicator (REC) Off: The built-in or extended camera stops / fails. Solid blue: The built-in or extended camera is recording normally. |
| 指示燈 | Network Status Indicator (4G) Off: No 4G signal. Solid Blue: 4G signal and the platform connection normal. Flashing Blue: 4G signal is normal, but no platform connection. Wi-Fi Status Indicator Off: Wi-Fi AP closed. Solid blue: Wi-Fi AP is open and the connection to the APP is normal. Flashing blue: Wi-Fi AP is open, but no App connection. |
| 供電 | 11.8 V to 16 V or 23.5 V to 36 V |
| 功耗 | Max. 12w |
| 語言 | English, Turkish, Portuguese, Spanish, Russian |
| System | Embedded System |
| CE | Europe: CE-EMC, CE-LVD, CE-RED, CE-RoHS |
| CB | Europe: CB |
| E-MARK | Europe: E-MARK |
| FCC | Latin America: FCC-SDoC, FCC-ID |
| RCM | Latin America: RCM |
| ANATEL | Latin America: ANATEL |
| ICASA | South Africa: ICASA |
| LOA | South Africa: LOA |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

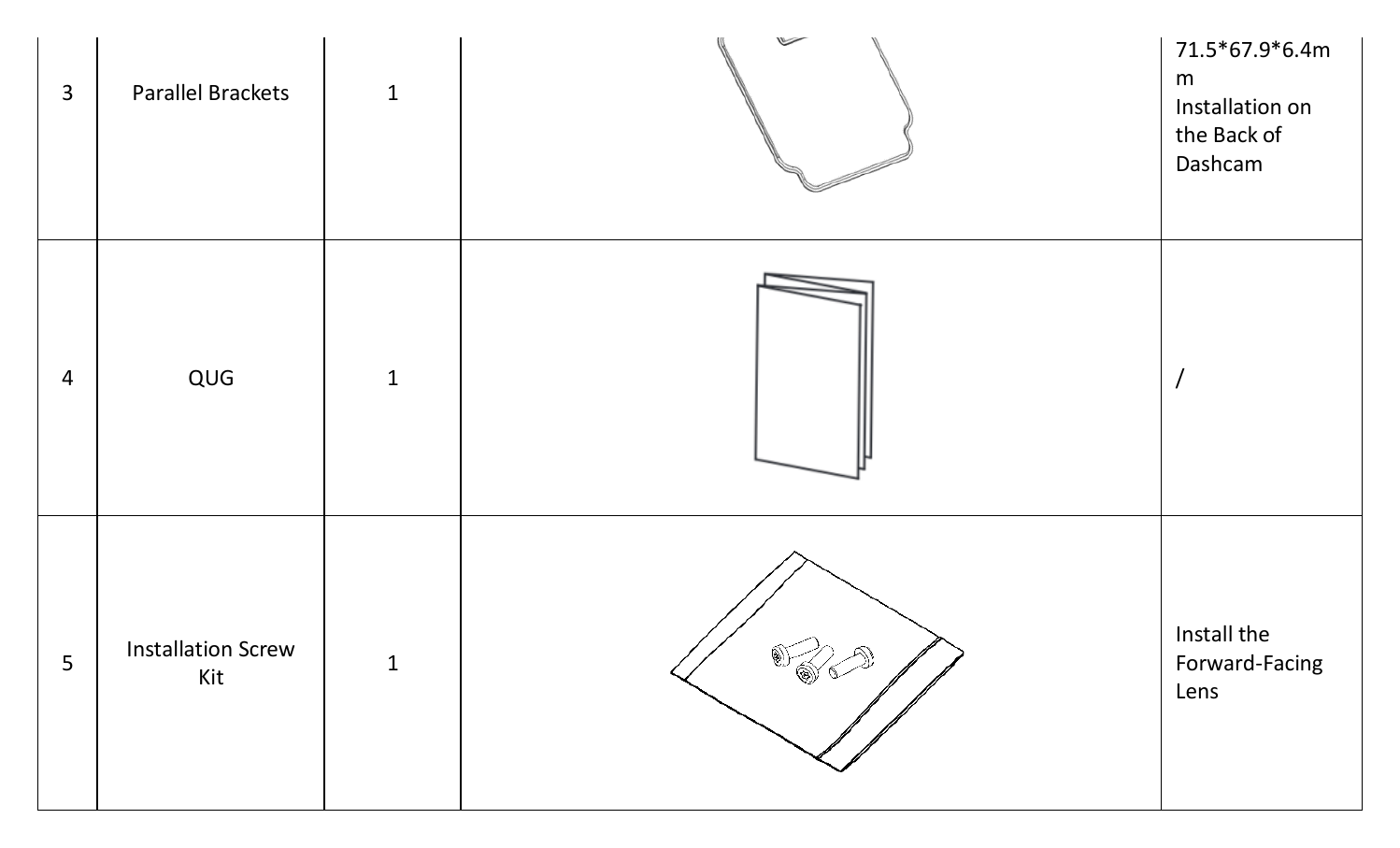

詳見圖示｜Unit: mm
AE-DI2032-G40/V2 Hikvision Dashcam亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，AE-DI2032-G40/V2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：工作溫度方面，AE-DI2032-G40/V2 係 -30°C to 70°C，DS-D4039CD-1F 係 -10 °C to 40 °C (14 °F to 104 °F)；工作濕度方面，AE-DI2032-G40/V2 係 10% to 95% (non-condensing)，DS-D4039CD-1F 係 10% RH~80% RH；供電方面，AE-DI2032-G40/V2 係 11.8 V to 16 V or 23.5 V to 36 V，DS-D4039CD-1F 係 110~220 VAC ± 15%。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 AE-DI2032-G40/V2 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
