| 視場角 FOV | Rear view: HFOV:145° VFOV:78° DFOV: 172° Note: Horizontal, Vertical Tolerance±3°; Diagonal Tolerance±5° |
|---|
| Video Input | 5-Channel Video (Default: 2-Channel; Extension: 3-Channel) |
|---|
| 音訊輸入 | 2-Way, Built-In Sound Pickup |
|---|
| 音訊輸出 | 1-Way, Built-In Speaker |
|---|
| Video Output | 1-Way CVBS/TVI/AHD Video Output CH1: 2880 × 1620, 1920 × 1080 (default), 1280 × 720 |
|---|
| Main Stream Resolution | CH2: 1920 × 1080 , 1280 × 720(CH2 Default) Note: The default resolution of CH3-CH5 is decided by external camera. CH1: 1280 × 720 (Default), 640 × 480 CH2~CH5: 640 × 480 (Default) |
|---|
| Main Stream Frame Rate | 10 fps, 15 fps, 25fps, 30 fps available. The default CH1 is 25 fps, and CH2-CH5 is 15 fps. |
|---|
| Sub-Stream Frame Rate | 10fps, 15fps, 25fps, 30 fps available, CH1-CH5 default 15 fps. |
|---|
| 視頻壓縮 | H.264 (Default), H.265 CH1: 20 Mbps, 16 Mbps, 8 Mbps, 4 Mbps (default), 2 Mbps, 1 Mbps CH2~CH5: 4 Mbps, 2 Mbps, 1 Mbps (default), 512 Kbps |
|---|
| Video Format | MP4 G711U: 8kHz(Default) |
|---|
| 音訊取樣率 | G711A: 8kHz AAC: 16kHz |
|---|
| 音訊壓縮 | AAC/G711u (Default)/G711A G711U: 64 kHz (Default) |
|---|
| 音訊碼率 | G711A: 64 kHz AAC: 64 kHz AAC/G711u (Default)/G711A |
|---|
| 碼流類型 | PS Stream |
|---|
| Built-in microphone. | Support |
|---|
| Internal Speaker | Support Europe: LTE-FDD: B1, B3, B5, B7, B8, B20, B28 LTE-TDD: B38, B40, B41 WCDMA: B1, B5, B8 GSM/EDGE:B3,B8 Latin America: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B28, B66 LTE-TDD: B40 WCDMA: B1, B2, , B4, B5, B8 GSM/EDGE:B2,B3,B5,B8 Warning: The device requires industrial SIM card. Normal SIM card is not allowed. We are not responsible for any problems caused by using any normal SIM card. Front vi |
|---|
| 寬動態 WDR | Rear view: Linear Front view: 42dB Rear view: 42dB |
|---|
| OSD | Date, time, GPS latitude and longitude, speed, license plate, and channel name. |
|---|
| 警報輸入 | 2-Way Alarm(4pin BMW), 3-Way Steering(Half Stripped Lines) |
|---|
| CAN | 1 |
|---|
| SIM Card Slot | 2 (plug-in type, support industrial-grade Nano SIM card, dual-card single waiting) |
|---|
| 網絡接口 | 1 x 6-pin aviation header |
|---|
| RS232 | 1 |
|---|
| Power Supply Interface | 1 (10pin BMW) 1 (pinhole button) |
|---|
| 重設鍵 | Press (≥1 sec & < 5 sec) to reset the device to restart. Press and hold the reset key (≥ 5 sec) to restore the default parameter settings. |
|---|
| Function Key | One Wi-Fi button. Short press to enable AP mode. |
|---|
| Wi-Fi Band | 2.4 GHz |
|---|
| Wi-Fi Protocol | 802.11 b/g/n |
|---|
| Wi-Fi Working Mode | AP, STATION GPS (Global Positioning System) |
|---|
| Positioning | GLONASS (Global Navigation Satellite System) GALILEO (Galileo satellite navigation system) |
|---|
| G-Sensor | 6-Axis |
|---|
| Inertial Navigation | Support |
|---|
| Face Picture Comparison | Support Lane Departure Warning (LDW) Pedestrian Collision Warning (PCW) |
|---|
| Advanced Driving Assistance System | Traffic Sign Recognition (TSR) Forward Car Leaving (FCL) Traffic Light Detection (TLD) Solid Lane Departure Warning(SLW) Distraction Prompt Fatigue Driving (Closing Eyes) Fatigue Driving (Yawn) Phone Call Smoking Seatbelt Unbuckled Tampering IR Interrupted Sunglasses |
|---|

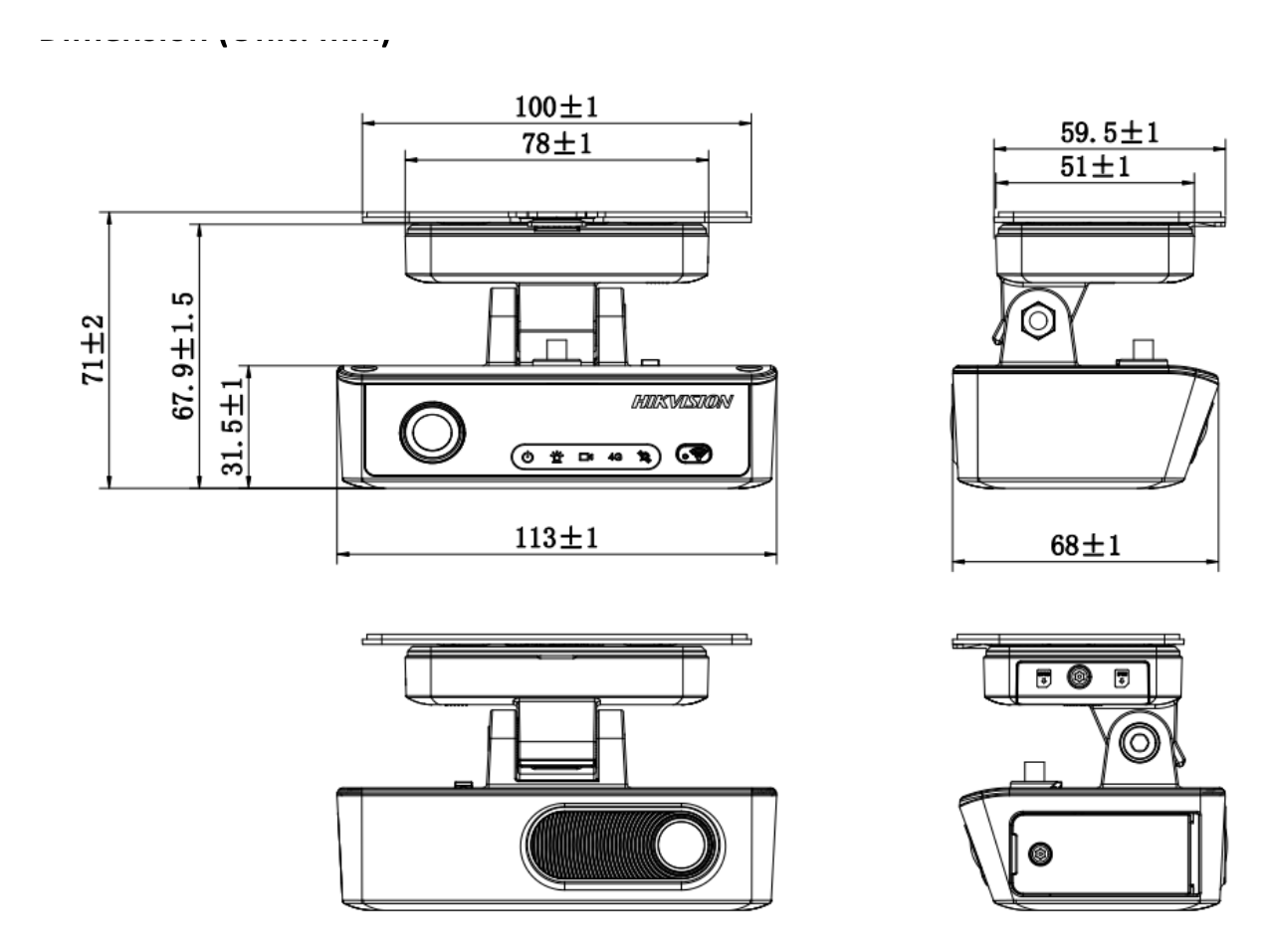

| Product Dimension | 113 mm × 71 mm × 68 mm (including mounting bracket). |
|---|
| 包裝尺寸 | 195 mm × 138 mm × 100 mm |
|---|
| 防護等級 | IP4X (not water-proof) |
|---|
| 工作溫度 | -30 °C to 70°C |
|---|
| 工作濕度 | 10% to 95% (non-condensing) |
|---|
| 儲存溫度 | -40°C to 85°C |
|---|
| Product Weight | 321 g (with mounting bracket) |
|---|
| 連包裝重量 | 748 g |
|---|
| Storage | Supports dual TF card (up to 1TB each). Class 10 or above are recommended. |
|---|
| Image Format | JPEG GNSS Indicator: Solid light: Normal; Not on: Abnormal; Record Indicator: Solid light: Recording normal; Not on: Recording exception 4G indicator: Solid light: 4G signal is normal. Platform connected. Flashing: 4G signal is normal. Platform not connected. Not on: No 4G signal. Alarm Indicator: Flashing: Active Security Alarm Not on: Normal Power Status Indicator: Solid light: Device is on. Not |
|---|
| 供電 | 11.8 V~16 V/23.5 V-36 V |
|---|
| 功耗 | Max: 15 W |
|---|
| 語言 | English, Turkish, Portuguese, Spanish, Russian |
|---|
| System | Embedded System |
|---|
