HIKVISION DS-2CD2743G1-IZ(S) CCTV攝影機安裝・保養

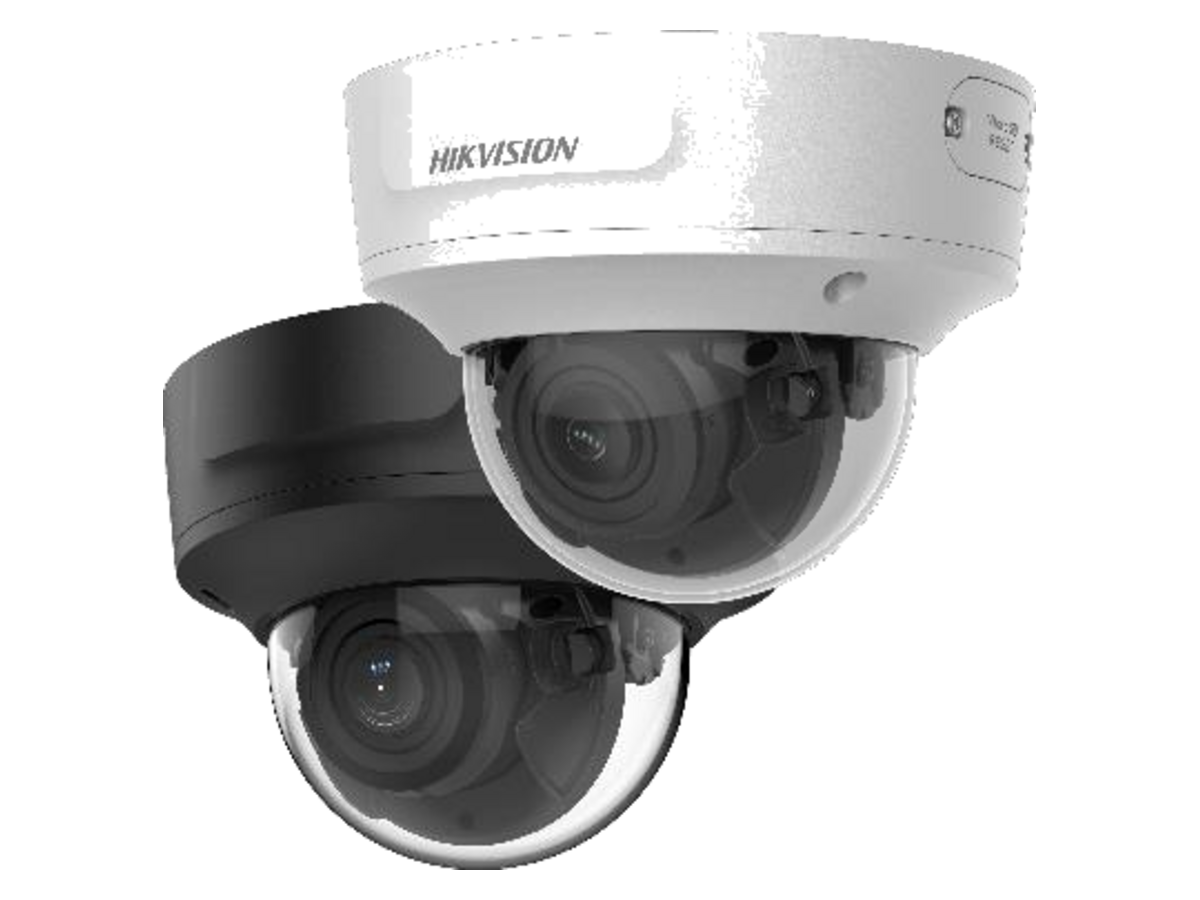

Name: HIKVISION DS-2CD2743G1-IZ(S) 球型攝影機
Brand: Hikvision
SKU: DS-2CD2743G1-IZ(S)

產品簡介

Hikvision DS-2CD2743G1-IZ(S) 為4 MP IR Varifocal Dome Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD2743G1-IZ(S) 香港價格連安裝報價。

影像感測器：1/3" Progressive Scan CMOS
最低照度：Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
快門速度：1/3 s to 1/100,000 s
慢快門：Yes
日夜切換：IR Cut Filter

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/3" Progressive Scan CMOS
最低照度	Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
慢快門	Yes
日夜切換	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
焦距	2.8 to 12 mm
鏡頭類型	Motorized
光圈	F1.6
對焦	Auto horizontal FOV: 104° to 29°
視場角 FOV	vertical FOV: 55° to 17° diagonal FOV: 125° to 34°
鏡頭接口	Φ14
IR Range	Up to 30 m
Wavelength	850nm Main stream: H.265/H.264
視頻壓縮	Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 類型	Main Profile/High Profile
H.264+	Main stream supports
H.265 類型	Main Profile
H.265+	Main stream supports
視頻碼率	32 Kbps to 16 Mbps
智能事件	Line crossing detection, intrusion detection, face detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record
聯動方式	Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Region of Interest	1 fixed region for main stream and sub-stream
最大解像度	2688 × 1520 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
影像增強	BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Target Cropping	No
日夜模式	Day/Night/Auto/Schedule/Triggered by alarm in (-S)
網絡儲存	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-
安全	LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous	Live Up to 6 channels Up to 32 users 3 levels: Administrator, Operator and User
客戶端	iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Audio (-S)	1 input (line in/mic.in), 1 output (line out), mono sound, terminal block 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm (-S)	1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output	1Vp-p Composite Output(75Ω) (For adjustment only)
機身儲存	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC	H.264 and H.265 encoding
Reset Button	Yes Yes
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
音訊壓縮	G722.1/G.711/G726/MP2L2/PCM/MP3
音訊碼率	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish,
介面語言	Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 12 VDC ± 25%, terminal block PoE (802.3af, class 3)
功耗	12 VDC, 0.8A, max. 10W
and Current	PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
Protection Level	IP67, IK10
材質	Metal Camera: Φ 153.3 × 111.6mm (Φ 6" × 4.4") Dimensions With package: 244 × 174 × 173 mm (9.6" × 6.9" × 6.8") Camera: Approx. 830 g (1.8 lb.) Weight With Package: Approx. 1460 g (3.2 lb.) Available Model: DS-2CD2743G1-IZ (2.8 to 12 mm), DS-2CD2743G1-IZS (2.8 to 12 mm)

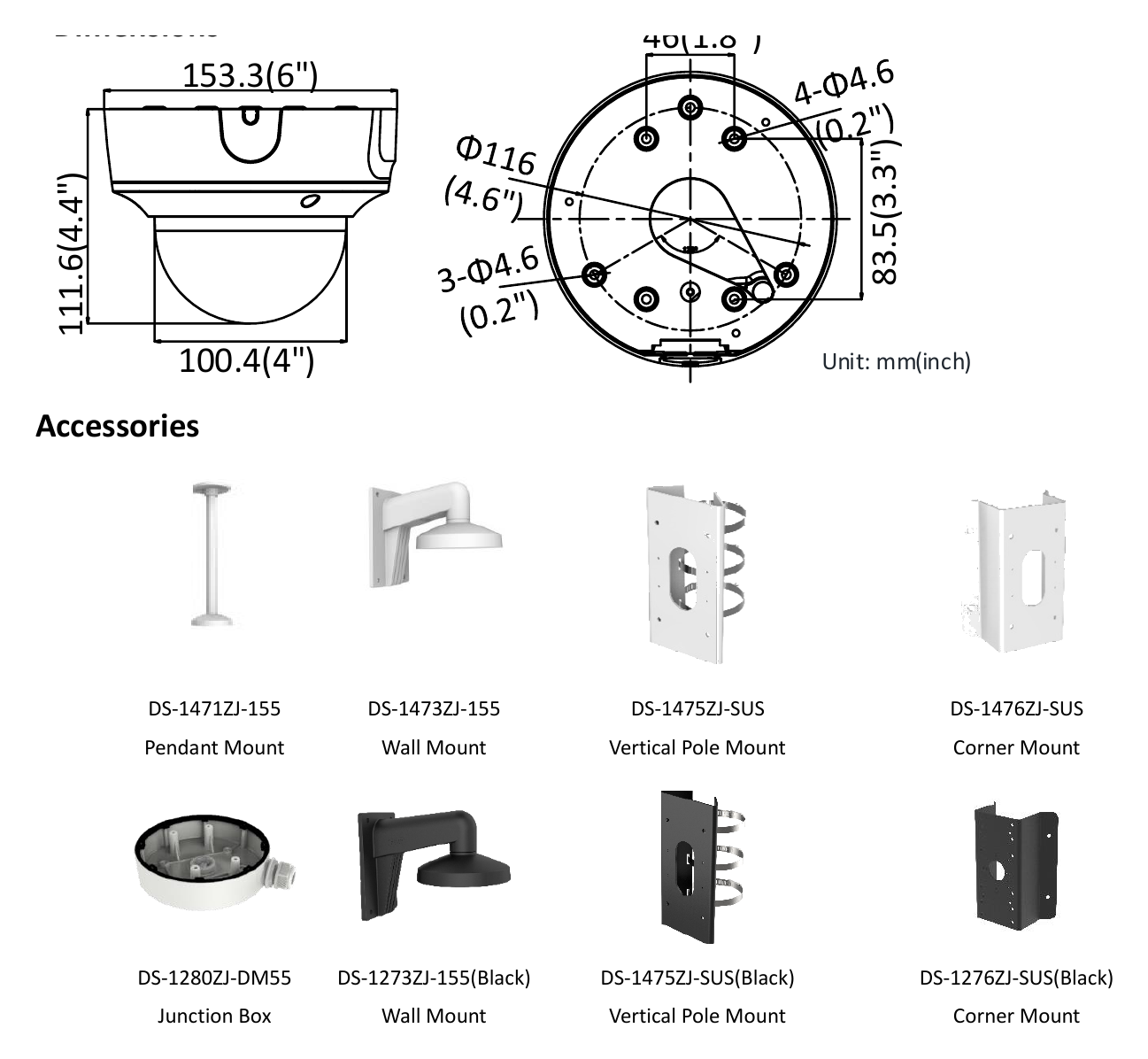

尺寸	46(1.8") 153.3(6") 83.5(3.3") 111.6(4.4") 100.4(4") Unit: mm(inch)
DS-1471ZJ-155	DS-1473ZJ-155 DS-1475ZJ-SUS DS-1476ZJ-SUS
Pendant Mount	Wall Mount Vertical Pole Mount Corner Mount
DS-1280ZJ-DM55	DS-1273ZJ-155(Black) DS-1475ZJ-SUS(Black) DS-1276ZJ-SUS(Black)
Junction Box	Wall Mount Vertical Pole Mount Corner Mount
