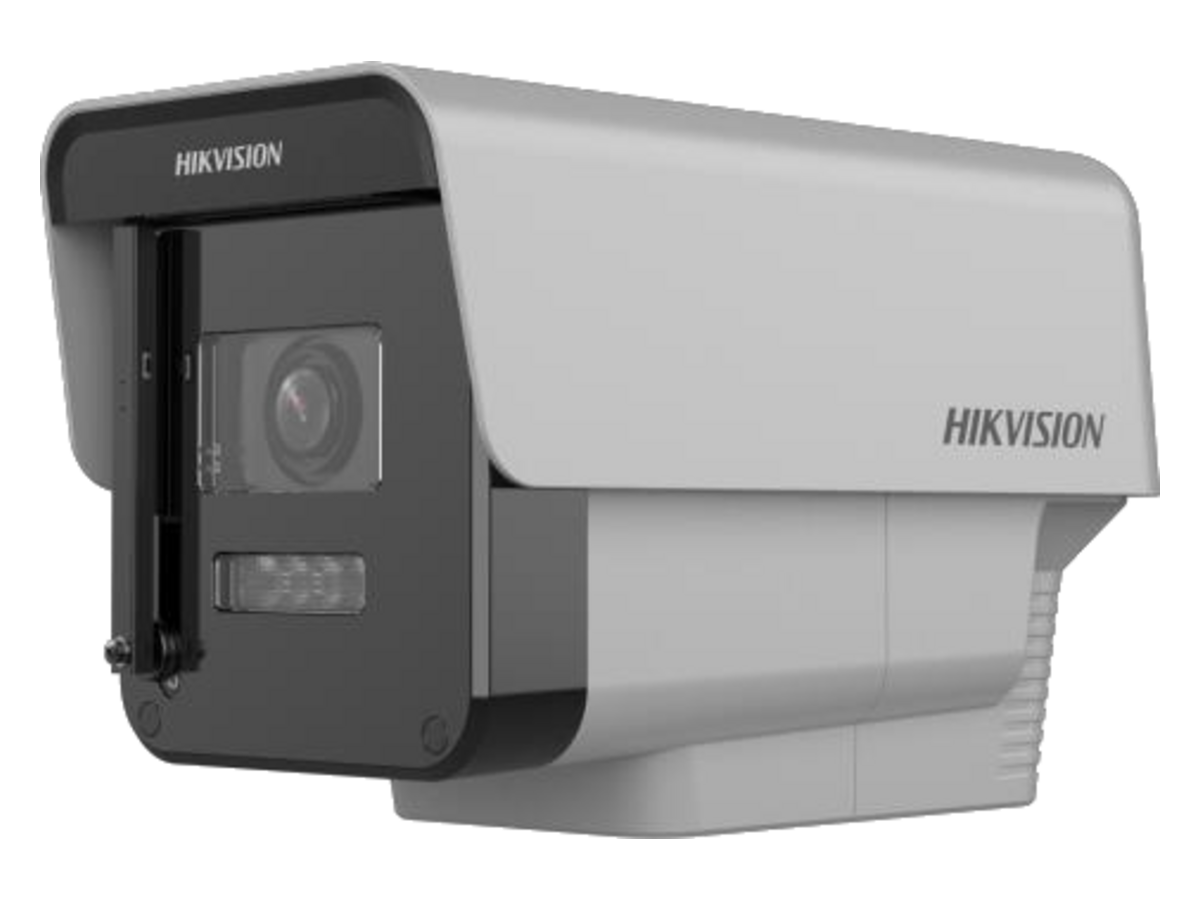

Hikvision DS-2CD6085G0 為8 MP Self-Cleaning Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD6085G0 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 3840 × 2160 Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with |
| 快門速度 | 1 s to 1/100,000 s |
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional 2.8 to 12 mm, horizontal FOV 104 to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3° 8 to 32 mm, horizontal FOV 41.8 to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1° |
| 對焦 | Auto,Semi-auto,Manual |
| 光圈類型 | DC iris 2.8 to 12 mm: max F1.4, 8 to 32 mm: max F1.7 |
| Depth of Field | 1 m to ∞ 2.8 to 12 mm: Wide: D: 93.8 m, O:37.2 m, R: 18.8 m, I: 9.4 m Tele: D: 220.0 m, O:87.3 m, R: 44.0 m, I: 22.0 m 8 to 32 mm: Wide: D: 218.0 m, O: 86.5 m, R: 43.6 m, I: 21.8 m Tele: D: 580.0 m, O: 230.2 m, R: 116.0 m, I: 58.0 m |
| 補光類型 | IR |
| 補光距離 | 2.8 to 12 mm: 30 m, 8 to 32 mm: 50 m |
| 智能補光 | Yes |
| 紅外波長 | 850 nm Memory: 150 MB, Smart RAM: 1800 MB,eMMC: 3200 MB |
| Computing Power | 8 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX |
| Programming Language | C,C++ 50 Hz: 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Main stream: Smart265/H.265/Smart264/H.264, Sub-stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 32 Mbps |
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR,VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 5 fixed regions for main stream |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
| 網絡協議 | UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| 同時取流 | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, |
| 瀏覽器 | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+, Plug-in required live view: IE 10, IE 11 |
| 圖像參數切換 | Yes Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
| 寬動態 WDR | 120 dB |
| 影像增強 | BLC,HLC,3D DNR,Defog,Distortion Correction |
| 信噪比 SNR | ≥ 50 dB |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory. impedance: 4.7 KΩ, interface type: |
| 警報 | 1 input, 1 output (max. 24 VDC, 1 A/110 VAC, 500 mA) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and |
| 基本事件 | vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output Line crossing, intrusion, region e |
| 供電 | 36 VDC ± 20%, 1.8 A, max. 65 W,two-core terminal block,reverse polarity protection |
| 材質 | Body: SMC+ 30% GF, Bracket: PA66+ 15% Glass Fiber, Junction Box: Anodized ADC12 |
| 尺寸 | 173 mm × 145 mm × 281 mm (6.81" × 5.71" × 11.06") |
| 包裝尺寸 | 456 mm × 206 mm × 233 mm (17.95" × 8.11" × 9.17") |
| 重量 | Approx. 2823 g (6.21 lb.) |
| 連包裝重量 | Approx. 3703 g (8.15 lb.) |
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating | 2.8 to 12 mm: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Conditions | 8 to 32 mm: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Por |
| Self-Supplied Air System | Outlet velocity: 6 to 24 m/s Air pressure: 1300 Pa CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Camera: (IP68: IEC60529-2013); Protection Self-Supplied Air System: (IP65: IEC60529-2013) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

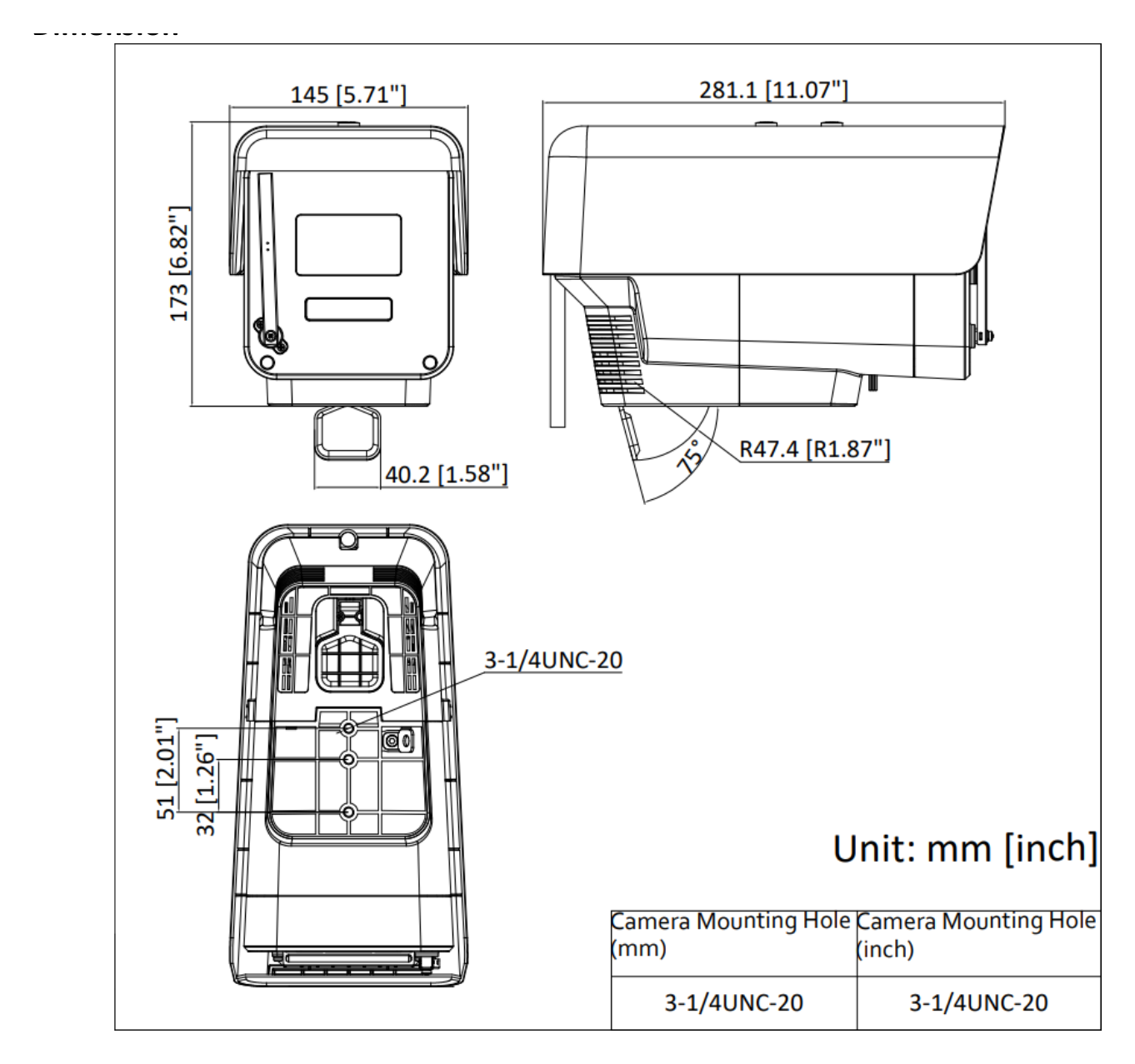

173 mm × 145 mm × 281 mm (6.81" × 5.71" × 11.06")｜重量 Approx. 2823 g (6.21 lb.)｜Unit: mm
DS-2CD6085G0 Hikvision 8 MP Self-Cleaning Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD6085G0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2CD6085G0 係 1/1.8" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；對焦方面，DS-2CD6085G0 係 Auto,Semi-auto,Manual，DS-2XE6885G0-ILZHS 係 Auto；視頻碼率方面，DS-2CD6085G0 係 32 Kbps to 32 Mbps，DS-2XE6885G0-ILZHS 係 32 Kbps to 16 Mbps。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD6085G0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2CD6085G0 Hikvision 8 MP Self-Cleaning Network Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2CD6085G0 香港價格連安裝報價。
DS-2CD6085G0 Hikvision 8 MP Self-Cleaning Network Camera適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
