Hikvision DS-2CD6365G0-IVSB 為6 MP IR Network Fisheye Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD6365G0-IVSB 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 3072 × 2048 |
| 最低照度 | Color: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
| 快門速度 | 1 s to 1/100,000 s |
| 日夜切換 | IR Cut Filter |
| 鏡頭及視場角 | 1.27 mm, horizontal FOV 173° (wall mount), 360° (ceiling mount), 360° (table mount) |
| 鏡頭接口 | M12 |
| 光圈 | F2.6 |
| DORI 偵測距離 | D: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m |
| 補光類型 | 3 IR LEDs, each LED is independently controlled |
| 補光距離 | Up to 15 m |
| 紅外波長 | 850 nm Fisheye View: 50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 180 Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) Panorama View: 50 Hz: 25 fps (2048 × 1536, 1920 × 1080) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080) 4PTZ: 50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 2 |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.265 類型 | Main Profile |
| SVC 分級編碼 | H.265 and H.264 encoding |
| 感興趣區域 ROI | 4 fixed regions for main stream and sub-stream |
| Mount Type | Support table, wall, and ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding 18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + |
| Display Mode | PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye |
| Audio Type | Mono sound |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM |
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2) |
| 音訊取樣率 | 8 kHz/16 kHz |
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| 同時取流 | Up to 20 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G), ISAPI |
| 用戶管理 | Up to 32 users. 3 user levels, administrator, operator and user Password protection, HTTPS encryption, IEEE 802.1X port-based network access |
| 安全 | control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2 |
| 網絡儲存 | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| 客戶端 | iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200 |
| 瀏覽器 | Chrome 57+, Firefox 52+, Safari 12+ Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In |
| 寬動態 WDR | Digital WDR |
| 影像增強 | BLC, HLC, defog, 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 |
| 內置麥克風 | Yes, two built-in microphone(s) |
| Built-in Speaker | Yes 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 警報 | 1 input, max. 12 V; 1 output, max 24 VDC, 1 A |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| 重設鍵 | Yes Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error Line crossing detection, intrusion detection, region entrance detection, region exiting |
| 智能事件 | detection, unattended baggage detection, object removal detection, audio exception detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported. Counts people entering, exiting and passing by separately Supports real-time uploading a |
| 尺寸 | 167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2") |
| 包裝尺寸 | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| 重量 | Approx. 720 g (1.6 lb.) |
| 連包裝重量 | Approx. 1.3 kg (2.9 lb.) -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, |
| Heater | Yes FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, |
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

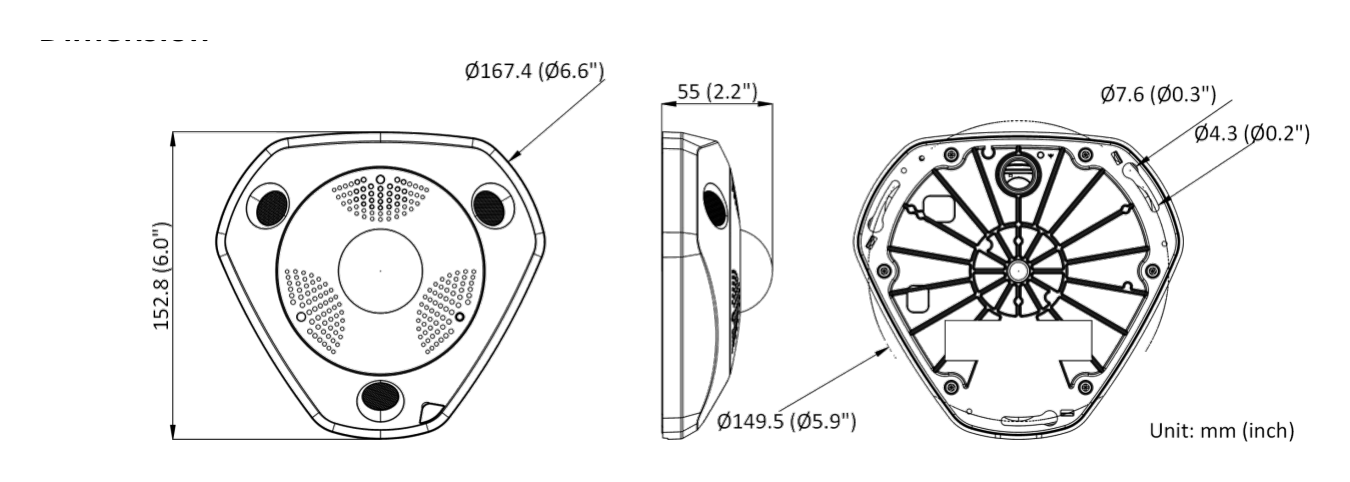

167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")｜重量 Approx. 720 g (1.6 lb.)｜Unit: mm
DS-2CD6365G0-IVSB Hikvision 6 MP IR Network Fisheye Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD6365G0-IVSB 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，DS-2CD6365G0-IVSB 係 Approx. 720 g (1.6 lb.)，DS-D4039CD-1F 係 5.6 kg (12.35 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD6365G0-IVSB 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2CD6365G0-IVSB Hikvision 6 MP IR Network Fisheye Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2CD6365G0-IVSB 香港價格連安裝報價。
