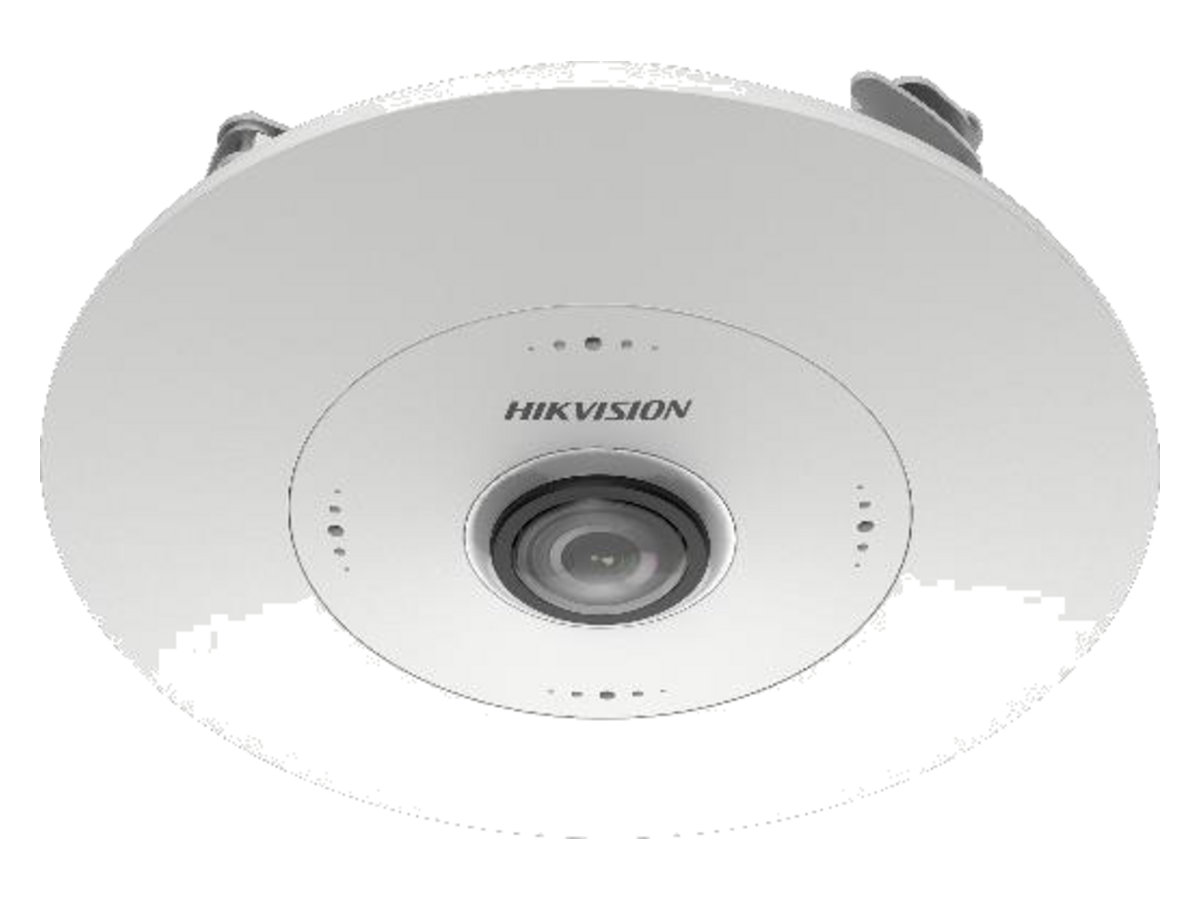

Hikvision DS-2CD63C5G1-S 為12 MP DeepinView Network Fisheye Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD63C5G1-S 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 3504 × 3504 |
| 最低照度 | Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.006 Lux @ (F2.2, AGC ON) |
| 快門速度 | 1 s to 1/100,000 s |
| 日夜切換 | IR cut filter |
| 鏡頭類型 | Fixed focal lens, 1.29 mm |
| 鏡頭及視場角 | 1.29 mm, horizontal FOV 180°, vertical FOV 180° |
| 光圈類型 | Fixed |
| 光圈 | F2.2 |
| Depth of Field | 0.2 m to ∞ D: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m Memory: 60 MB, |
| Open Resources | Smart RAM: 800 MB, eMMC: 2 GB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, TensorFlow, PyTorch |
| Programming Language | C, C++ 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR, VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 4 fixed regions for each stream |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama vi |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, |
| 網絡協議 | NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| 同時取流 | Up to 20 channels Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, |
| API | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Plug-in required live view: IE 10, IE 11, |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| 圖像參數切換 | Yes saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| 日夜模式 | Day, Night, Auto, Schedule, Alarm Trigger |
| 寬動態 WDR | Digital WDR |
| 影像增強 | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| 內置麥克風 | Yes, 4 built-in microphones 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| 重設鍵 | 1 Reset Key Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
| 智能事件 | detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading |
| Queue Management | Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold A graphic description of visits (by |
| Heat Map | time) in a configured area., Two report types are available, space heat map and time heat map line chart. Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways 12 VDC ± 20%, 0.6 A, max. 7 W, two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 8 W |
| 材質 | Metal |
| 尺寸 | Ø 165.0 mm × 48.9 mm (Ø 6.49" × 1.93") |
| 包裝尺寸 | 272 mm × 215 mm × 105 mm (10.7" × 8.5" × 4.1") |
| 重量 | Approx. 470 g (1.04 lb.) |
| 連包裝重量 | Approx. 884 g (1.95 lb.) |
| 儲存環境 | -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
| Cable Length | 0.31 m (1.02 ft.) CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

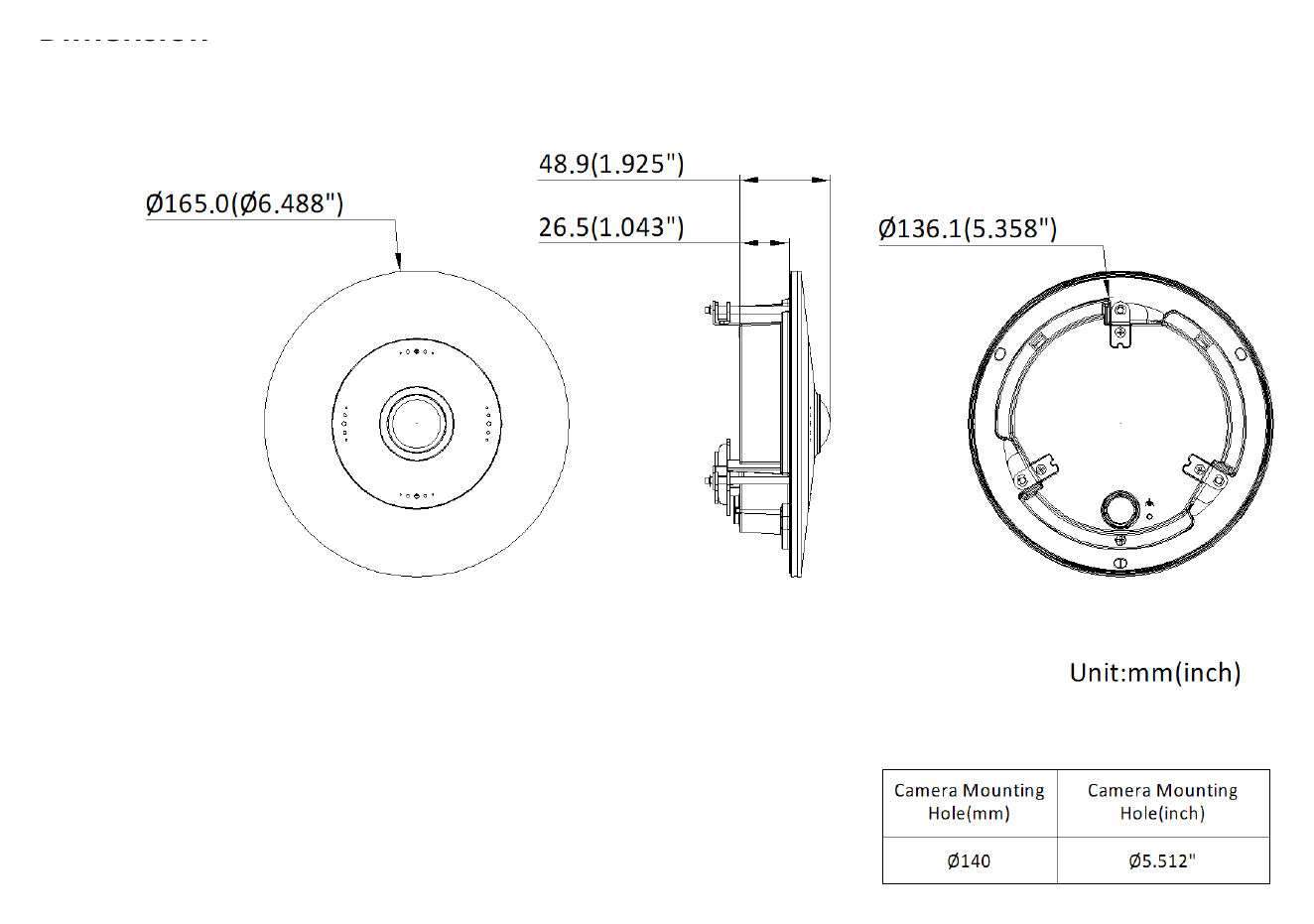

Ø 165.0 mm × 48.9 mm (Ø 6.49" × 1.93")｜重量 Approx. 470 g (1.04 lb.)｜Unit: mm
DS-2CD63C5G1-S Hikvision 12 MP DeepinView Network Fisheye Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD63C5G1-S 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2CD63C5G1-S 係 1/1.8" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；最大解像度方面，DS-2CD63C5G1-S 係 3504 × 3504，DS-2XE6885G0-ILZHS 係 3840 × 2160；SVC 分級編碼方面，DS-2CD63C5G1-S 係 H.264 and H.265 encoding，DS-2XE6885G0-ILZHS 係 H.265 and H.264 support。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD63C5G1-S 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
