| 影像感測器 | 1/1.8" Progressive Scan CMOS 2.8 mm Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080 Panorama mode: 3840 × 2160 Original mode: 1920 × 1080 6 mm Panorama+ePTZ mode: panorama channel: 2400 × 400; ePTZ channel: 1920 × 1080 Panorama mode: 6480 × 1080 Original mode: 1920 × 1080 |
|---|
| 最低照度 | Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR |
|---|
| 快門速度 | 1/25 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter. Blue glass module to reduce ghost phenomenon. |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 90° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 mm and 6 mm optional, four lenses 2.8 mm: horizontal FOV 180°, vertical FOV 90° 6 mm: horizontal FOV 180°, vertical FOV 25° |
|---|
| 鏡頭接口 | M16 |
|---|
| 對焦 | Manual, semi-auto |
|---|
| 光圈 | F1.4 |
|---|
| 補光類型 | IR, four IR LEDs |
|---|
| 補光距離 | Up to 20 m |
|---|
| 紅外波長 | 850 nm 2.8 mm Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720) Panorama mode: 50Hz: 25fps (3840 × 2160 , 2560 × 1440 , 1920× 1080), 60Hz: 30fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (192 |
|---|
| 視頻碼率 | 32 Kbps to 65 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| Target Cropping | Yes (only panorama mode supports) |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM |
|---|
| 音訊碼率 | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1 |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200 |
|---|
| 瀏覽器 | IE8+ Rotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports) |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1A) |
|---|
| RS-485 | 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | Yes /NFC: FC interface, single mode, single fiber, Tx1310nm/1.25G, Rx1550nm/1.25G, up Fiber Optical to 20 km Motion detection (only panorama and original modes support), exception (network Basic Event disconnected, IP address conflict, illegal login, HDD full, HDD error) Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Linkage output, trigger recording, trigger |
|---|
| 材質 | Aluminum alloy |
|---|

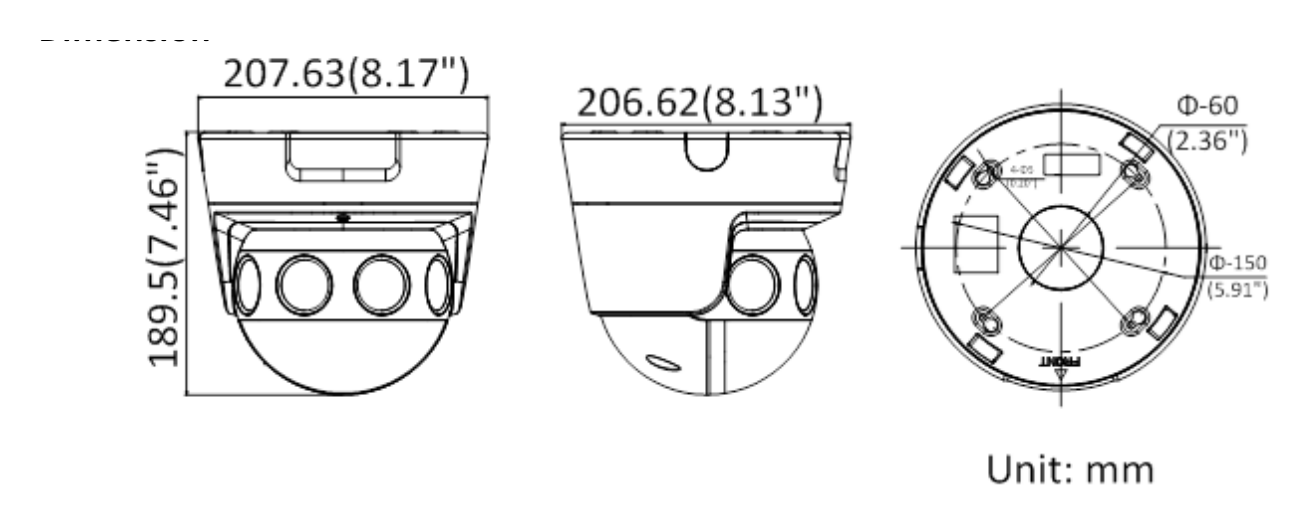

| 尺寸 | 189.5 × 207.63 × 206.62 mm (7.46" × 8.17" × 8.13") |
|---|
| 包裝尺寸 | 340 × 261 × 293 mm (13.4" × 10.3" × 11.5") |
|---|
| 重量 | Approx. 3 kg (6.6 lb.) |
|---|
| 連包裝重量 | Approx. 5 kg (11 lb.) |
|---|
| 儲存環境 | -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing) Startup and Operating -40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing) Conditions |
|---|
| 語言 | English Anti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only |
|---|
| 一般功能 | original mode supports), password protection, watermark, IP address filter, pixel counter |
|---|
| Heater | Yes FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4); |
|---|
| EMC | RCM (AS/NZS CISPR 32:2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-ROHS (2011/65/EU); |
|---|
| Environment | REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU) |
|---|
| 防護等級 | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Distance(2.8 mm) | 32 m 12.5 m 6.5 m 3m |
|---|
| Distance(6 mm) | 63.2 m 25.1 m 12.6 m 6.3 m |
|---|
