| 影像感測器 | 1/1.8" Progressive Scan CMOS Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080 |
|---|
| 最大解像度 | Panorama mode: 3840 × 2160 Original mode: 1920 × 1080 Color: 0.009 Lux @ (F1.6, AGC ON) B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/25 s to 1/100,000 s IR cut filter, Blue glass module to reduce ghost phenomenon |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 90° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 mm, four lenses |
|---|
| 鏡頭及視場角 | 2.8 mm, horizontal FOV 180°, vertical FOV 90° |
|---|
| 鏡頭接口 | M16 |
|---|
| 光圈 | F1.6 |
|---|
| DORI 偵測距離 | 2.8 mm: D: 32 m, O: 12.5 m, R: 6.5 m, I: 3 m |
|---|
| 補光類型 | IR, four IR LEDs |
|---|
| 補光距離 | Up to 20 m |
|---|
| 紅外波長 | 850 nm Panorama+ePTZ mode: Panorama channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) ePTZ channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) |
|---|
| 主碼流 | 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Panorama mode: 50 Hz: 25 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) 60 Hz: 30 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080) Original mode: 50 Hz: 25 fps (1920× 1080) 60 Hz: 30 fps (1920× 1080) Panorama mode: |
|---|
| 子碼流 | 50 Hz: 25 fps (1280 × 720, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264/MJPEG (panorama + ePTZ mode, |
|---|
| 視頻壓縮 | panorama mode) Sub-stream: H.265/H.264/MJPEG (original mode) |
|---|
| 視頻碼率 | 32 Kbps to 64 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| Target Cropping | Yes (only panorama mode supports) |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP o |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200 Plug-in required live view: IE 10, IE 11 |
|---|
| 瀏覽器 | Plug-in free live view: Safari 12+ Local service: Chrome 57+, Firefox 52+ Rotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule, Alarm Trigger |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Defog, EIS (only original mode supports) 4 programmable polygon privacy masks, Only original mode supports. |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB 1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | Yes Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, scene change detection, audio exception, unattended baggage detection, object removal detection (Only panorama mode supports) Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
|---|
| People Density | Yes (only panorama mode supports) 12 VDC, 1.4 A, max. 24 W, three-core terminal block PoE: IEEE 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A |
|---|
| 材質 | Aluminum alloy |
|---|

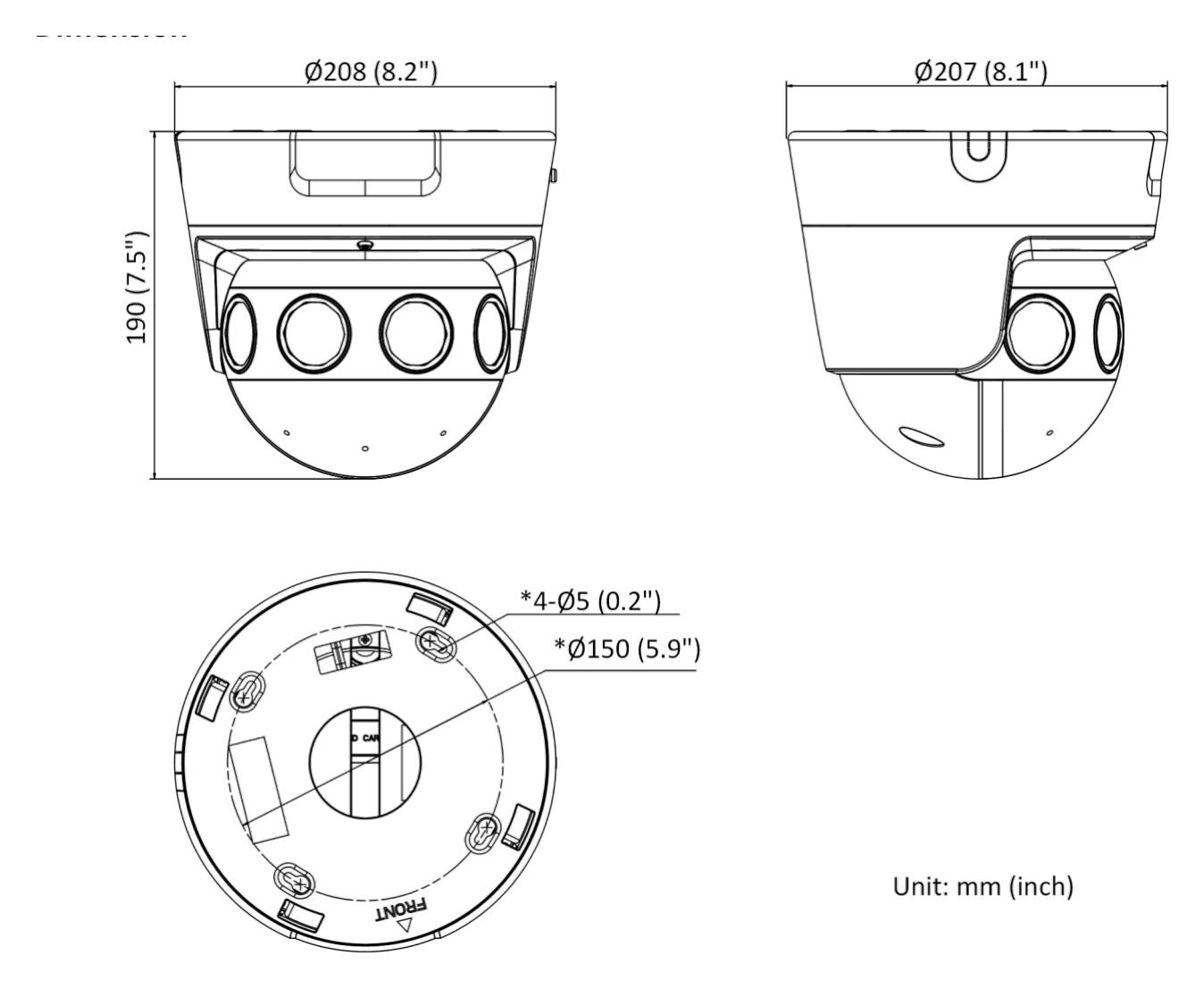

| 尺寸 | 190 mm × 208 mm × 207 mm (7.5" × 8.2" × 8.1") |
|---|
| 包裝尺寸 | 340 mm × 261 mm × 293 mm (13.4" × 10.3" × 11.5") |
|---|
| 重量 | Approx. 3350 g (6.6 lb.) |
|---|
| 連包裝重量 | Approx. 5420 g (11 lb.) |
|---|
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
|---|
| 一般功能 | password protection, watermark, IP address filter, pixel counter (only panorama mode supports) |
|---|
| Heater | Yes CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, |
|---|
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
|---|
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
|---|
