| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON) B/W: 0.002 Lux @ (F1.2, AGC ON), 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| Day ＆ Night | IR cut filter Four flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 30°to 96.3°, vertical FOV 17°to 54°, diagonal FOV 34° to 121° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 對焦 | Semi-auto,Manual |
|---|
| 光圈 | F1.6 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | 10 m to 30 m |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for each stream |
|---|
| Target Cropping | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G), ISAPI Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| 安全 | (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200 |
|---|
| 瀏覽器 | IE8+, Chrome31-44, Firefox 30.0-51 Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC, 3D DNR |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB |
|---|
| Audio | 1-ch 3.5 mm input (line in/mic in), 1-ch 3.5 mm output, dual-track, stereo |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA ) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | Yes FC interface, single mode, single fiber, 20 km transmission distance, (Tx) 1310 nm/1.25 G, (Rx) 1550 nm/1.25 G Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection Face detection, audio exception detection, scene change detection, defocus detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture 12 VDC ± 20%, 2.3 A, max. 28 W, |
|---|
| 供電 | Hi-PoE: 42.5 VDC to 57 VDC, 0.8 A to 0.6 A, max. 34 W, three-core terminal block |
|---|
| 材質 | Aluminum alloy, engineering plastics |
|---|

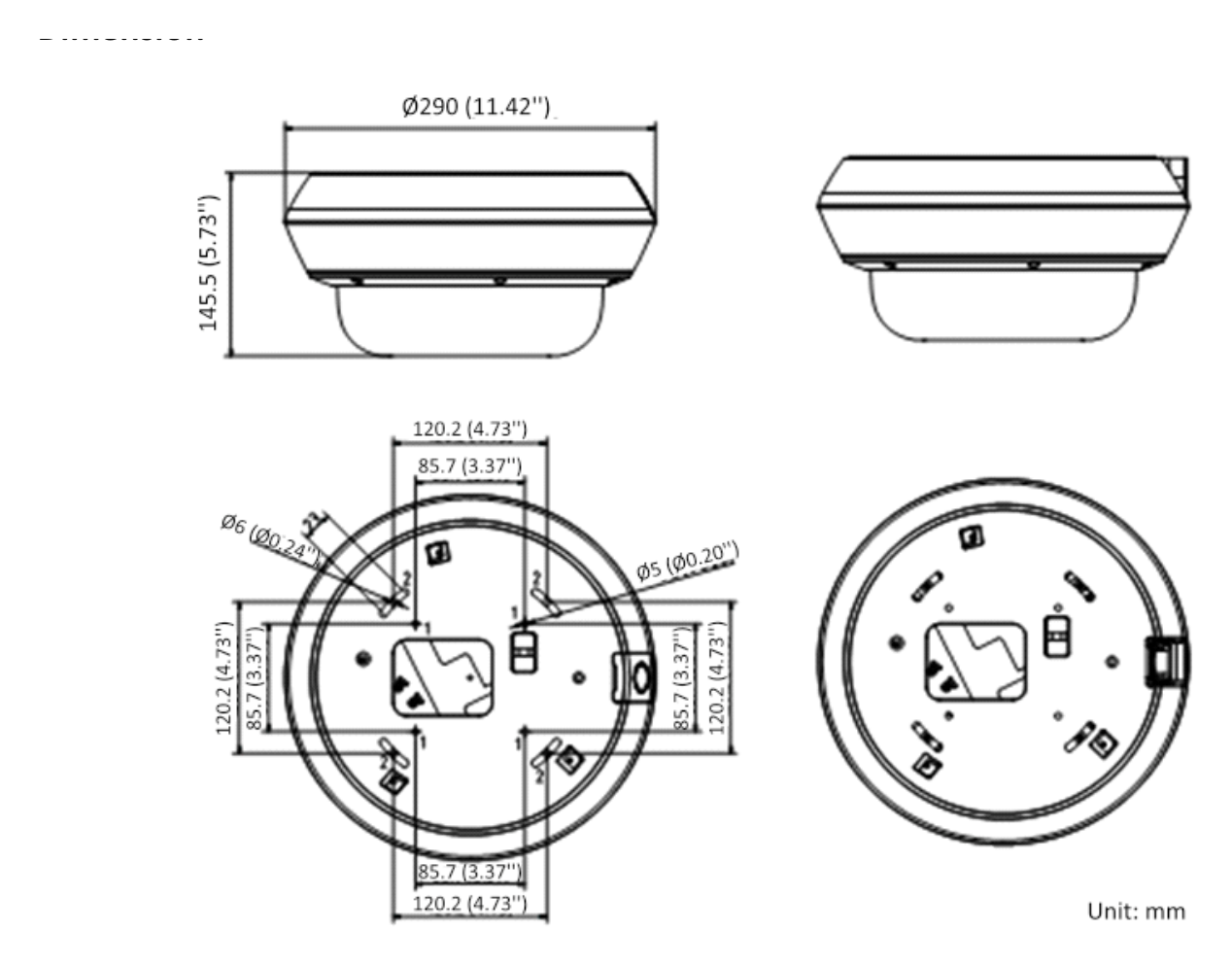

| 尺寸 | Ø 290 mm × 145.5 mm (Ø 11.42" × 5.73") |
|---|
| 包裝尺寸 | 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
|---|
| 重量 | Approx. 4.7 kg (10.3 lb.) |
|---|
| 連包裝重量 | Approx. 7.7 kg (16.8 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, |
|---|
| 一般功能 | One-key reset, anti-banding, mirror, heartbeat, password protection, privacy mask CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
|---|
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, |
|---|
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
