| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1920 Color: 0.0125 Lux @ (F1.9, AGC ON) B/W: 0.0025 Lux @ (F1.9, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| Day ＆ Night | IR cut filter |
|---|
| 角度調節 | Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 8 mm 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 對焦 | Semi-auto,Manual |
|---|
| 光圈 | F1.9 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 紅外波長 | 850 nm 50 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 50 Hz: 15 fps (704 × 576, 640 × 480) 60 Hz: 15 fps (704 × 480, 640 × 480) 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for each stream |
|---|
| Target Cropping | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| 安全 | (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central |
|---|
| 瀏覽器 | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Defog |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB |
|---|
| Audio | 1 input (line in), 1 output (line out), 3.5 mm three-contact |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | Yes Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection Scene change detection, audio exception detection, defocus detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture 12 VDC± 20%, 1.8 A, 22 W, reverse polarity protection, three-core terminal block |
|---|
| 供電 | 24 VAC ± 20%, 1.4 A, 22 W PoE: IEEE 802.3at, Class 4, 42.5 to 57 VDC, 0.44 to 0.33 A, 19 W |
|---|
| 材質 | Bubble & IR cover: plastic, camera: metal |
|---|

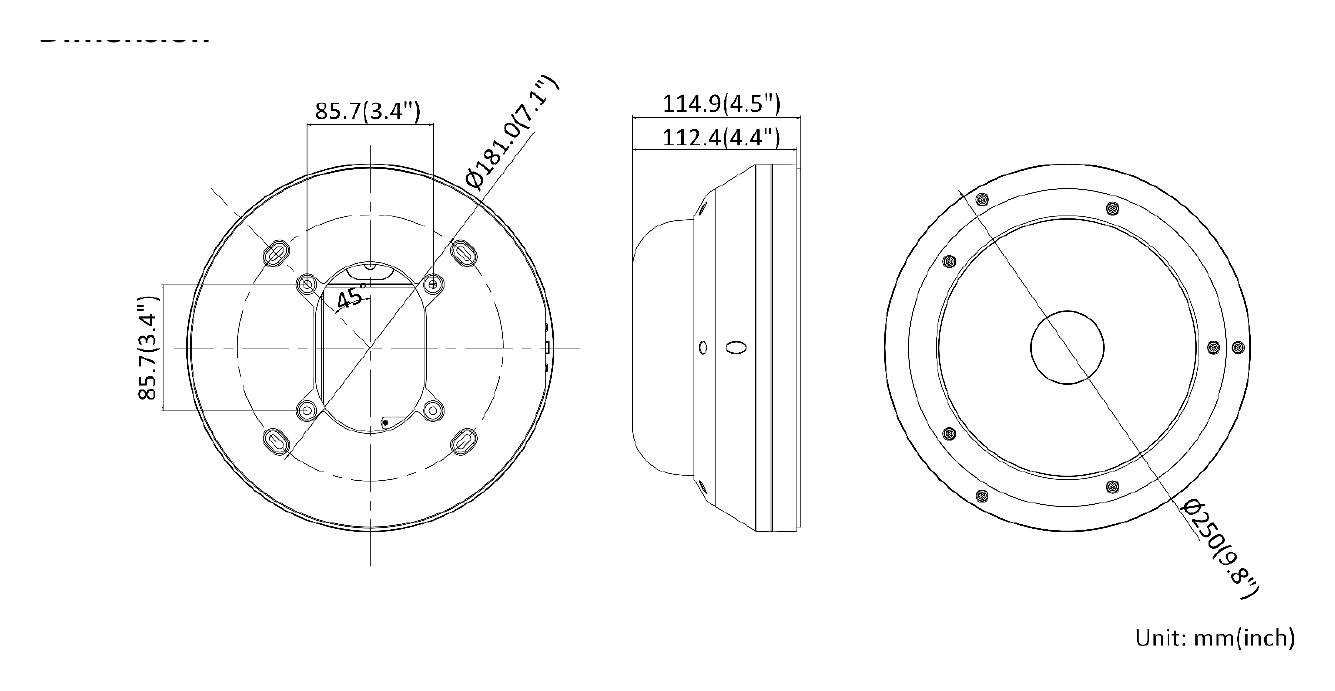

| 尺寸 | Ø 250 × 114.9 mm (Ø 9.8" × 4.5") |
|---|
| 包裝尺寸 | 336 mm × 261 mm × 293 mm (13.2" × 10.3" × 11.5") |
|---|
| 重量 | Approx. 2.2 kg (4.9 lb.) |
|---|
| 連包裝重量 | Approx. 3.9 kg (8.6 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Sloven |
|---|
| 一般功能 | Anti-banding, heartbeat, mirror, privacy mask CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
|---|
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, |
|---|
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Distance (Wide) | 60 m 23 m 12 m 6m |
|---|
| Distance (Tele) | 120 m 47 m 24 m 12 m |
|---|
