| 影像感測器 | Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1920 Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 350°,tilt: 0° to 90°,rotate: -90° to 90° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 8 mm,Fixed focal lens, 2 mm Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, |
|---|
| 鏡頭及視場角 | diagonal FOV 129° to 61.3° Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 對焦 | Varifocal: Semi-auto,Manual |
|---|
| 光圈 | Varifocal: F1.9; Fixed: F2.25 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 紅外波長 | 850 nm Channel 1,2,3,4: 50 Hz: 25 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720) Channel 5: 50 Hz: 25 fps (1440× 1440) 60 Hz: 30 fps (1440× 1440) Channel 1,2,3,4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 5: 50 Hz: 25 fps (576× 576, 480× 480) 60 Hz: 30 fps (576× 576, 480× 480) Channel 1,2 |
|---|
| 第三碼流 | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 64 0 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for each stream |
|---|
| Target Cropping | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
|---|
| 網絡協議 | UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication |
|---|
| 安全 | (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC,HLC,3D DNR,Defog |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | Yes Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),scene change detection, unattended baggage detection,object removal detection Upload to FTP/NAS/memory card,notif |
|---|

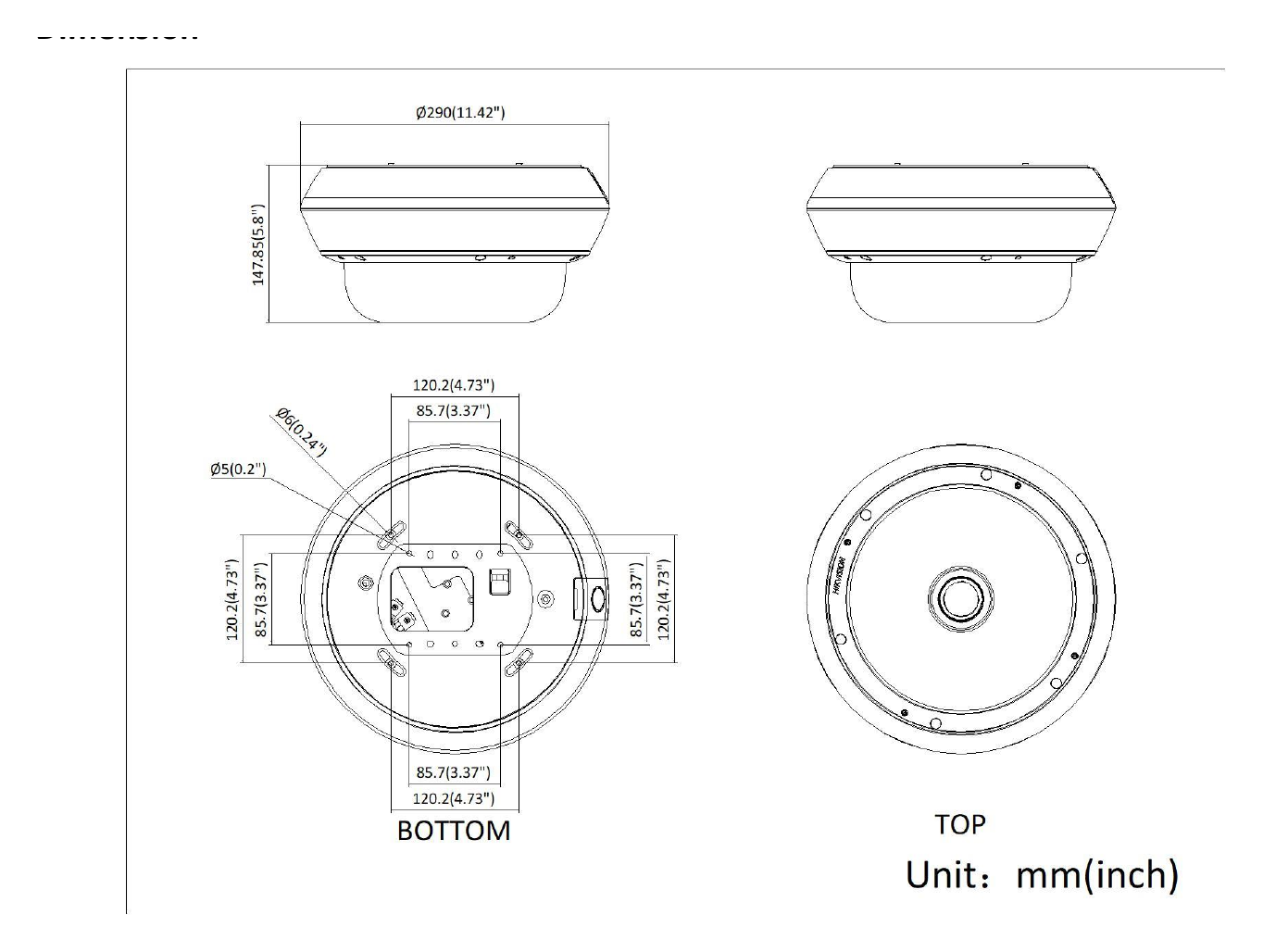

| 尺寸 | Ø 290 mm × 148 mm (Ø 11.42" × 5.8") |
|---|
| 包裝尺寸 | 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") |
|---|
| 重量 | Approx. 4.7 kg (10.36 lb.) |
|---|
| 連包裝重量 | Approx. 8.0 kg (17.63 lb.) |
|---|
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Distance (Wide) | 63.7 m 25.3 m 12.7 m 6.4 m |
|---|
| Distance (Tele) | 120.5 m 47.8 m 24.1 m 12.1 m |
|---|
