| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最大解像度 | 2560 × 1440 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/30,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | 25x optical, 16x digital |
|---|
| 慢快門 | yes |
|---|
| 焦距 | 4.8 mm to 120 mm Horizontal field of view: 55° to 2.4° (wide-tele), |
|---|
| 視場角 FOV | Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 光圈 | Max. F1.6 |
|---|
| 變焦速度 | Approx. 3.6 s |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | IR Distance: up to 100 m |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -15° to 90° (auto flip) |
|---|
| 水平速度 | pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s |
|---|
| 垂直速度 | tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | yes |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|---|
| PTZ 狀態顯示 | yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output |
|---|
| 斷電記憶 | yes 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 kbps to 16384 kbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
|---|
| 音訊取樣率 | MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz |
|---|
| 環境噪音過濾 | Yes IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
|---|
| 用戶管理 | Up to 32 users, 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200, HikCentral Pro, Hik-Connect |
|---|
| 瀏覽器 | IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | > 52 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
|---|
| Regional Focus | Yes |
|---|
| Regional Exposure | Yes |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| 警報 | 1 input, 1 output |
|---|
| 重設 | Yes |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception, alarm input and output Line crossing detection,intrusion detection,region entrance detection,region exiting Smart Event detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Linkage output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Detects up to 5 faces simultaneously. |
|---|
| 人臉抓拍 | Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
|---|
| 供電 | 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at) |
|---|

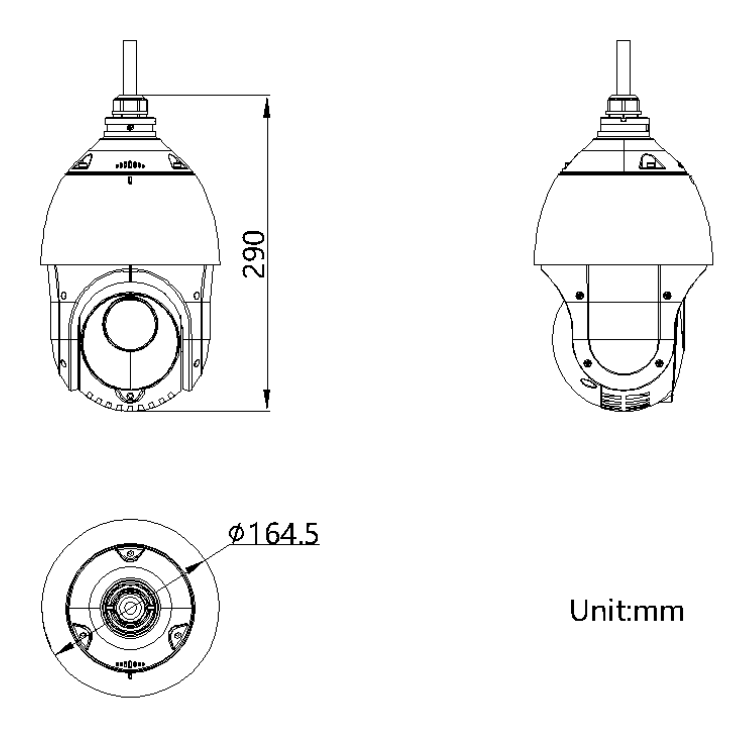

| 尺寸 | Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42") |
|---|
| 重量 | Approx. 2 kg (4.41 lb.) |
|---|
| 材質 | ADC12 |
|---|
| 工作環境 | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
|---|
| EMC | 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN |
|---|
| Safety | 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
|---|
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage Protection transient protection |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 2400.0 m (7874.0 ft) 952.4 m (3124.7 ft) 480.0 m (1574.8 ft) 240.0 m (787.4 ft) |
|---|
