HIKVISION DS-2DY9236I-CWXT5 CCTV攝影機安裝・保養

Name: HIKVISION DS-2DY9236I-CWXT5 316L 2MP 36x Explosion-proof Network Positioning System
Brand: Hikvision
SKU: DS-2DY9236I-CWXT5

產品簡介

Hikvision DS-2DY9236I-CWXT5 為316L 2MP 36x Explosion-proof Network Positioning System，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2DY9236I-CWXT5 香港價格連安裝報價。

影像感測器：1/1.8" progressive scan CMOS
最大解像度：1920 × 1080
最低照度：color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2,
快門速度：1/1s~1/30000 s
日夜切換：ICR

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2DY9236I-CWXT5 Hikvision 316L 2MP 36x Explosion-proof Network Positioning System 產品圖片

詳細規格

影像感測器	1/1.8" progressive scan CMOS
最大解像度	1920 × 1080
最低照度	color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
快門速度	1/1s~1/30000 s
日夜切換	ICR
變焦	36 × optical, 16 × digital
慢快門	yes
焦距	6.0~216 mm，36 × optical Horizontal field of view: 59° to 1.98° (wide-tele)
視場角 FOV	Vertical field of view: 34.16° to1.12° (wide-tele) Diagonal field of view: 67.1° to 2.3° (wide-tele)
對焦	Auto/Semi-automatic/Manual
光圈	F1.2
變焦速度	approx. 4.6 s
補光類型	IR
補光距離	150 m
智能補光	yes
紅外波長	850 nm
水平旋轉	360° endless
垂直旋轉	From -90° to 90° (auto-flip) Configurable, from 0.1°/s to 50°/s, Preset speed: 50°/s
垂直速度	Configurable, from 0.1°/s to 40°/s, Preset Speed: 40°/s
比例變倍	yes
預置位	300
預置位凍結	yes
巡航掃描	8 patrols, up to 32 presets for each patrol
花樣掃描	4 pattern scans, record time over 10 minutes for each scan Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ 狀態顯示	yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
斷電記憶	yes 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Main Stream: H.265+/H.265/H.264+/H.264
視頻壓縮	Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 16384 Kbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
SVC 分級編碼	yes
感興趣區域 ROI	8 fixed regions for each stream
音訊壓縮	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM
音訊碼率	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 -192 Kbps (MP2L2)
音訊取樣率	8 kHz/16 kHz/32 kHz/48 kHz
環境噪音過濾	yes IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
同時取流	Up to 20 channels Open Network Video Interface (Version 19.12, Profile S, Pr ofile G, Profile T), ISAPI, SDK, ISUP
Smooth Streaming	yes
用戶管理	Up to 32 users, 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
網絡儲存	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
客戶端	iVMS-4200, HikCentral Pro, Hik-Connect
瀏覽器	IE11, Chrome 57+, Firefox 52+, Safari 11+
圖像參數切換	yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
日夜模式	auto
寬動態 WDR	120 dB WDR
信噪比 SNR	≥52dB
除霧	Optical defog
影像增強	HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
隱私遮蔽	24 programmable polygon privacy masks, mask color or mosaic configurable
網絡接口	1 RJ45 10 M/100 M Ethernet
機身儲存	support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio	1-ch audio input and 1-ch audio output
警報	7-ch alarm input and 2-ch alarm output
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
基本事件	Motion detection, video tampering alarm, exception, alarm input and output Line crossing detection, intrusion detection, region entrance detection, region exiting
智能事件	detection, unattended baggage detection, object removal detection, audio exception detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Linkage output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking	Manual tracking, Event tracking 1. Detects up to 10 faces simultaneously 2. Uploads face with background and closed-up face pictures Face Capture 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face 100 VAC to 240 VAC Power Max.100 W (Max. 15 W for IR)
尺寸	451 mm × 258 mm × 507.5 mm (17.76" × 10.16" × 19.98")
重量	37.6 kg (82.91 lb.)
材質	SUS316L with anti-corrosion surface spray treatment
工作環境	-40°C to 60°C (-40°F to 140°F)，Working Humidity≤ 95% Anti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, General Function password protection, one-key reset, three streams
Cable Length	1.248 m (4.09 ft.)
Heater	Yes
Wiper	Yes FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
EMC	61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-
Safety	1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Protection ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;
Explosion-Proof Protection	For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
DORI 偵測距離	Detect Observe Recognize Identify
Definition	25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele)	2965m (9725.2 ft) 1177m (3860.6 ft) 593m (1945 ft) 297m (974.2 ft)

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

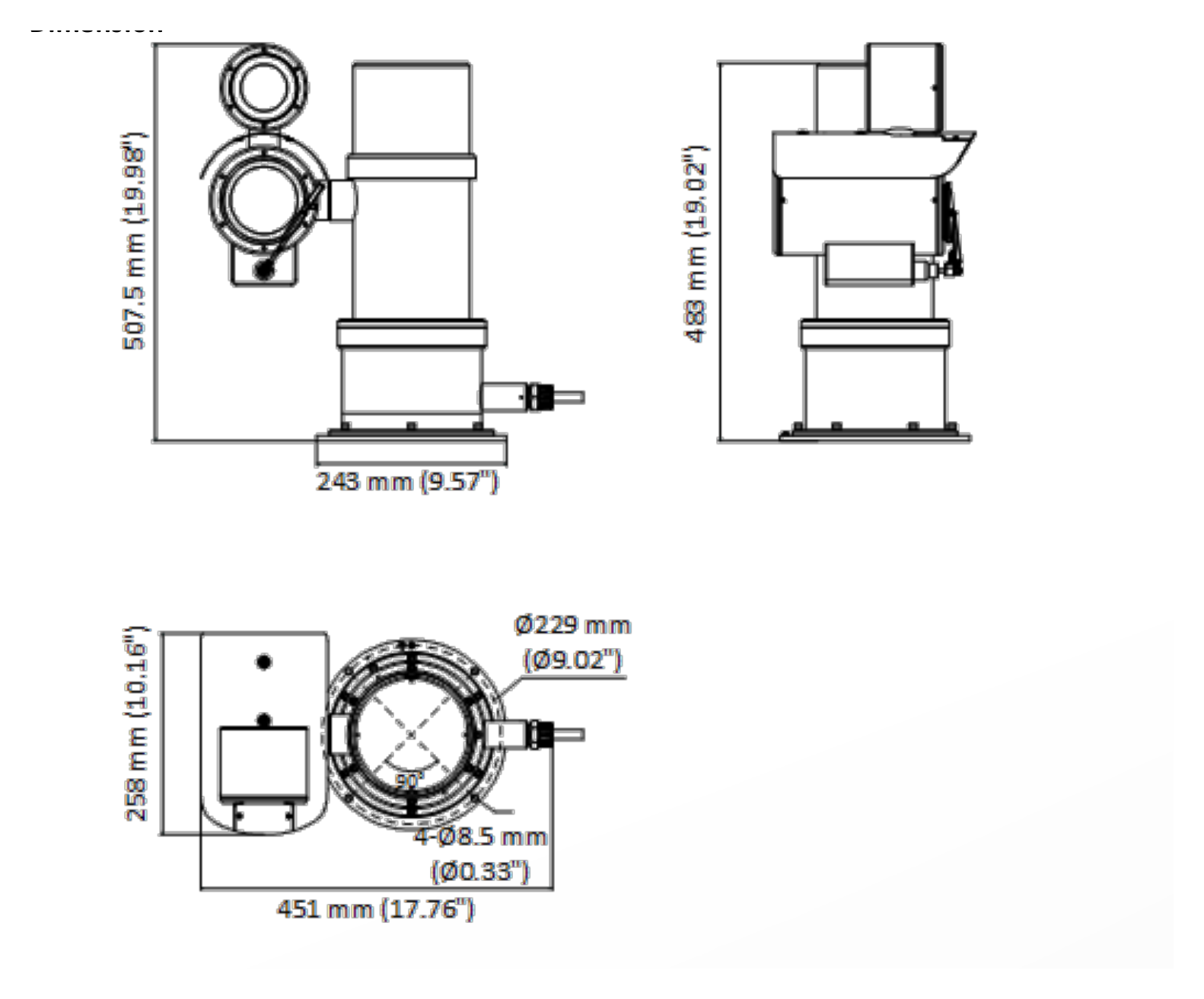

外形尺寸

451 mm × 258 mm × 507.5 mm (17.76" × 10.16" × 19.98")｜重量 37.6 kg (82.91 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DS-2DY9236I-CWXT5 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DS-2DY9236I-CWXT5 Hikvision 316L 2MP 36x Explosion-proof Network Positioning System亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

常見問題

DS-2DY9236I-CWXT5 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DS-2DY9236I-CWXT5 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。

DS-2DY9236I-CWXT5 定 DS-2XE6885G0-ILZHS 邊個好？

兩者主要規格分別：影像感測器方面，DS-2DY9236I-CWXT5 係 1/1.8" progressive scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；最大解像度方面，DS-2DY9236I-CWXT5 係 1920 × 1080，DS-2XE6885G0-ILZHS 係 3840 × 2160；快門速度方面，DS-2DY9236I-CWXT5 係 1/1s~1/30000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
