| 快門速度 | 1/1 ~ 1/30,000 s [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), |
|---|
| 最低照度 | [PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR |
|---|
| 日夜切換 | [Bullet channel] no, [PTZ channel] IR cut filter |
|---|
| 變焦 | 40 × optical,16 × digital |
|---|
| 最大解像度 | [Panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160 |
|---|
| 對焦 | Auto,semi-auto,manual |
|---|
| 光圈 | [Bullet channel] F1.0, [PTZ channel] F1.6 [panoramic channel]: 6 mm [PTZ channel]: 6 to 240 mm: 40× optical [Panoramic channel] horizontal field of view: 55.2°, vertical field of view: 29.3°, diagonal field of view: 64.8° [PTZ channel] horizontal field of view: 61.1° to 2.1°, vertical field of view: 35.9° to 1.2°, diagonal field of view: 68.5° to 2.4° (W-T) |
|---|
| 補光類型 | IR Laser (default: off) |
|---|
| 補光距離 | IR laser distance: up to 1000 m |
|---|
| 智能補光 | Yes |
|---|
| 垂直旋轉 | -90° to 90° Pan speed: configurable from 0.1° to 100°/s, preset speed: 100°/s,Pan speed: configurable up to °/s, preset speed: °/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
|---|
| 水平旋轉 | 360° |
|---|
| Proportional Zoom | [panoramic channel]: no; [PTZ channel]: yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols |
|---|
| 花樣掃描 | 4 pattern scans |
|---|
| 斷電記憶 | [panoramic channel]: no; [PTZ channel]: yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| 預置位凍結 | [panoramic channel]: no; [PTZ channel]: yes Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream [panoramic channel] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|---|
| 主碼流 | [PTZ channel] 50Hz: 25fps (3840 × 2160 ，2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (3840 × 2160 ，2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [panoramic channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) [panoramic chann |
|---|
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) MP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
|---|
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP Password protection,complicated password,host authentication (MAC address),HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),IP address filter |
|---|
| 瀏覽器 | IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
|---|
| 網絡儲存 | NAS (NFS, SMB/ CIFS) ,null HTTP,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,IC MP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets,null |
|---|
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200 |
|---|
| 寬動態 WDR | 140 dB |
|---|
| 防抖 | [Panoramic channel]: EIS,[PTZ channel]: OIS |
|---|
| 影像增強 | BLC,HLC,3D DNR |
|---|
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
|---|
| 除霧 | Optical defog |
|---|
| Regional Exposure | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 圖像參數切換 | Yes Privacy Mask color or mosaic configurable |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 通訊接口 | RJ45, self-adaptive 10M/100M Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 警報 | 7 input(s), 2 output(s) 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω Motion detection,video tampering alarm,exception (network disconnected, IP address |
|---|
| 基本事件 | conflict, illegal login, HDD full, HDD error),vandal -proof alam,audio exception detection,alarm input and output Line crossing detection,intrusion detection,region entrance detection,region exiting |
|---|
| 智能事件 | detection,object removal detection,unattended baggage detec tion,support alarm triggering by specified target types (human and vehicle) |
|---|
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle |
|---|
| 人臉抓拍 | Detects up to 30 faces simultaneously |
|---|
| 供電 | 36 VDC ± 25%, max. 92 W |
|---|
| 工作環境 | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
|---|
| Wiper | Yes 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Anti-flicker,heartbeat,mirror,flash log,passw |
|---|

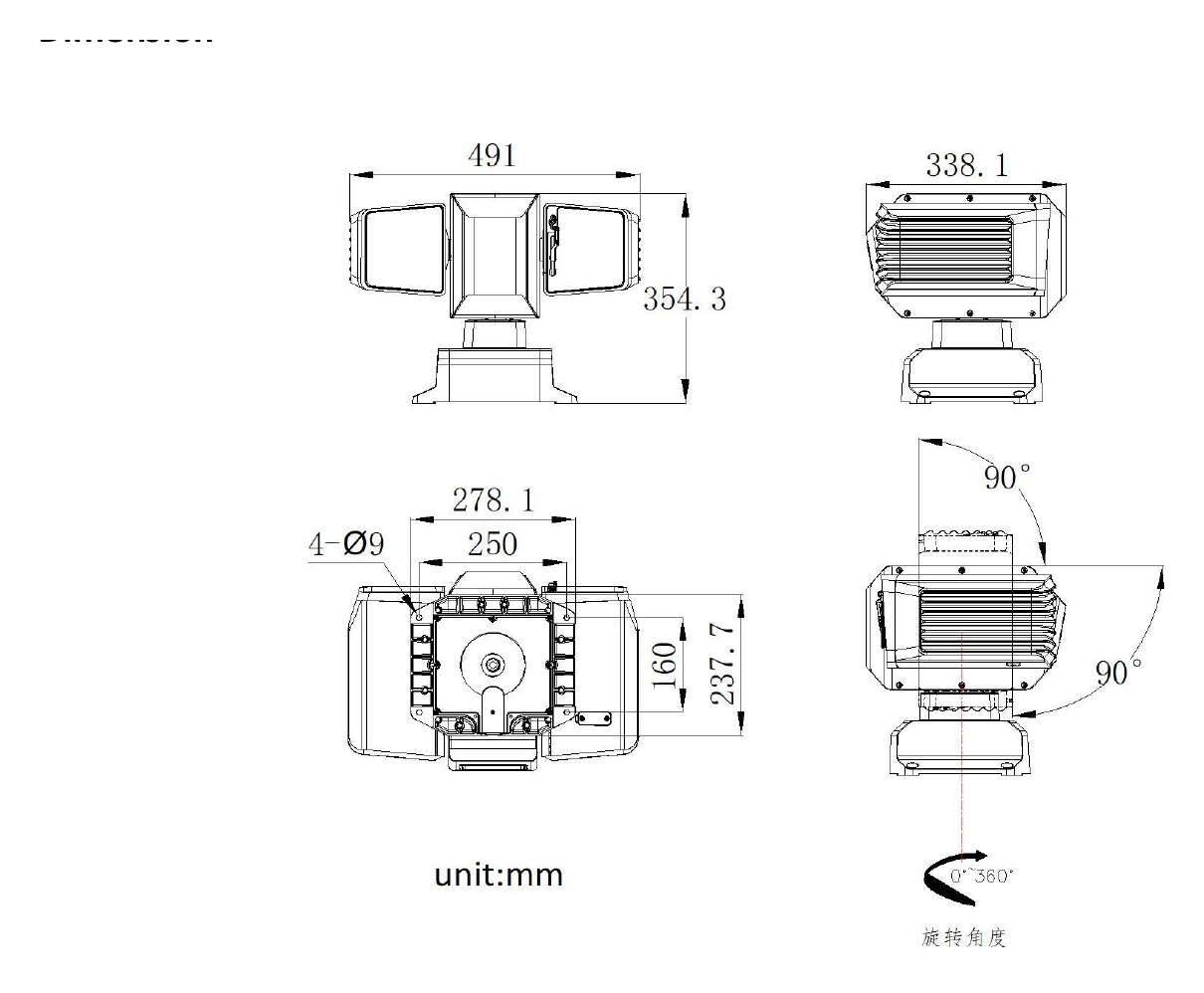

| 尺寸 | 491 mm × 338.1 mm × 354.3 mm (19.34" × 13.32" × 13.96") |
|---|
| 重量 | Approx. 23.1 kg (50.82 lb.) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7) CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),LOA (IEC/EN 60950-1) |
|---|
| Environment | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage Protection transient protection,IK10 (Excepts Lens) (IEC 62262:2002) |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 3310.3 1313.6 662.1 331 |
|---|
