| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|
| 解像度 | 160 × 120 |
|---|
| Pixel Pitch | 17 μm |
|---|
| Spectral Range | 8 μm to 14 μm |
|---|
| NETD | <40 mK (@ 25 °C, F# = 1.1) |
|---|
| 焦距 | 6.2 mm |
|---|
| IFOV | 2.74 mrad |
|---|
| Field of View | 25.0° × 18.7° (H × V) |
|---|
| Min. Focusing Distance | 0.6 m |
|---|
| 光圈 | F1.1 |
|---|
| Digital Zoom | × 2, × 4 |
|---|
| 最低照度 | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| Aperture (Range) | F1.6 |
|---|
| WDR | 120 dB |
|---|
| Target Coloration | Yes. Supported in white hot and black hot mode. |
|---|
| IR Distance | Up to 15 m |
|---|
| IR Intensity and Angle | Automatically adjusted |
|---|
| 白光距離 | Up to 30 m |
|---|
| Visual Alarm | Yes. White light alarm with adjustable flashing frequencies Yes, for two types of audible alarm (VCA, Temperature) |
|---|
| Audio alarm | 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (4 options shared in the two types) 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
|---|
| Temperature Range | - 20 °C to 150 °C (- 4 °F to 302 °F) |
|---|
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
|---|
| 一般功能 | Fire detection, smoking detection, sun-reflection filter, Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
|---|
| 主碼流 | Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) |
|---|
| 子碼流 | Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile |
|---|
| 同時取流 | Up to 20 channels |
|---|
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
|---|
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
|---|
| 警報輸入 | 1, alarm input (0-5 VDC) |
|---|
| 警報輸出 | 1, alarm output (alarm response actions configurable) |
|---|
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
|---|
| 音訊輸出 | Linear level, impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, |
|---|
| 介面語言 | Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 12 VDC ± 25%, φ 5.5 mm coaxial power plug Power Supply PoE (802.3af, class 3) 12 VDC ± 25%: 0.5 A, Max 6 W Power Consumption PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W |
|---|
| Working | Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) |
|---|
| Temperature/Humidity | Humidity: 95% or less IP67 Standard Protection Level TVS 6000V lightning protection, surge protection, voltage transient protection |
|---|

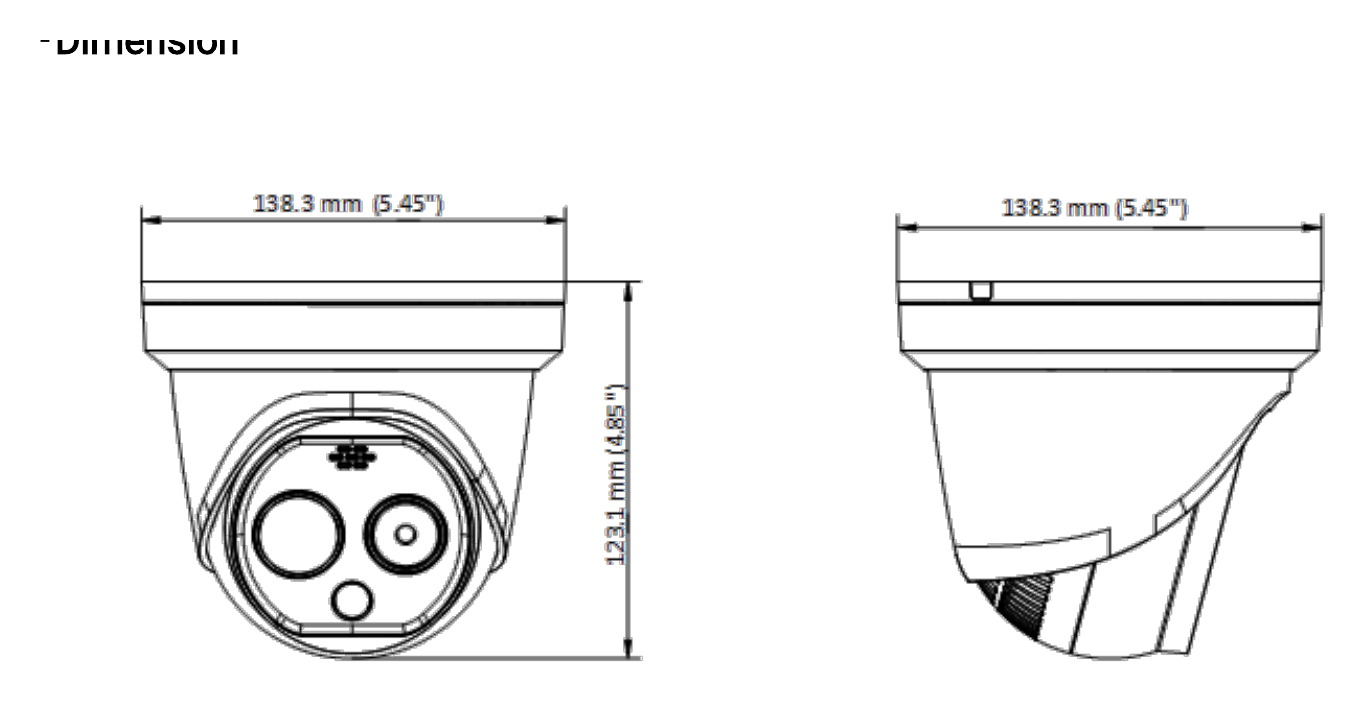

| 尺寸 | 138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85 ") |
|---|
| 重量 | 940 g (2.07 lb) Range Table |
|---|
| Detection | Detection Recognition Recognition Identification Identification Smoking |
|---|
| Range | Range Range Range Range Range Detection (Vehicles: 1.4 (Humans: 1.8 (Vehicles: 1.4 (Humans: 1.8 (Vehicles: 1.4 (Humans: 1.8 |
|---|
| × 4.0 m) | × 0.5 m) × 4.0 m) × 0.5 m) × 4.0 m) × 0.5 m) 559 m 182 m 140 m 46 m 70 m 23 m 6.2m |
|---|
| VCA Range | VCA Range Temperature Temperature Fire Detection (Vehicles: 1.4 × 4.0 (Humans: 1.8 × 0.5 Measurement Measurement (Object: 0.2 × |
|---|
| m) | m) (Object: 0.2 × 0.2 m) (Object: 1 × 1 m) 0.2m） 85 m 30 m 13.6 m 68 m 62 m |
|---|
