HIKVISION DS-2TD2568T-15 CCTV攝影機安裝・保養

Name: HIKVISION DS-2TD2568T-15 Explosion-Proof Thermal Camera
Brand: Hikvision
SKU: DS-2TD2568T-15

產品簡介

Hikvision DS-2TD2568T-15 為Explosion-Proof Thermal Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TD2568T-15 香港價格連安裝報價。

影像感測器：Vanadium Oxide Uncooled Focal Plane Arrays
解像度：640 x 512
Pixel Pitch：12 μm
NETD：≤ 25 mK (@25° C,F# = 1.0)
焦距：15 mm

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2TD2568T-15 Hikvision Explosion-Proof Thermal Camera 產品圖片

詳細規格

影像感測器	Vanadium Oxide Uncooled Focal Plane Arrays
解像度	640 x 512
Pixel Pitch	12 μm
NETD	≤ 25 mK (@25° C,F# = 1.0)
焦距	15 mm
IFOV	0.8 mrad
光圈	F1.0
Field of View	29.7° × 23.6° (H × V)
Min. Focusing Distance	3m
Digital Zoom	x2, x4
最低照度	Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
WDR	120 dB
Picture in Picture	Display partial image of thermal channel on the full screen of optical channel
Target Coloration	Yes. Supported in white hot and black hot mode.
EIS	Thermal channel supports EIS, exclusive with all smart functions
IR Distance	Up to 30m
IR Intensity and Angle	Automatically adjusted 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules. 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range	-20°C to 650°C (-4°F to 1,202°F)
Temperature Accuracy	Max (± 2°C, ± 2%)
Fire Detection	Dynamic fire detection, up to 10 fire points detectable
Smoke Detection	Support smoke detection on optical channel
警報輸入	2-ch inputs (0 to 5 VDC)
警報輸出	2-ch relay outputs, alarm response actions configurable
Alarm Action	SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
音訊輸入	Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%
音訊輸出	Linear Level; Impedance: 600 Ω 1, RS-485 interface (half duplex) Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
主碼流	Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25 fps (704 × 576, 640 × 512, 384 × 288)
子碼流	Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
音訊壓縮	G.711u/G.711a/G.722.1/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
同時取流	Up to 20
User/Host level	Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording
Application Programming	Support ISAPI, HIKVISION SDK and third-party management platform
客戶端	iVMS-4200
瀏覽器	Google Chrome 57+, Mozilla Firefox 52+, Internet Explorer 10+, Mac Safari 12+ 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian,
Menu Language	Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
供電	100 to 240 VAC, PoE (802.3af)
功耗	100 to 240 VAC, PoE (802.3af), max.11W
Work Temperature/Humidity	-40°C to 60°C (-40°F to 140°F), 95% or less IP68 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
尺寸	290.7 mm × 177.5 mm × 152.0 mm (11.44″ × 6.99″ × 5.98″)
重量	Approx. 6.5 kg (14.33 lb) CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
防護等級	IP68: IEC 60529-2013 ATEX: II 2 G Ex db IIC T6 Gb/II 2 D Ex tb IIIC T80°C Db Explosion-Proof Protection IECEx: Ex db IIC T6 Gb/ Ex tb IIIC T80°C Db
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018), C5 Range Table
Temperature	Temperature Smoke
VCA Range	VCA Range Fire
Measurement	Measurement detection (Vehicles: 1.4 x (Humans: 1.8 x detection(Object (Object: 0.2 x (Object: 0.5 x (Object: 0.5 x 4.0 m) 0.6 m) : 0.2 x 0.2m) 0.2 m) 0.5 m) 0.5m) 450 m 150 m 45 m 120 m 180 m 20 m
Detection Range	Detection Range Recognition Recognition Identification Identification (Vehicles: 1.4 x (Humans: 1.8 x Range (Vehicles: Range (Humans: Range (Vehicles: Range (Humans: 4.0 m) 0.6 m) 1.4 x 4.0 m) 1.8 x 0.6 m) 1.4 x 4.0 m) 1.8 x 0.6 m) 1917 m 625 m 479 m 156 m 240 m 78m

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

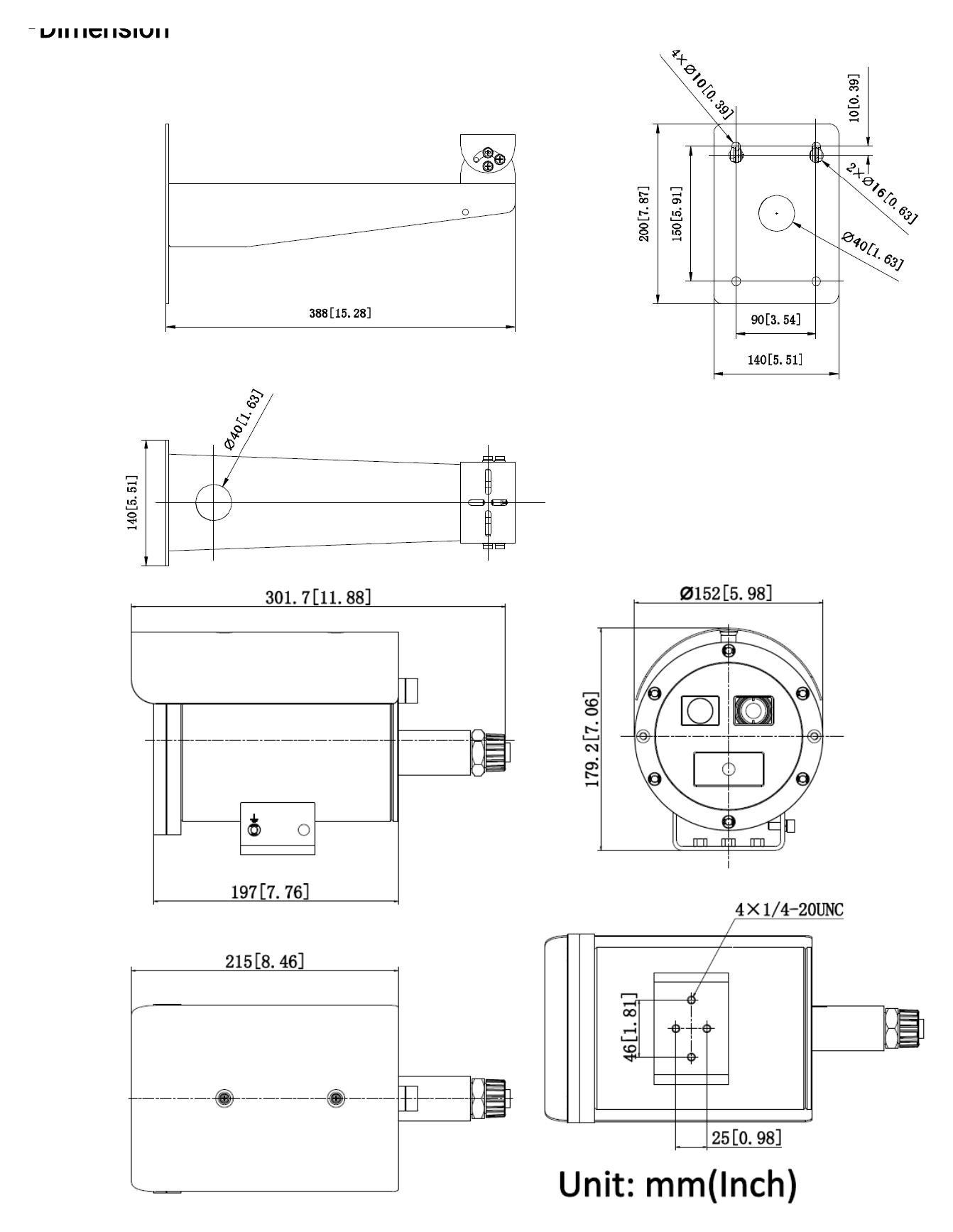

外形尺寸

290.7 mm × 177.5 mm × 152.0 mm (11.44″ × 6.99″ × 5.98″)｜重量 Approx. 6.5 kg (14.33 lb) CE-EMC (EN 55032: 2015, EN 61000-3-

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DS-2TD2568T-15 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DS-2TD2568T-15 Hikvision Explosion-Proof Thermal Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

常見問題

DS-2TD2568T-15 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DS-2TD2568T-15 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。

DS-2TD2568T-15 定 DS-D4039CD-1F 邊個好？

兩者主要規格分別：解像度方面，DS-2TD2568T-15 係 640 x 512，DS-D4039CD-1F 係 128 × 128；Pixel Pitch方面，DS-2TD2568T-15 係 12 μm，DS-D4039CD-1F 係 3.90625 mm；供電方面，DS-2TD2568T-15 係 100 to 240 VAC, PoE (802.3af)，DS-D4039CD-1F 係 110~220 VAC ± 15%。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
