| Tracking Mode | Manual/Auto Drawing an area in VMS client within the field of the bullet camera, leading the PTZ camera zooming in |
|---|
| Multi-targets Tracking | Up to 30 targets simultaneously |
|---|
| Event Tracking | Intrusion Detection, Line Crossing Detection |
|---|
| Tracking Duration | Configurable in VMS client for PTZ tracking 3 temperature measurement rule types; 21 rules in total (10 points, 10 areas, and 1 line) |
|---|
| Temperature Range | - 20 °C to 150 °C (- 4 °F to 302 °F) |
|---|
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
|---|
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. |
|---|
| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|
| 解像度 | 384 × 288 |
|---|
| Pixel Pitch | 17 μm |
|---|
| Spectral Range | 8 μm to 14 μm ≤ 35 mk (@ 25 °C,F# = 1.0) |
|---|
| 焦距 | 9.7 mm |
|---|
| IFOV | 1.75 mrad |
|---|
| Field of View | 37.5° × 28.5° (H × V) |
|---|
| Min. Focusing Distance | 1m |
|---|
| 光圈 | F1.0 |
|---|
| Digital Zoom | ×2, ×4, ×8 |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 最低照度 | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
|---|
| WDR | 120 dB Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|
| 主碼流 | 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) |
|---|
| 子碼流 | 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240) Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/OPUS/PCM 2, alarm input (0-5 VDC) 2, alarm output |
|---|
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable 1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10% |
|---|
| 音訊輸出 | Linear level, impedance: 600 Ω 1, RJ45 10 M/100 M self-adaptive Ethernet interface. 1, RS-485 interface |
|---|
| 變焦速度 | Approx. 4.8 s (Optical, Wide-Tele) |
|---|
| Working Distance | 100 mm to 1500 mm (Wide-Tele) |
|---|
| Aperture Range | F1.2 to F4.6 |
|---|
| 影像增強 | 3D DNR, EIS, HLC/BLC, SVC |
|---|
| AGC | Auto/Manual Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp |
|---|
| Day ＆ Night | IR cut filter |
|---|
| IR Supplement | Up to 400 m |
|---|
| 隱私遮蔽 | 24 programmable privacy masks |
|---|
| Optical Defog | Yes |
|---|
| 水平速度 | configurable from 0.1° to 210°/s; preset speed: 280°/s |
|---|
| 垂直速度 | configurable from 0.1° to 150°/s, preset speed 250°/s 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 4 |
|---|
| 視頻壓縮 | Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|---|
| 警報輸入 | 7, alarm input (0-5 VDC) |
|---|
| API | ISAPI, HIKVISION SDK, open network video interface |
|---|
| 同時取流 | Up to 20 channels |
|---|
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
|---|
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + Network Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45° Speed Dome: Pan: 360°, Tilt: -20° to 90°, Auto Flip |
|---|
| Mount | Pole Mount 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| Menu Language | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|---|
| 供電 | 24 VAC±25%,one power supply for whole system max. 70 W |
|---|
| Speed Dome Consumption: max.60W | (If powered separately) - 40 °C to 65 °C (-40 °F to 149 °F); Humidity: 90% or Less IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|---|

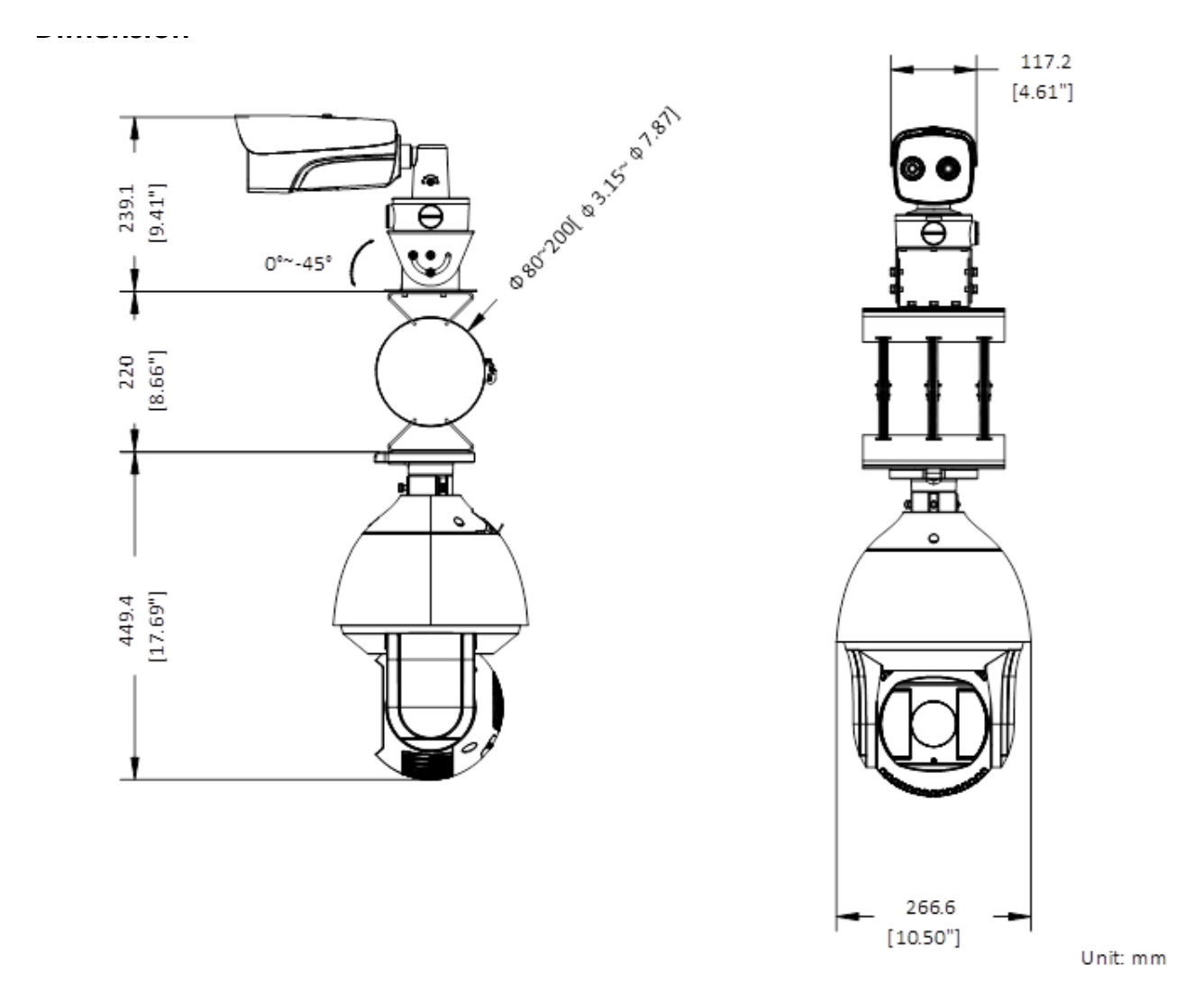

| 尺寸 | 401 mm × 266.4 mm × 912.2 mm (15.8" × 10.5" ×35.9") |
|---|
| 重量 | 12.9 kg (Approx. 28.4 lb) Range Table |
|---|
| VCA Range (Vehicles: 1.4 | VCA Range (Humans: 1.8 Temperature Measurement Temperature Measurement |
|---|
| × 4.0 m) | × 0.5 m) (Object: 0.2 × 0.2 m) (Object: 1 × 1 m) 210m 70m 23m 114m |
|---|
| Detection Range | Detection Range Recognition Recognition Identification Identification (Vehicles: 1.4 × (Humans: 1.8 × Range (Vehicles: Range (Humans: Range (Vehicles: Range (Humans: 4.0 m) 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 902 m 294 m 225 m 74 m 113 m 37 m |
|---|
