HIKVISION DS-2TXS2628-8P CCTV攝影機安裝・保養

Name: HIKVISION DS-2TXS2628-8P Solar-powered Thermal Camera Kit
Brand: Hikvision
SKU: DS-2TXS2628-8P

產品簡介

Hikvision DS-2TXS2628-8P 為Solar-powered Thermal Camera Kit，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TXS2628-8P 香港價格連安裝報價。

影像感測器：Vanadium Oxide Uncooled Focal Plane Arrays
解像度：256 x 192
Pixel Pitch：12 μm
NETD：≤ 40 mK (@25° C,F# = 1.0)
焦距：8 mm

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2TXS2628-8P Hikvision Solar-powered Thermal Camera Kit 產品圖片

詳細規格

影像感測器	Vanadium Oxide Uncooled Focal Plane Arrays
解像度	256 x 192
Pixel Pitch	12 μm
NETD	≤ 40 mK (@25° C,F# = 1.0)
焦距	8 mm
IFOV	1.5 mrad
光圈	F1.0
Field of View	23.7° × 17.8° (H × V)
Min. Focusing Distance	1.5 m
Digital Zoom	×2, ×4
最低照度	0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
快門速度	1 s to 1/100,000 s MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day ＆ Night Mode	IR Cut Filter with Auto Switch
WDR	120 dB
Bi-spectrum Image Fusion	Display the details of optical channel on thermal channel
Target Coloration	Yes. Supported in white hot and black hot mode
IR Distance	Up to 30 m
IR Intensity and Angle	Automatically adjusted
白光距離	Up to 30 m
Visual Alarm	Yes. White light alarm with adjustable flashing frequencies Yes, for three types of audible alarm (VCA and Temperature Exception)
Audio alarm	3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range	-20°C to 150°C (-4°F to 302°F)
Temperature Accuracy	± 8°C (± 14.4°F) Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
主碼流	Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
子碼流	Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
音訊壓縮	G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
網絡協議	IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,R TP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP MicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
同時取流	Up to 20 channels
User/Host level	Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
客戶端	iVMS-4200, Hik-Connect
SIM Card Type	MicroSIM LTE FDD: B 1/3/5/7/8/20/28
Frequency	LTE TDD: B 38/40/41 WCDMA: B 1/5/8
標準	LTE FDD/LTE TDD/WCDMA/GSM/GPRS/EDGE
警報輸入	2, alarm input (0-5 VDC)
警報輸出	2, alarm output (alarm response actions configurable) Linkage Method Trigger recording: memory card, network storage, pre-record and
Alarm Action	post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
音訊輸出	Linear level, impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Menu Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, V
功耗	The max. power consumption: 6.24W (IR light on) standby power consumption：0.39W Temperature: -40°C to 65°C (-40°F to 149°F) Working Temperature/Humidity Humidity: 95% or less
IP67 Standard	,IK10-rated housing Protection Level TVS 4000V lightning protection, surge protection, voltage transient protection

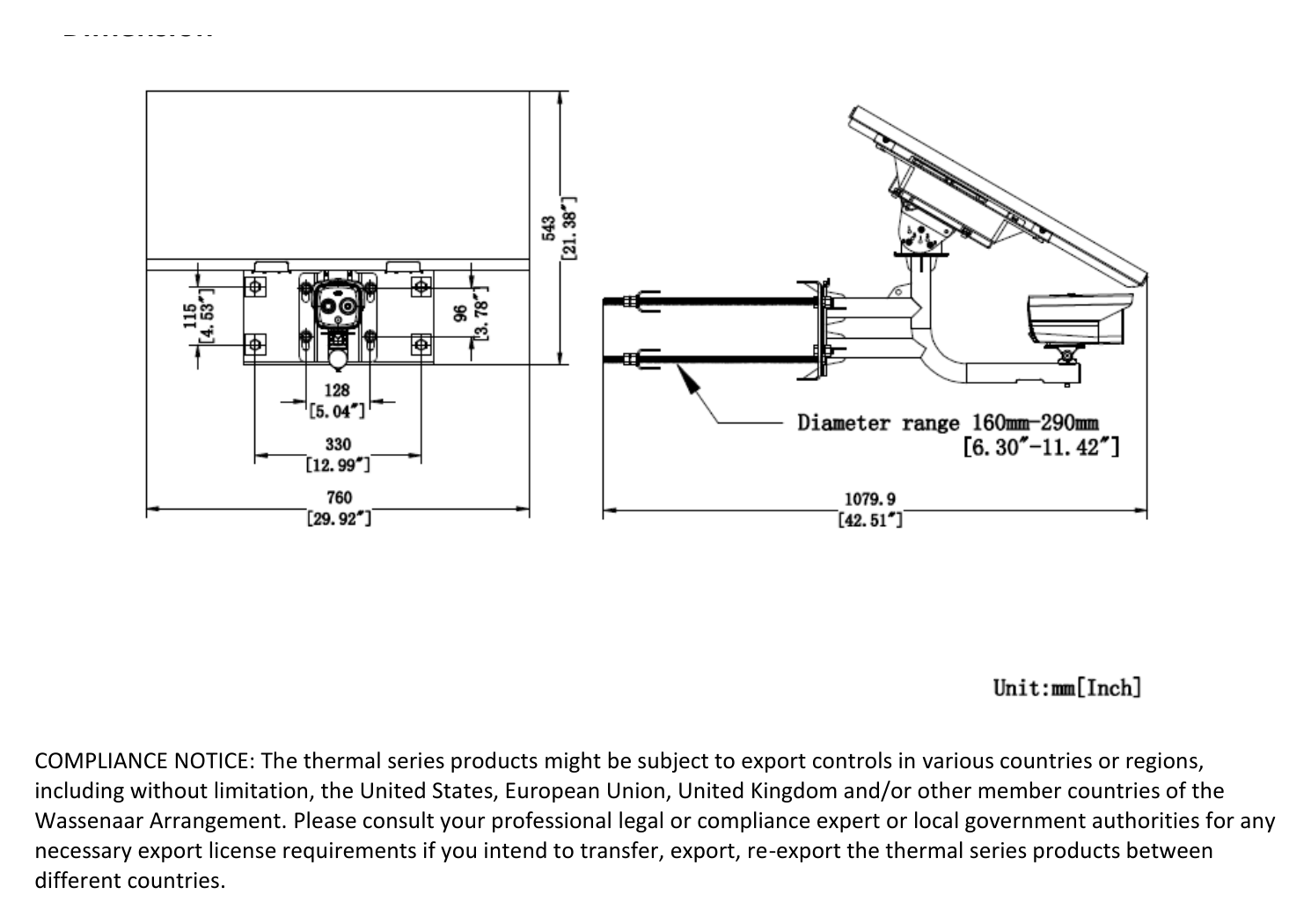

尺寸	208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14") Bullet camera: Tilt: -10 ° to +45°, Pan: -180 ° to +180° Adjustment Range Photovoltaic panel: Tilt: 10 ° or 30°
Mount	Pole Mount
連包裝重量	33.09kg(72.95lb) Temperature: -40°C to 65°C (-40°F to 149°F) Storage Conditions Humidity: 95% or less
Startup and Operating	Temperature: -40°C to 65°C (-40°F to 149°F)
Conditions	Humidity: 95% or less Battery
Battery Type	Lithium
Battery Voltage	10.8 V
Battery Capacity	360 Wh (90 Wh for each battery)
Charging:	-20 °C to 45 °C (-4 °F to 113 °F) Operating Temperature Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery Life	More than 500 cycles
Battery Weight	Approx. 2.74 kg (6.0 lb.)
Max. Output Voltage	12.6 V Camera: IP67 (IEC 60529-2013),IK10-rated housing
防護等級	TVS 4000V lightning protection, surge protection, voltage transient protection Wind resistance 12 level Range Table
VCA Range (Humans: 1.8	VCA Range (Vehicles: 1.4 Temperature Measurement Temperature Measurement
× 0.5 m)	× 4.0 m) (Object: 1 × 1 m) (Object: 0.2 × 0.2 m) 64m 192m 128m 25.6m
Detection Range	Detection Range Recognition Recognition Identification Identification (Humans: 1.8 × (Vehicles: 1.4 × Range (Humans: Range (Vehicles: Range (Humans: Range (Vehicles: 0.5 m) 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 240m 570m 60m 140m 30m 70m
