| 影像感測器 | 1/2.8ʺ Progressive Scan CMOS Color: 0.002 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F2.25, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F2.25, AGC ON) |
|---|
| 快門速度 | 1/3 s to 1/100, 000 s |
|---|
| 解像度 | 1920 × 1080 |
|---|
| 日夜切換 | IR cut filter Pan: 0°，Tilt: 0° to 25°，Zoom: 0° (Noted： Ceiling installation angle is :Pan: 0°，Tilt: 0° to 60°，Zoom: 0°) |
|---|
| 視場角 FOV | Horizontal FOV:108°, Vertical FOV: 74°, Diagonal FOV:115° |
|---|
| 焦距 | 2mm |
|---|
| 鏡頭接口 | M12 |
|---|
| Max. Aperture | F2.25 |
|---|
| 紅外波長 | 850 nm |
|---|
| IR Range | Up to 3 m IR range |
|---|
| H.264+ | Main stream, Sub-stream, Third stream |
|---|
| H.265+ | Main stream, Sub-stream, Third stream 50Hz: 25fps (1920 ×1080, 1440 × 900); 60Hz: 30fps (1920 ×1080, 1440 × 900) 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 576, 640 × 480) 50Hz: 25fps (1920 × 1080) 60Hz: 30fps (1920 × 1080) Main stream: H.265+/H.265/H.264+/H.264 |
|---|
| 視頻壓縮 | Sub stream: H.265+/H.265/H.264/ H.264+/MJPEG Third stream：H.265+/H.265/H.264+/H.264 Main stream: 512Kbps to 16Mbps |
|---|
| 視頻碼率 | Sub stream: 256Kbps to 4Mbps Third stream：256Kbps to 4Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 感興趣區域 ROI | Support 2 fixed region for (main/sub) stream TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS |
|---|
| 同時取流 | Up to 16 channels(Main Stream and Sub Stream each 8 channels) |
|---|
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
|---|
| User Management | Up to 16 users of 3 levels of user authority: administrator, operator and common user |
|---|
| 瀏覽器 | IE8+, Chrome41+, Edge16+, Firefox30+ Support overlay of a 24 bit BMP picture of 128×128; support the picture uploading, enable the overlay, and set the coordinate of the picture. |
|---|
| DNR | Support Brightness, contrast, saturation, white balance and sharpness can be adjusted via browser and client |
|---|
| 日夜模式 | Day, Night, Auto, Scheduled, Triggered by alarm |
|---|
| 影像增強 | BLC, HLC, 2DNR ,3DNR |
|---|
| 警報 | 2 channels of alarm input, 2 channels of alarm output |
|---|
| RS-485 | 1 channels of RS-485 |
|---|
| Interface Type | Built-in Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering) Support counting people entering and exiting separately; |
|---|
| People Counting | Support real-time and scheduled uploading of the statistics; Support filtering target by height. |
|---|
| 基本事件 | Video tampering, exception (disk full, disk error, illegal login) |
|---|
| 聯動方式 | Upload to FTP, notify monitoring center, send email, alarm output |
|---|

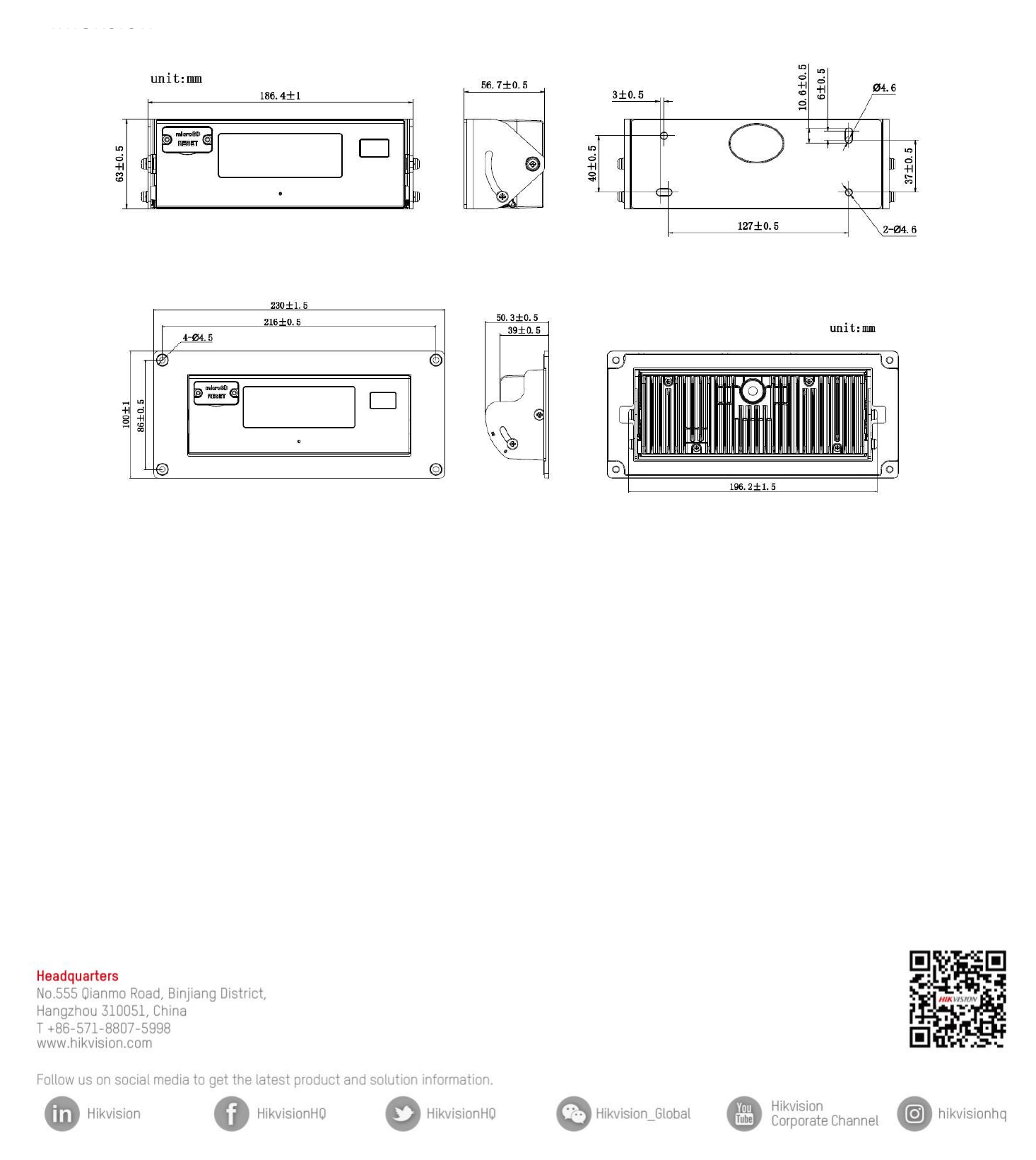

| Product Dimension | 230 mm × 100 mm × 50 mm (9.1" × 3.9" × 2.0") |
|---|
| 包裝尺寸 | 280 mm × 135 mm × 135 mm(11" × 5.3" × 5.3") |
|---|
| Product Weight | Approx. 640 g (Approx. 1.4 lb.) |
|---|
| 連包裝重量 | Approx. 960 g（Approx. 2.1 lb.） PoE: 0.24 A to 0.15 A, max: 8.5W DC: 0.95A to 0.24A, max 8.5W IMS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V) IS: DC 9 V to 36 V, PoE (802.3af, , 36 V to 57 V) IMS: Molex, M12-4F/S, 2 alarm channels, 485 IS: RJ45-F, DC-J, 2 alarm channels, 485 |
|---|
| Camera Material | Metal -30°C to 75° C (-22°F to 167°F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Reset, anti-flicker, heart beat,password protection, IP address filter English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech IMS: 4-core aviation plug, 300 mm IS: RJ45, 360mm CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） |
|---|
| EMC | RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: ICES-003 Issue 7:2020 KC: KN32:2015,KN35:2015 CB: IEC 60950-1 CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015 |
|---|
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863) |
|---|
| Electrical Safety Protection | IP66: IEC 60529-2013IK08: IEC 62262:2002 EN50155: EN 50155-2007,EN 50155-2017 |
|---|
| Automotive and Railway | EN45545: (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) Installation |
|---|
| Focal Length (mm) | Mounting Height (m) Max. Detection Span (m) Wiring |
|---|
| Modle | Interface Type Interface Form Interface Definition Interface Illustration 1.IPC_TX+ 2.IPC_RX+ M12 3.IPC_TX- 4.IPC_RX- 1.IPC_Power MOLEX 2.IPC_GND |
|---|
| IMS | 1.ALARM IN 1 2.GND Alarm 1 3.ALARM OUT 1 4.GND 1.ALARM IN 2 2.GND Alarm 2 3.ALARM OUT 2 4.GND 1.IPC_TX+ 2.IPC_TX- 3.IPC_RX+ |
|---|
| XM68 | 4.POE45 RJ45 5.POE45 6.IPC_RX- 7.POE78 8.POE78 Core:IPC_DC+ Shell:IPC_DC- 1.RS485_1- 485 2.RS485_1+ 1.ALARM IN 1 2.GND Alarm 1 3.ALARM OUT 1 4.GND 1.ALARM IN 2 2.GND Alarm 2 3.ALARM OUT 2 4.GND |
|---|
