| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light |
|---|
| 快門速度 | 1/3 s to 1/100,000 s Solar Cover：Pan: 0° to 358°, tilt: -40° to 40° Camera：Pan: 0° to 360°，tilt: -60° to 0° |
|---|
| 鏡頭類型 | Fixed focal lens, 4 and 6 mm optional |
|---|
| 光圈 | F1.0 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
|---|
| 鏡頭接口 | M16 4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m 6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m |
|---|
| 補光類型 | White Light Performance mode: up to 30 m Proactive mode: up to 10 m |
|---|
| 智能補光 | Yes 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) Main stream: H.265/ H.264 Sub-stream: H.265/H.264/MJPEG H.264+: Performance mode: main stream supports H.265+: Performance mode: main stream supports |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| SVC 分級編碼 | H.265 and H.264 support |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Password protection, complicated password, HTTPS encryption, IP address filter, |
|---|
| 安全 | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface, ISAPI, SDK, ISUP TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user |
|---|
| 網絡儲存 | Auto network replenishment (ANR) iVMS-4200, Hik-Connect, Hik-Central Proactive mode: Hik-Connect Plug-in required live view: IE 10+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ LTE-TDD: Band 38/40/41; LTE-FDD: Band 1/3/5/7/8/20/28; WCDMA: Band 1/5/8; GSM: band 3/5/8 |
|---|
| 標準 | LTE-TDD, LTE-FDD, WCDMA, GSM |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| PIR Angle | Horizontal: 100°, vertical: 80° |
|---|
| PIR Range | Up to 15 m |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Built-in 64 GB eMMC storage (50 GB avaible for recording) |
|---|
| 內置麥克風 | Yes |
|---|
| Built-in Speaker | Yes |
|---|
| 重設鍵 | Yes |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception, PIR Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email Power Consumption and Current: Typical power scenarios: 1.85 W (4 G working) Standby scenarios: 40 mW Max. power consumption: 7.2 W Power Supply: 12 VDC ± 25%, 40 W(deviation: ± 2 W) Solar panels *For debugging only Power Interfa |
|---|
| 儲存環境 | 0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|---|
| 一般功能 | heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter 0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|

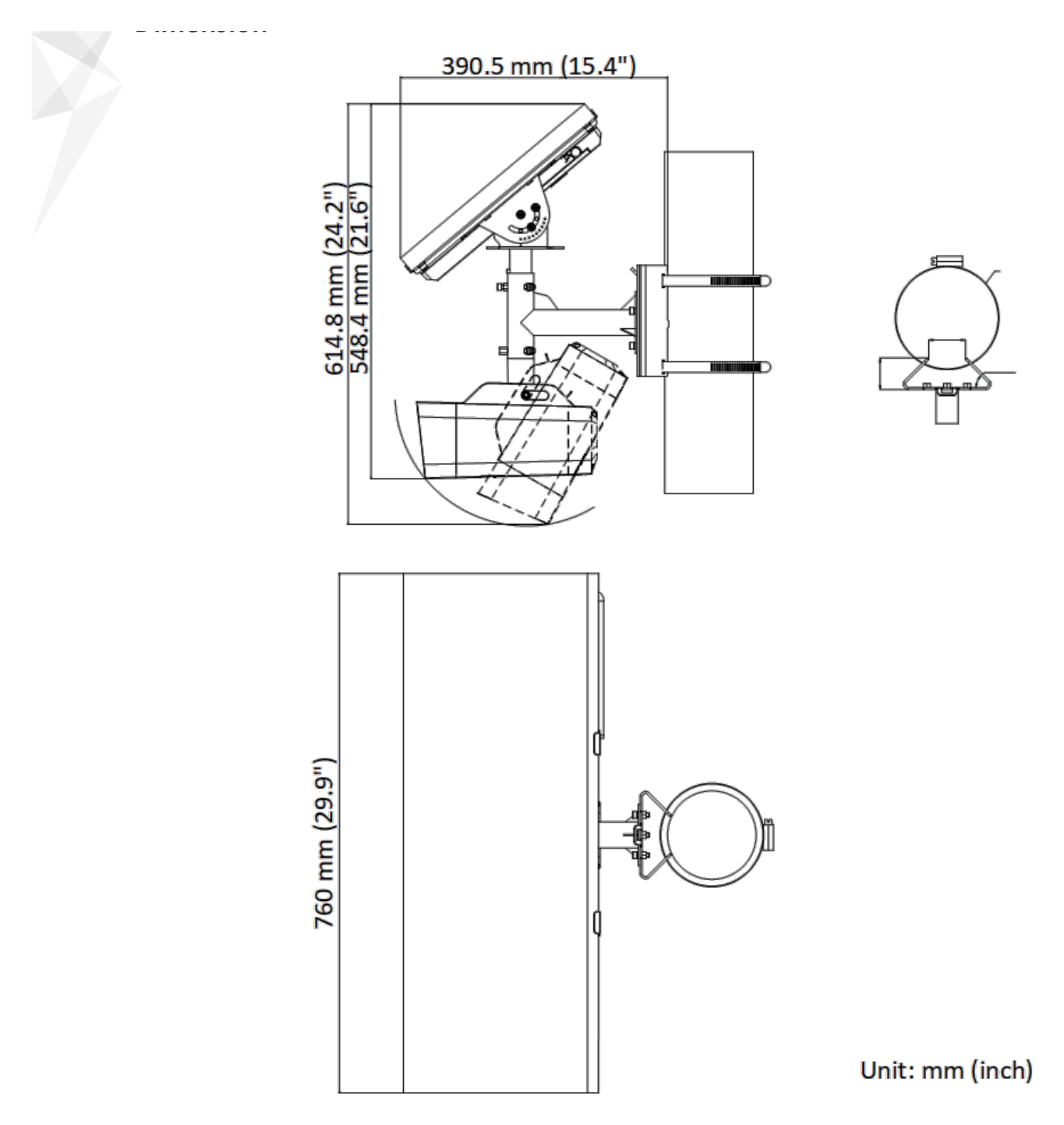

| 尺寸 | 614.8 mm × 390.5 mm × 760 mm (24.2" × 15.4" × 29.9") |
|---|
| 包裝尺寸 | 837 mm × 267 mm × 445 mm (33" × 10.5" × 17.5") Pre-install plate: approx. 1080 g (2.4 lb.) Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.) |
|---|
| 連包裝重量 | approx. 11860 g (26.1 lb.) |
|---|
| Battery Type | Ternary lithium |
|---|
| 容量 | 20.8 Ah |
|---|
| Max. Charging Voltage | 8.4 V Charge：0 °C to 50 °C (32 °F to 122 °F). Charging Condition: 0 °C to 50 °C (32 °F to 122 °F) (deviation: ± 5 °C) Discharge：-20 °C to 75 °C (-4 °F to 167 °F). Discharging Condition: -20 °C to 75 °C (-4 °F to 167 °F) (deviation: ± 5 °C) |
|---|
| Battery Voltage | 6.0 V to 8.4 V Performance mode: 2.5 day |
|---|
| Cycle Lifetime | Proactive mode: 4.5 day Standby mode: 24 days |
|---|
| Battery Life | More than 500 cycles CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); |
|---|
| RF | EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014) CE-LVD (EN 62368-1:2014/A11:2017) CE-RoHS (2011/65/EU); |
|---|
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP67 (IEC 60529-2013) |
|---|
